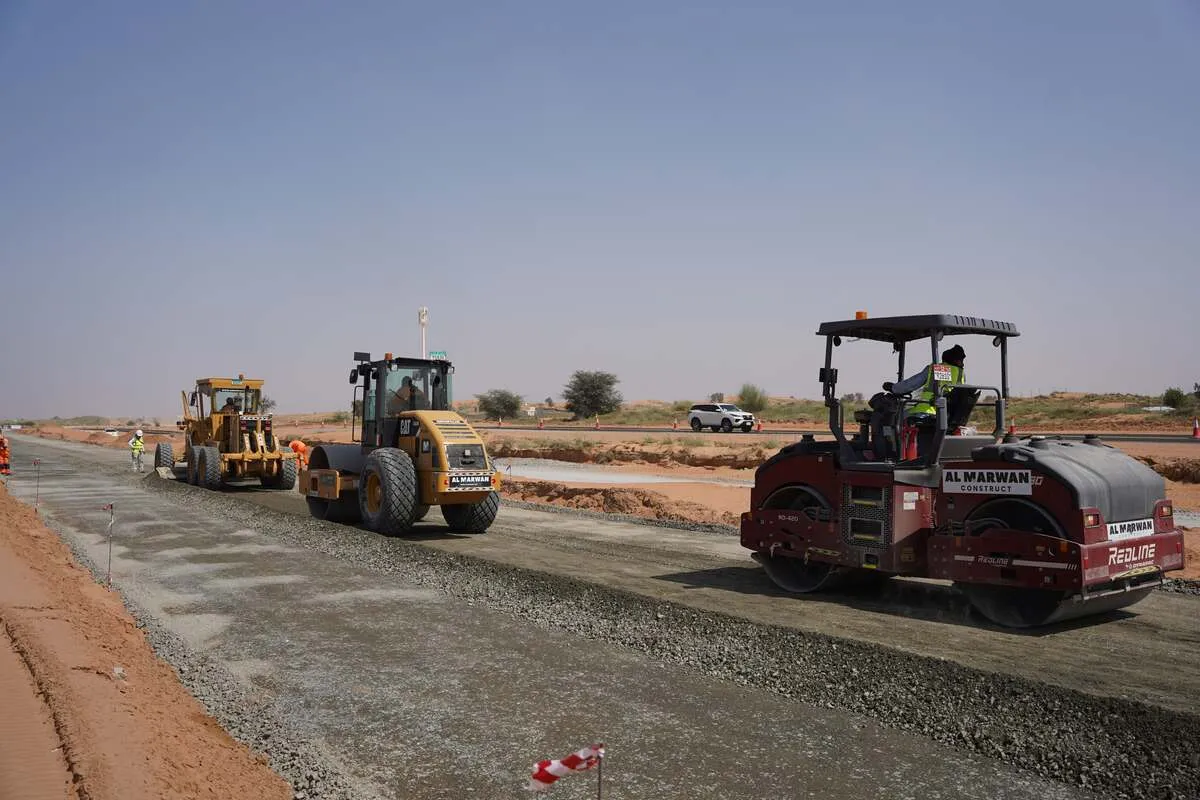

12 Compactor Types for Construction and Groundwork

Why does compaction matter? Compaction is essential in heavy construction to reduce air voids in the soil or asphalt, increasing density and strength. Proper compaction prevents settlement and ensures longevity. With different types of compactors for sale in the market, knowing their configurations can streamline your workflow and improve results.

12 Compactor you need for Construction and Groundwork:
Each compactor has a specific role, and knowing their functions helps achieve efficient, durable, and stable surfaces in heavy construction projects.

1. Single Drum Roller

A single drum roller is a powerful machine primarily used in earthwork projects. It features a large, heavy steel drum at the front and rugged rubber tires at the rear, offering excellent traction on uneven terrain. This type of roller excels in compacting loose soil, gravel, sand, and other granular materials, creating a solid base for roads, buildings, and large infrastructure projects.

Many single drum rollers come with vibratory functions that significantly enhance compaction efficiency by applying high-frequency vibrations to the ground such as the DRS120D roller from Dynapac Redline. This added force ensures deeper penetration into the soil, reducing air gaps and increasing density.

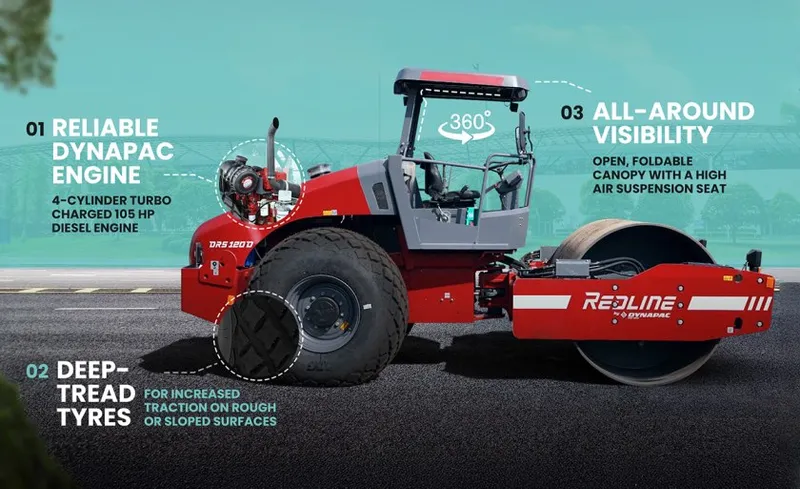

Check the standout features of the DRS120D roller:

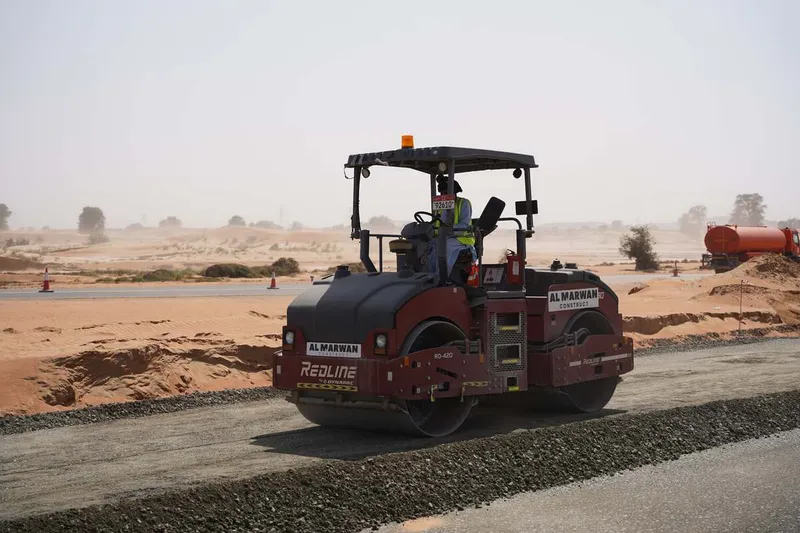

2. Double Drum Roller

A double drum roller, or tandem roller, is designed for asphalt compaction and smoothing surfaces. Unlike single drum rollers, it has two steel drums - one at the front and one at the rear - ensuring even pressure distribution across the entire contact area.

These rollers do not have rubber tires, which means they rely solely on their weight and vibration to compact surfaces effectively. Their primary function is to eliminate air voids in asphalt, increasing pavement strength and longevity. Since both drums are in constant contact with the ground, double drum rollers are best suited for flat, stable surfaces. Operators must be mindful of their traction, as these rollers can sometimes struggle on loose or steep terrain due to the lack of gripping tires.

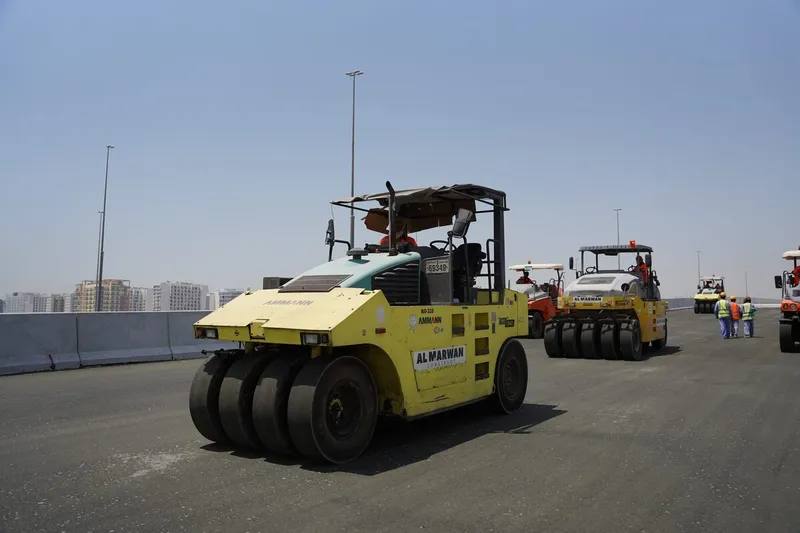

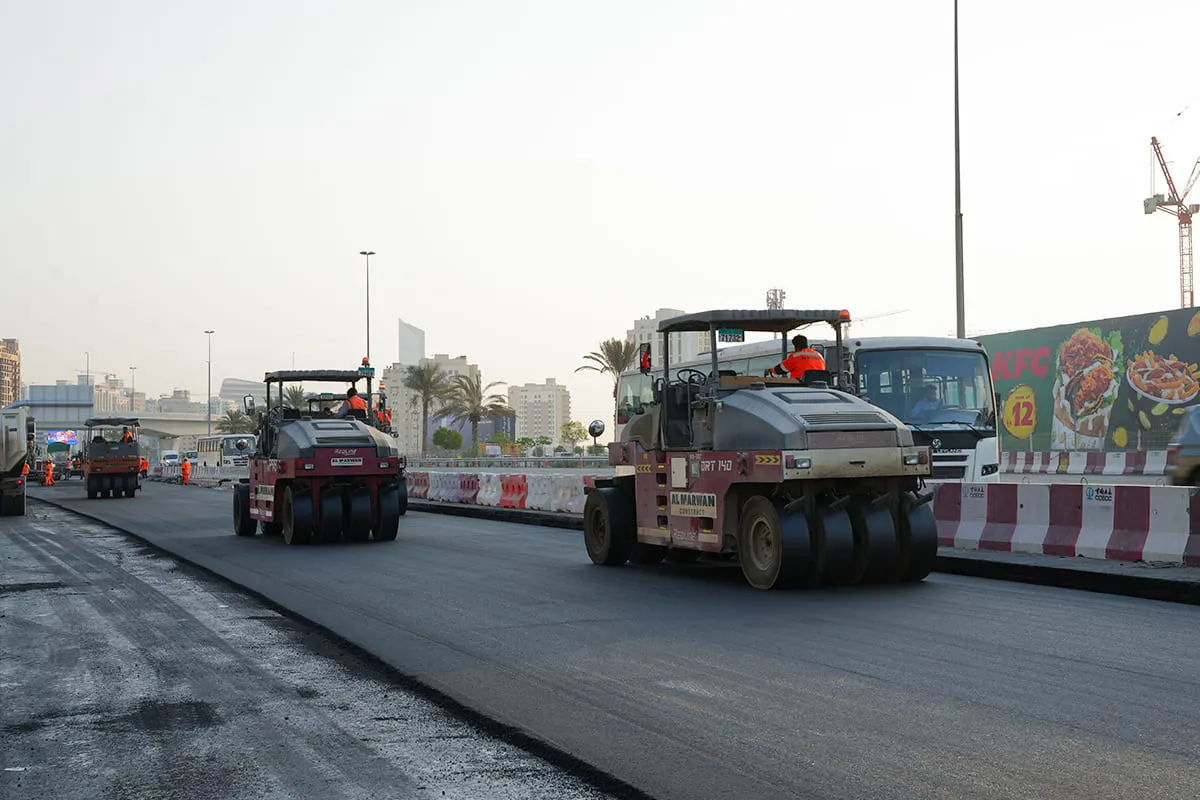

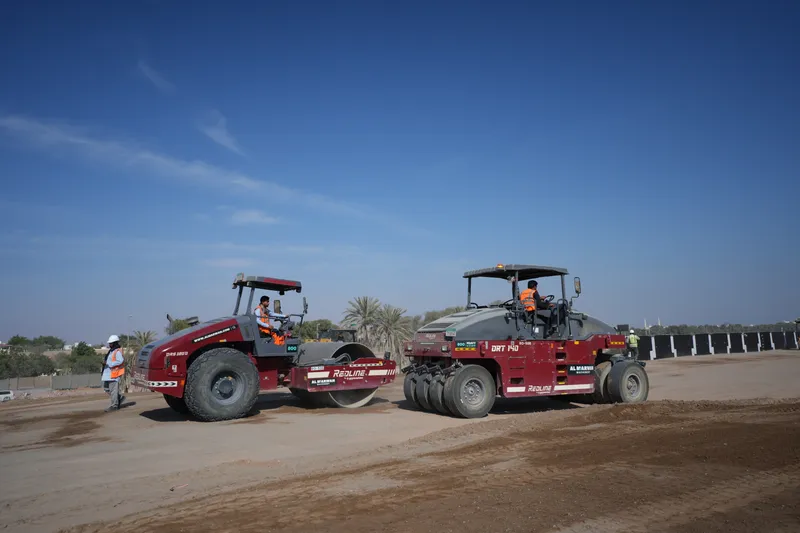

3. Pneumatic Tire Roller

A pneumatic tire roller (PTR) is a unique compactor that uses multiple rubber tires instead of solid steel drums. This design allows for flexible compaction as the tires can adapt to surface irregularities, making them particularly effective in finishing asphalt surfaces.

Unlike traditional drum rollers, pneumatic rollers provide a kneading action, which enhances bonding between layers and improves overall surface density. Additionally, their tire pressure can be adjusted to achieve different levels of compaction, making them adaptable to a variety of soil and aggregate materials. Pneumatic rollers are widely used in highway construction and large pavement applications, offering a final touch that extends the life of asphalt roads.

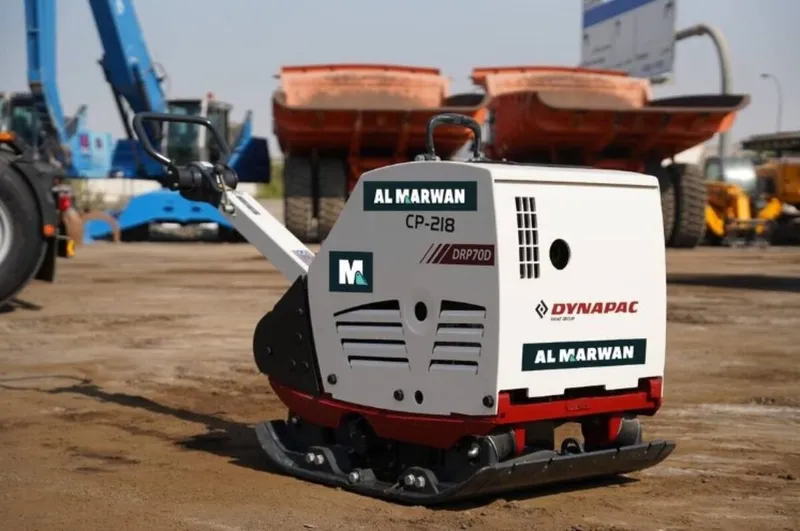

4. Plate Compactors

A plate compactor or soil compactor is a compact and highly efficient machine used for compressing granular materials such as sand, gravel, and crushed stone. It consists of a flat, heavy steel plate that vibrates rapidly, pushing particles closer together to create a firm and stable surface. Contractors often rely on plate compactors as a used construction equipment when preparing bases for sidewalks, patios, driveways, and paver installations. They come in various sizes, from small hand-operated models to larger reversible units that provide greater compaction force.

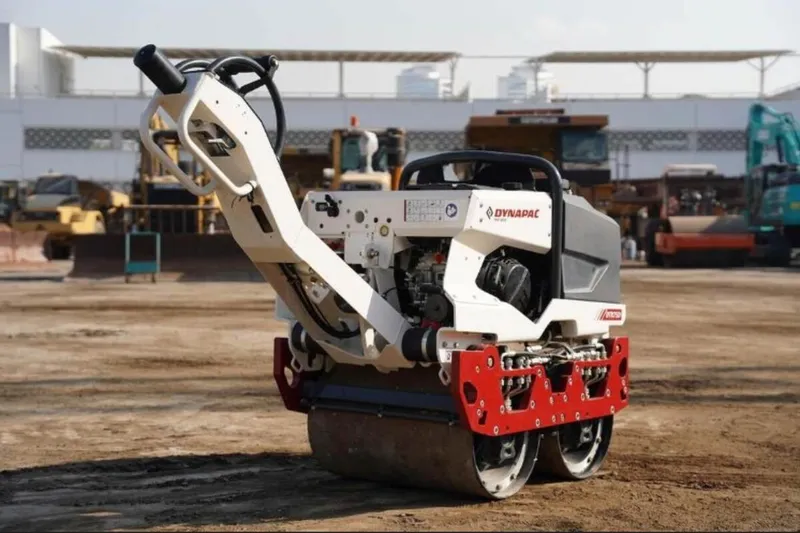

5. Walk-Behind Roller

A walk-behind roller is a small, manually operated machine that is often purchased as used construction machinery due to its durability, convenience and flexibility for compacting tight spaces. It typically features one or two steel drums and is often used in urban projects, driveways, and small construction sites. Some models come with hydrostatic drive systems, which allow for smooth operation and better control. Walk-behind rollers are a favorite among DIY enthusiasts who need a powerful yet compact solution for small-scale compaction work.

6. Ride-On Roller

A ride-on roller is similar in function to a walk-behind roller but is larger and features an operator’s seat for improved comfort and efficiency. These rollers are frequently used in roadwork, sub-base compaction, and commercial paving projects. Their size allows them to handle larger areas quickly while still being small enough to work in confined spaces.

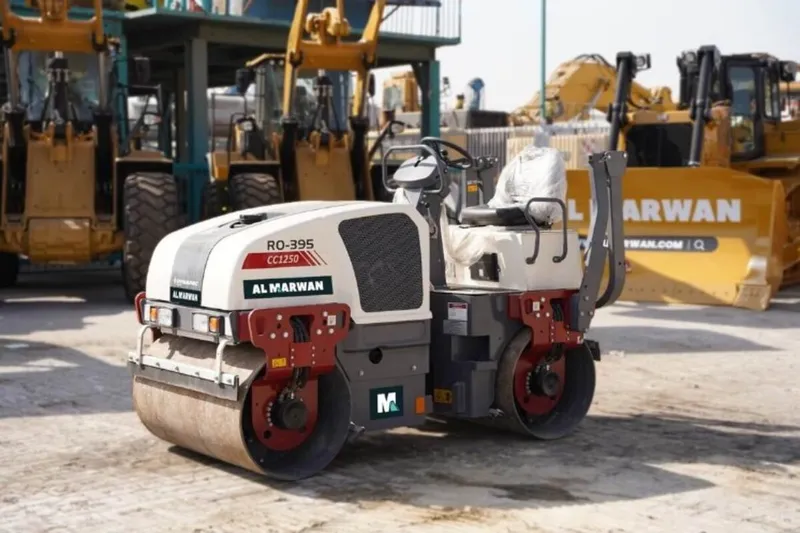

Some models have articulated steering like the Dynapac CC1250 roller, which enhances maneuverability around obstacles. Ride-on rollers often come with vibratory options that increase compaction power, making them suitable for compacting a wide range of materials, including asphalt, soil, and aggregates, and they are great for bridging the gap between small walk-behind models and full-sized road rollers.

7. Trench Roller

A trench roller, also known as a trench compactor, is a specialized machine designed for compacting soil in narrow trenches. These rollers are commonly used in pipeline construction, utility installations, and foundation work. Many trench rollers are operated via remote control, allowing operators to work from a safe distance, and reducing the risk of accidents in deep excavation areas. They often feature padfoot drums, which improve traction and compaction efficiency in cohesive soils like clay.

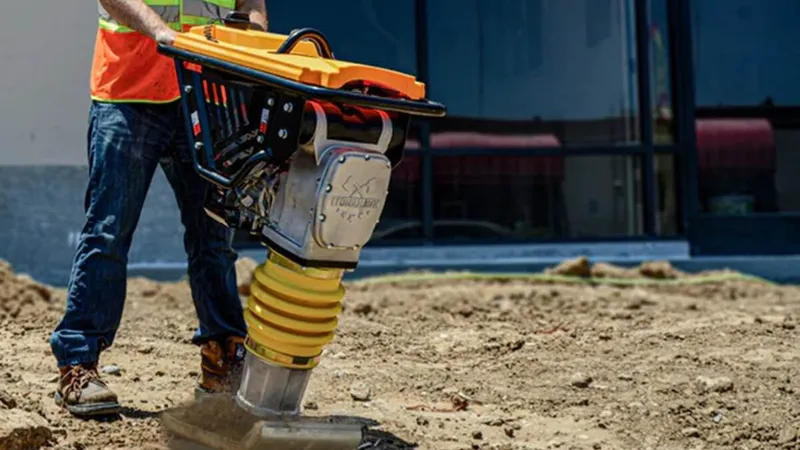

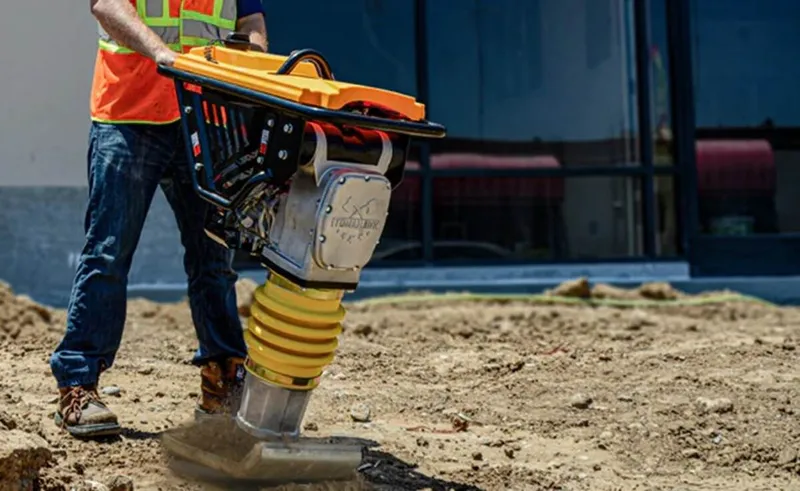

8. Rammers

A rammer sometimes called a jumping jack compactor or a tamper, is a handheld machine that delivers powerful impact force to compact soil in tight spaces. Unlike vibratory plate compactors, rammers use a high-frequency pounding motion to drive soil particles closer together, with frequencies reaching up to 12 Hertz, as seen in the Dynapac DR8D vibratory rammer, this makes them particularly effective in compacting cohesive soils, such as clay and silt, which require greater force to eliminate air pockets.

9. Padfoot Drum Roller

A padfoot drum roller is a variation of the single drum roller that features raised rectangular "pads" on the drum’s surface. These pads provide increased compaction force and are particularly effective in compressing cohesive soils like clay and silt. The pads help break up the soil structure, ensuring better density and stability.

10. Grid Roller

A grid roller is a type of compactor that features a heavy steel drum with a grid-like pattern. These rollers are primarily used for compacting coarse, rocky materials and crushing large stones. Unlike smooth drum rollers, grid rollers allow fine particles to fill voids between larger aggregates, creating a stable base.

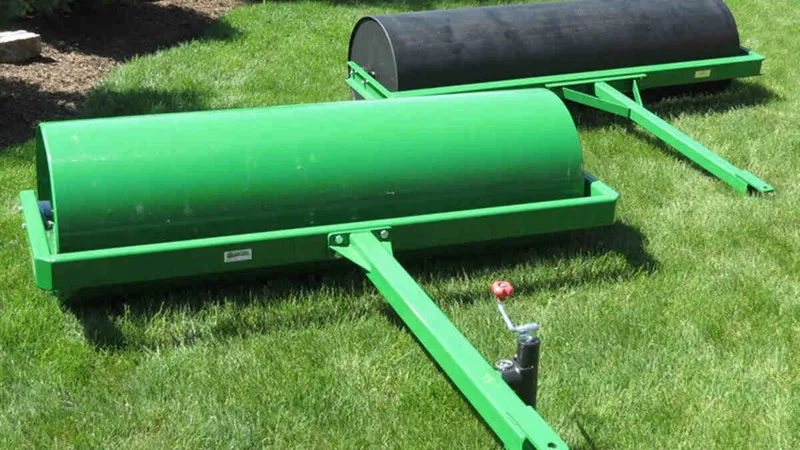

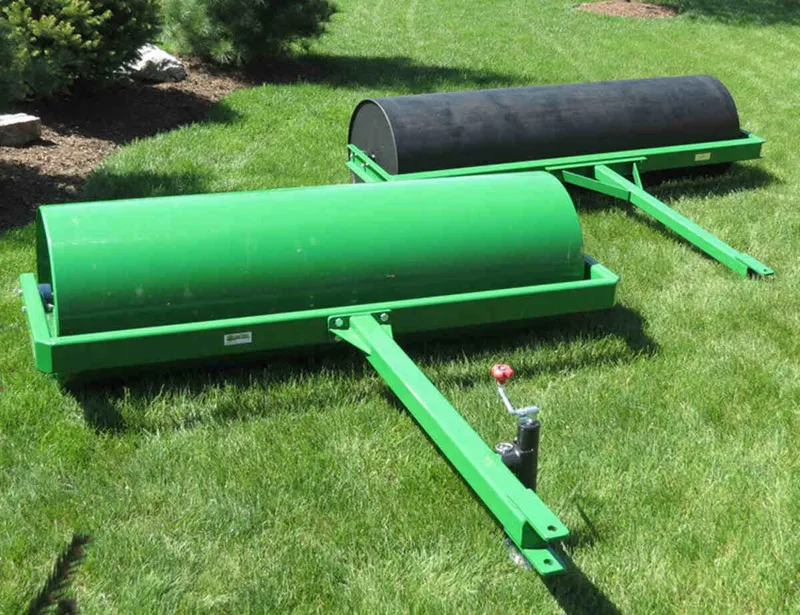

11. Lawn Roller

A lawn roller is a small compactor specifically designed for landscaping and gardening applications. It is commonly used for leveling soil, compacting sod, and preparing seedbeds. Lawn rollers are lightweight and can be filled with water or sand to adjust the weight as needed. These rollers help create smooth, even surfaces in gardens and sports fields.

12. Track Roller

Track rollers feature a front drum but replaces wheels with continuous tracks, improving stability and traction on uneven or loose surfaces. This design distributes weight more evenly, preventing sinking and enhancing deep compaction.

Overview of compactor types, their compaction widths, and main applications:

Understanding the different types of compactors is essential for selecting the right heavy machine for the job. Compactors for sale available for road construction, are different from the ones for landscaping, or deep soil compaction. Investing in the right heavy equipment improves efficiency and reduces long-term maintenance costs. For businesses looking to optimize their budget, quality used construction equipment can deliver reliable compaction results while reducing costs, making it a smart choice for contractors and project managers.
