Parts That Make Lattice-Boom Crawler Cranes Heavy-Lifting Legends

Towering over construction sites, crawler cranes are a familiar sight in the world of heavy lifting.
These remarkable machines, with their immense lifting capacities and unique tracked mobility, are the backbone of countless large-scale construction projects. Unlike their stationary crane counterparts, crawler cranes possess the distinct advantage of maneuverability. Their robust tracks allow them to navigate uneven terrain and conquer challenging job sites making them the go-to choice for a wide range of applications.
There are different types of crawler cranes. Each model is suited for specific tasks. This article focuses on lattice boom crawler cranes, a common and versatile type known for their impressive lifting capacities and ability to handle uneven terrain. These cranes vary by lifting capacity ranging from the more maneuverable 55 ton cranes, robust 300 ton cranes, and even giant 600 ton cranes.

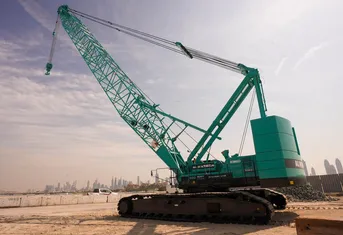

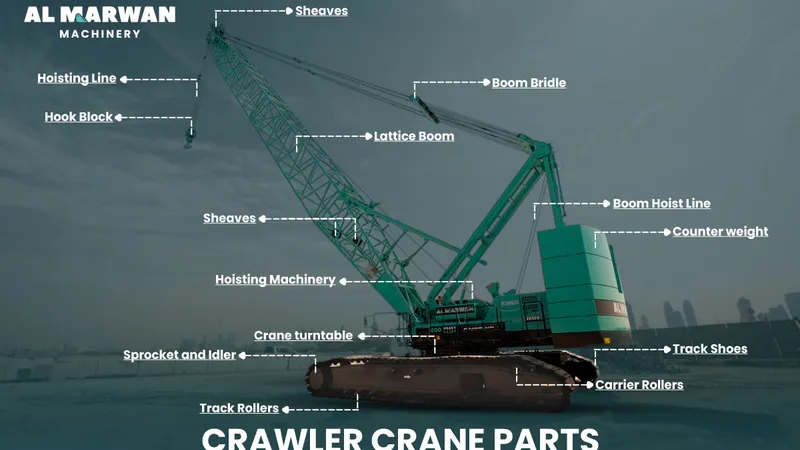

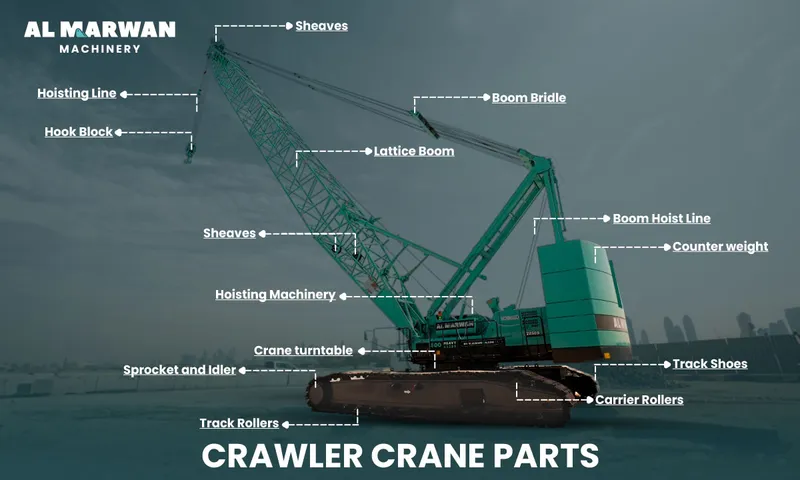

But what exactly makes these giants tick? Let's embark on a journey to explore the essential parts of a lattice-boom, using a kobelco cranes as an example, and understand how they achieve the awe-inspiring feat of lifting colossal weights.

The Foundation of Stability: The Crawler Undercarriage

Starting from the undercarriage and base of a crawler crane, often simply called the 'crawler,' this is no ordinary set of wheels. This robust undercarriage boasts a set of continuous tracks that distribute the crane's weight evenly across the ground. This unique design grants crawler cranes exceptional stability, allowing them to operate on uneven terrain and lift massive loads without tipping over.

The crawler undercarriage itself comprises several key components, including:

-Track Shoes: Durable steel segments that form the tread of the tracks, ensuring smooth movement and providing traction on various surfaces.
-Track Rollers: Rollers that support the track shoes, facilitating smooth movement.
-Sprocket and Idler Wheels: The drive sprockets at the front engage the tracks, propelling the crane forward or backward. The idler wheels at the rear maintain tension in the tracks.
-Carrier Rollers: Additional rollers positioned along the underside of the tracks for further support and smoother travel.

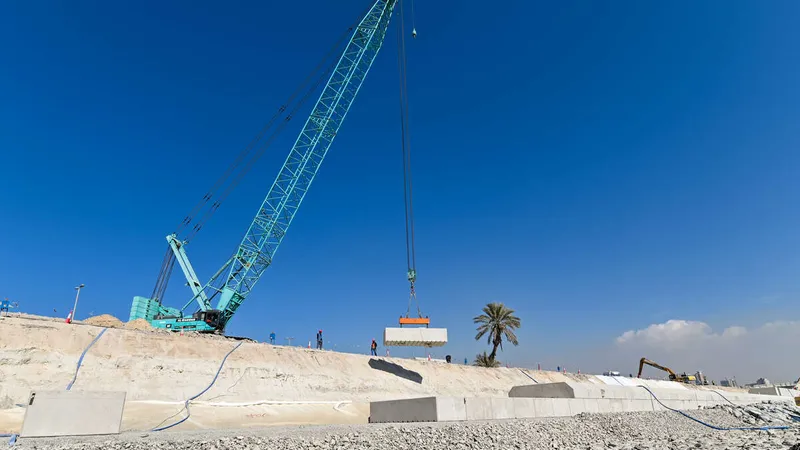

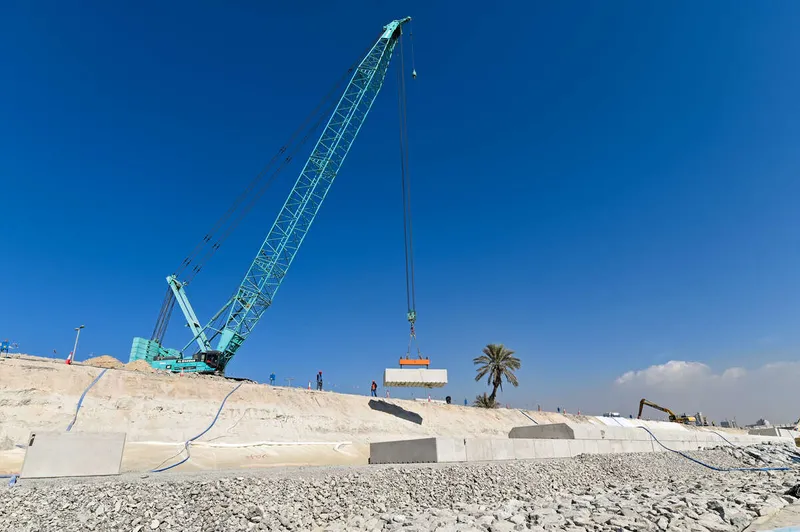

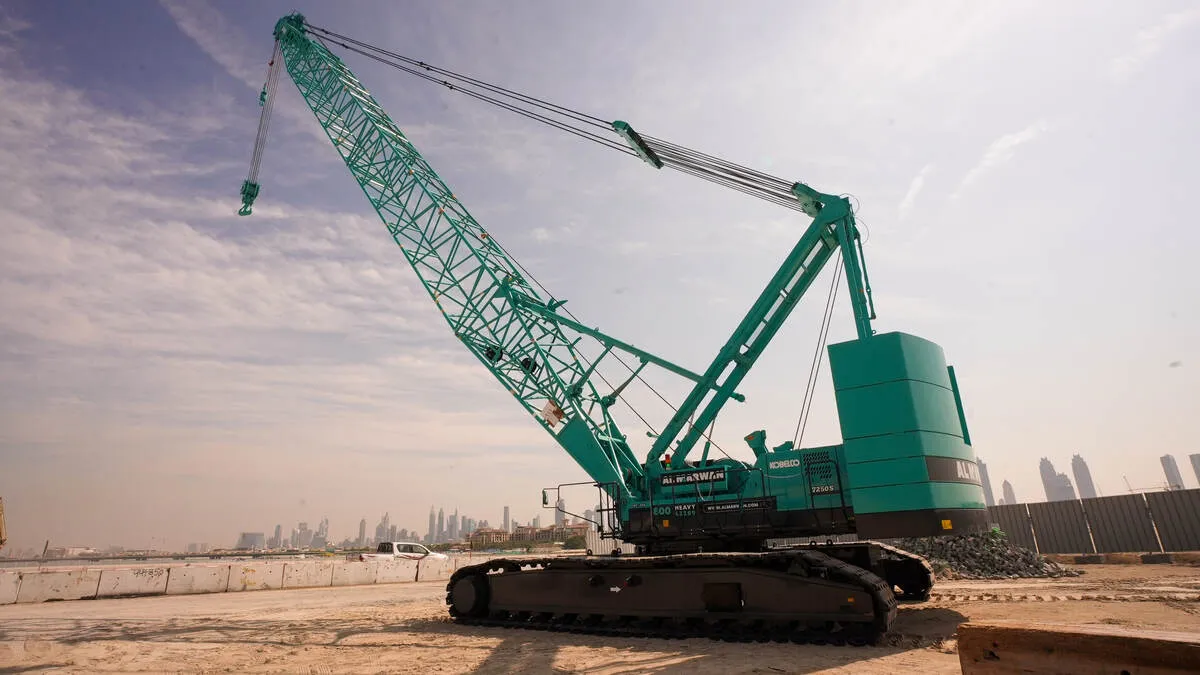

The Powerhouse Above: The Superstructure

Atop the crawler base sits the crane's superstructure, a complex structure that houses several critical components:

-Lattice Boom: A common boom design for crawler cranes, featuring a lightweight yet robust structure built from interlocking steel sections resembling a lattice.
-Jib (Optional): An additional attachment sometimes used with the boom to provide further horizontal reach.
-Hoisting Machinery: This system, housed within the superstructure, powers the lifting and lowering of loads. It consists of a powerful winch drum, a wire rope, and a hoist motor. The brakes within this system control the lowering of the load and prevent accidental freefall.
-Counterweight: Heavy steel blocks situated at the rear of the superstructure. These counterweights act as a crucial balance to the weight of the load being lifted, preventing the crane from tipping over. The weight of the counterweight can be adjusted depending on the lifting capacity needed.

While the core components listed above form the backbone of a crawler crane, several additional parts contribute to its functionality:

-Main Coil Wire Rope (Hoisting Line): This is the high-strength steel cable that runs from the hoist drum up through the boom and hook block, and ultimately bears the weight of the lifted object.
-Hook Block: A set of multiple sheaves housed within a block attached to the boom's end. These sheaves help distribute the load on the wire rope and increase lifting capacity.
-Crane turntable: Crane turntables are robust platforms designed to rotate lifted objects through a full 360 degrees (or a designated range). They integrate seamlessly with various crane systems, enhancing their functionality by providing precise horizontal maneuverability. This allows for safe and efficient positioning of loads, easier alignment with work areas, and streamlined handling of bulky or awkwardly shaped objects. Crane turntables, in essence, significantly improve lifting versatility and operational efficiency.

Other crane parts include:
-Sheaves: Grooved wheels that guide the wire rope smoothly as it travels between the hoist drum and the hook such as the Jib Tip Sheave or the Idler Sheaves.
-Back Rope Pulley Set (Boom Bridle): This is a set of sheaves at the boom tip that changes the direction of the hoisting line, allowing for greater lifting capacity. It's also sometimes referred to as the boom tackle.
-Boom Hoist Line: This is the wire rope that raises and lowers the entire boom assembly. It typically runs from a winch to the underside of the boom and through a set of sheaves.

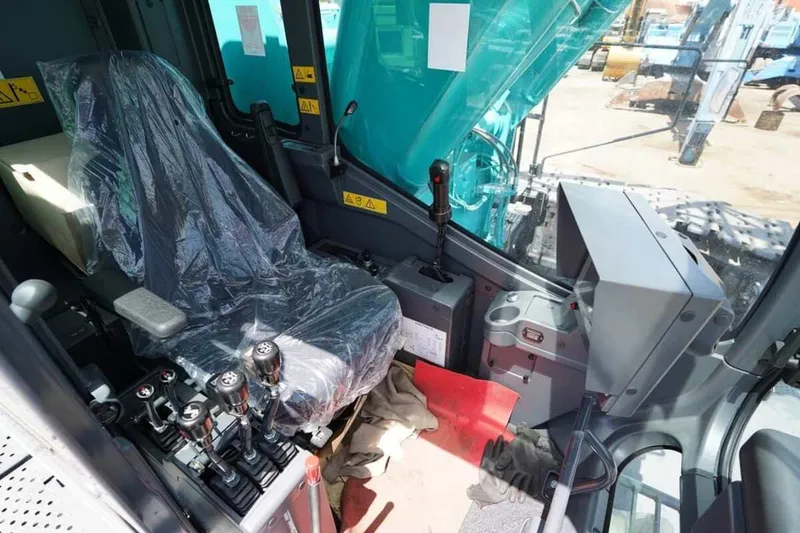

Precision and Control: The Operator's Cabin and Control Systems

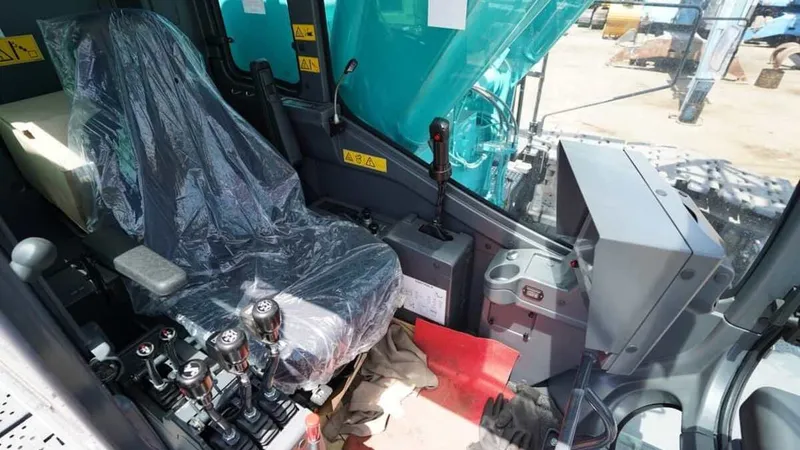

Now, let's move to the nerve center of the crane operation: the operator's cabin and control systems. Modern cabins are ergonomically designed for operator comfort and provide a clear view of the work area. Inside the cabin, a sophisticated control system allows the operator to precisely maneuver the crane:

-Joysticks and Levers: Controls that allow the operator to precisely manage the movement of the boom, hoist, and the entire crane body.
-Computerized Monitoring Systems: Advanced electronic displays that provide vital information to the operator, such as load weight, boom extension, and crane stability.
-Safety Features: Crawler cranes incorporate a multitude of safety features like overload protection systems and emergency shut-offs to ensure safe operation.
-Power Source: The crane's control systems are typically powered by a diesel engine or electric motor.

The Power of Teamwork

The impressive achievements of a crawler crane aren't just the work of individual parts. These machines operate as intricate systems, each component seamlessly interlocking to achieve remarkable feats. Skilled crane operators, along with qualified riggers and signalers, are the human masterminds behind these titans' safe and efficient operation. Their work, from meticulous planning to precise execution, is a testament to human ingenuity and teamwork. But to maintain this peak performance, access to expert mechanics and workshops stocked with OEM parts becomes crucial. This ensures your crawler cranes are always in top condition, ready to tackle any challenge.

The Indispensable Crawler Crane

Crawler cranes, with their robust design, powerful lifting capacities, and intricate interplay of parts, are the undisputed champions of heavy lifting. From towering wind turbines to colossal bridge sections, these remarkable machines play a vital role in shaping our modern world.

Understanding the essential parts of a crawler crane allows for a greater appreciation of the engineering marvel it represents. The sturdy base that conquers uneven terrain, the powerful boom reaching out with precision, and the operator's skilled control all combine to create a machine that is both awe-inspiring and essential for the construction industry.

So the next time you witness a crawler crane gracefully lifting a massive object, remember the symphony of parts and the skilled teamwork that make such feats possible. These unsung heroes of construction are truly lifting legends.

Curious to see the different configurations and capabilities of crawler cranes? Explore our selection of Kobelco crawler cranes, and more, and discover the perfect match for your next project!
