Why Crawler Cranes Outperform Mobile Cranes on GCC Mega Projects

Mega projects across the GCC don’t fail because a lift was “hard.” They fail because the site reality punishes the wrong crane choice, slow moves, unstable pads, wind stoppages, constant reconfiguration, and a schedule that can’t afford downtime.

Mobile crawler cranes are brilliant when the job is short, access is easy, and the ground is predictable. But once you enter the GCC mega-project world, industrial plants, refineries, ports, heavy infrastructure, and long-duration civil packages, the performance gap becomes obvious.

The Problem: Mega Projects Create “Crane Stress” That Mobile Units Feel First

On paper, a mobile crane looks like the fastest answer:

• Drive in, set outriggers, lift, drive out.
• Minimal assembly time.
• Flexible for scattered small tasks.

But mega projects aren’t “one lift.” There are thousands of lifts under real constraints:

1) Ground conditions don’t forgive high point loads

Many GCC sites involve reclaimed land, compacted fill, sand, or staged earthworks. Outriggers concentrate the load into small contact points. That forces you into expensive groundwork: mats, engineered crane pads, constant geotech checks, and sometimes rework if the pad settles.

Crawler cranes' special design helps distribute loads through tracks, improving stability and reducing the dependency on perfect pad conditions (you still need ground bearing checks, but the risk profile is different). General industry comparisons consistently highlight this stability advantage for crawlers over wheeled mobiles.

2) Mega projects punish reconfiguration time

Mobile cranes often need frequent repositioning and outrigger resets. On large industrial sites, each move can mean:

• permit-to-work updates
• route clearance
• exclusion zone changes
• setup + level + test lifts
• re-rigging due to reach changes

That “small” overhead becomes a daily schedule tax.

Crawler cranes are built for repeated lifts over longer durations, with easier on-site crawling between picks (within engineered paths).

3) Wind and radius discipline becomes make-or-break

GCC projects routinely face seasonal winds, coastal gusts, and wide open sites. When you’re lifting large surface area loads (modules, vessels, long steel sections), stability margins matter. Crawlers, with their mass and footprint, typically offer a calmer lifting platform at demanding radii, especially when the work is continuous and heavy.

4) Heavy modules and industrial components are not “mobile crane territory.”

Yes, some all-terrain mobiles can lift big numbers, until radius, boom length, or ground limits reduce the chart. Mega projects are full of loads that are heavy and awkward:

tall towers
process modules
large heat exchangers
bridge segments and precast packages

That’s exactly why crawler cranes distinguish themselves in the planning room, compared to telescopic cranes or other crane types.

The Solution: Use Crawler Cranes as the “Production Crane” on Mega Projects

If the problem is repeated heavy lifts, variable ground, and schedule pressure, the solution is simple:

Choose crawler cranes as your primary production cranes, and then use mobile cranes as support units for quick service lifts.

Here’s why this works so well in the GCC.

1) Stability that protects productivity

Crawler stability is not just a safety story; it’s a throughput story.

A stable platform means:

• fewer stoppages for re-leveling
• fewer pad repairs
• less “nervous” lifting in marginal conditions
• more confidence to keep the plan moving

That reliability is the difference between a crane that “can lift” and a crane that delivers lifts every day.

2) Better performance across long project durations

Mega projects don’t need a crane for a weekend; they need it for phases.

Crawler cranes are designed to stay on site, handle repetition, and perform day after day. That’s why crawlers are often described as the better match when lift frequency is high and the project is long-running.

3) Reduced dependency on perfect access roads

Mobile cranes need road-quality access and space for outrigger deployment. On evolving sites (especially early works), access changes weekly.

Crawlers can operate where the site is still “becoming”, as long as lift paths are engineered and ground bearing is validated.

4) Real-world GCC proof: heavy-lift packages select crawlers

When high-stakes industrial lifting happens in the region, crawler cranes are repeatedly chosen.

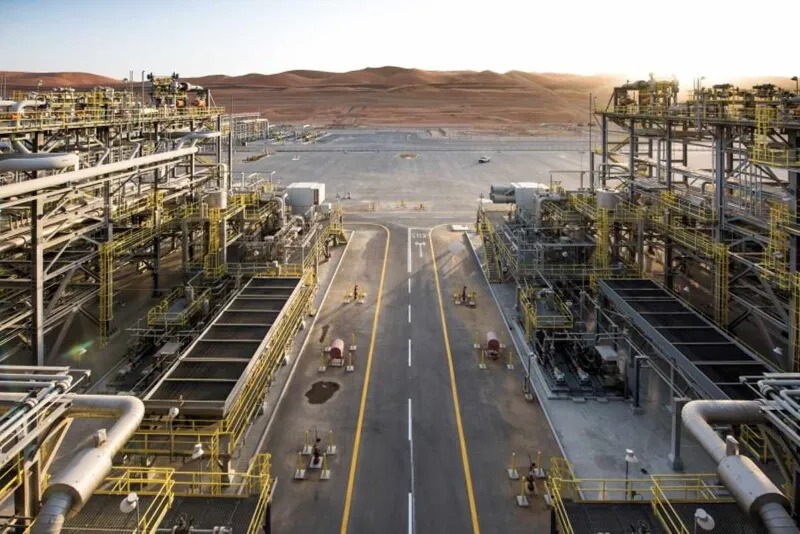

At the Jafurah gas development, heavy lift specialists were contracted for large-scale rigging and installation work, exactly the type of environment where crawler cranes and engineered heavy lifting dominate planning.

In Jubail, a milestone lift at the Amiral Project reported a crawler crane executing an extremely heavy tower installation, another example of crawler cranes being positioned as the “main lifting equipment” for major industrial components.

(You don’t need a 4,000-ton class crawler to understand the lesson: when lifts become critical-path, crawlers become the default answer.)

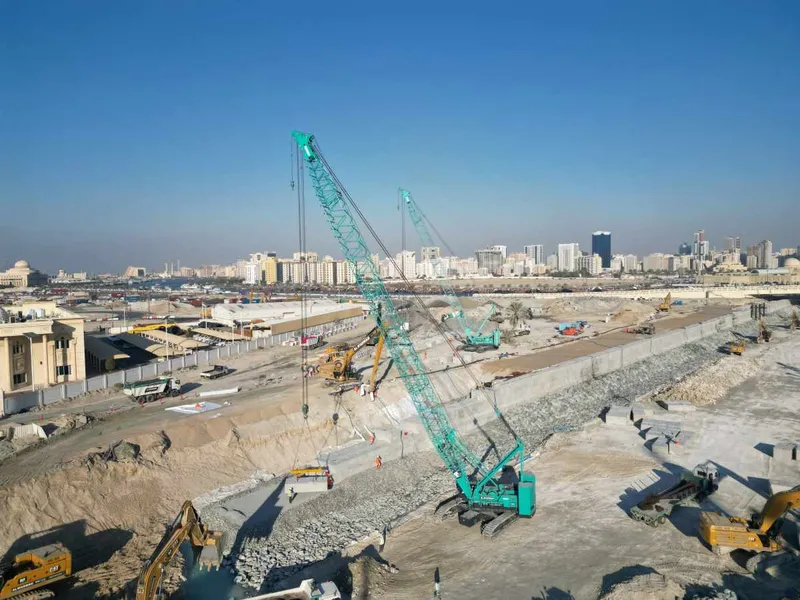

Where Kobelco Crawler Cranes Fit: Built for Heavy Cycles, Not Just Peak Lifts

On GCC sites, buyers and project teams usually care about three outcomes:

1. lift certainty (can we do the lift at the required radius?)
2. operational continuity (can we keep lifting tomorrow?)
3. service support (can we avoid downtime and get parts fast?)

That’s why Al Marwan Machinery positions Kobelco crawler cranes as a strong match for regional mega-project realities, especially for contractors who want production performance and dependable support.

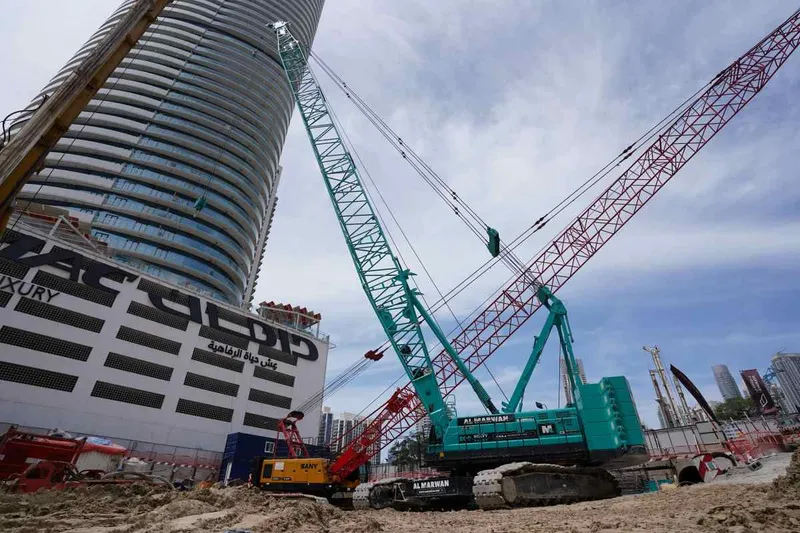

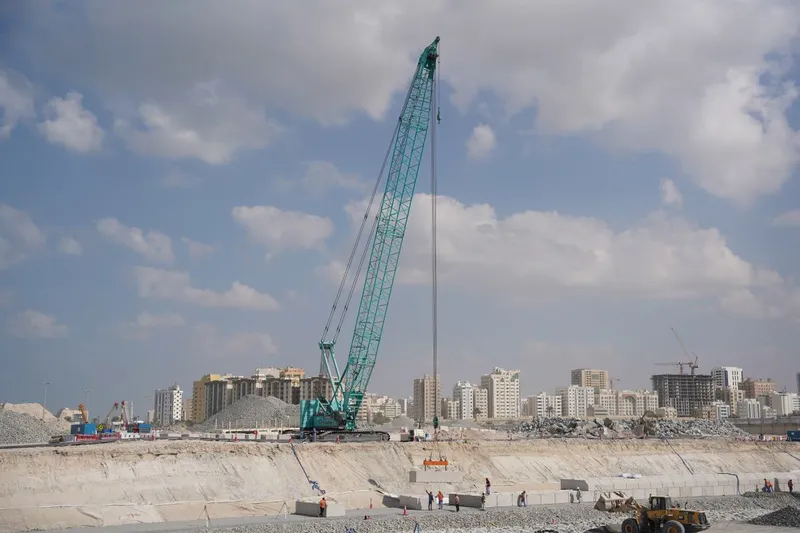

On Al Marwan’s listings, you can see Kobelco crawler crane capacity ranges and model availability used for large jobsite demands (including higher-capacity units such as CKS series and 7250S crawler crane class offerings with 250 t x 4.6 m lifting capacity).

How to Choose: A Practical Mega-Project Crane Strategy

If you’re planning a mega project package, a proven approach is:

• Crawler cranes for: heavy modules, long-duration structural work, repeated picks, large radii workflows
• Mobile cranes for: quick service lifts, scattered light-to-mid picks, short-duration tasks where speed matters

This “two-crane logic” protects your schedule. The crawler becomes your production backbone; the mobile unit becomes your agile support.

Mega Projects Don’t Need “A Crane.” They Need a Lifting System.

On GCC mega projects, crawler cranes outperform mobile cranes for one reason: they’re engineered for the exact pressures mega projects create, ground variability, repeated heavy lifting, demanding radii, and long-duration production.

If your site is entering that zone, treat crawler capacity as a strategic decision, not a line item.

Build Your Lift Plan with Al Marwan’s Kobelco Crawler Crane Team

Whether you need crawler crane for rent, want to rent crawler crane capacity for a critical phase, or you’re evaluating crawler cranes for sale (including used crawler crane for sale), Al Marwan Machinery can help you match the right Kobelco crawler crane to your lift studies, site conditions, and timeline, so your project keeps moving when the lifts get serious.

FAQs

Q1: Why do GCC mega projects create “crane stress” for mobile cranes?

Because they involve repeated heavy lifts, shifting site access, tough ground, and long schedules. Mobile cranes face more setup and repositioning pressure.

Q2: How do mobile crane outriggers add hidden groundwork costs?

Outriggers concentrate loads on small points, often requiring crane mats, steel plates, or reinforced pads, especially on sandy or reclaimed GCC sites.

Q3: What is the daily “schedule tax” of mobile cranes?

It is the time lost in relocating, leveling, setting outriggers, updating exclusion zones, and repeating safety checks before each new lift.

Q4: Why do GCC winds affect mobile cranes more?

Crawler cranes usually offer a wider footprint and stronger stability, making them better suited for large loads in coastal or open-site wind conditions.
