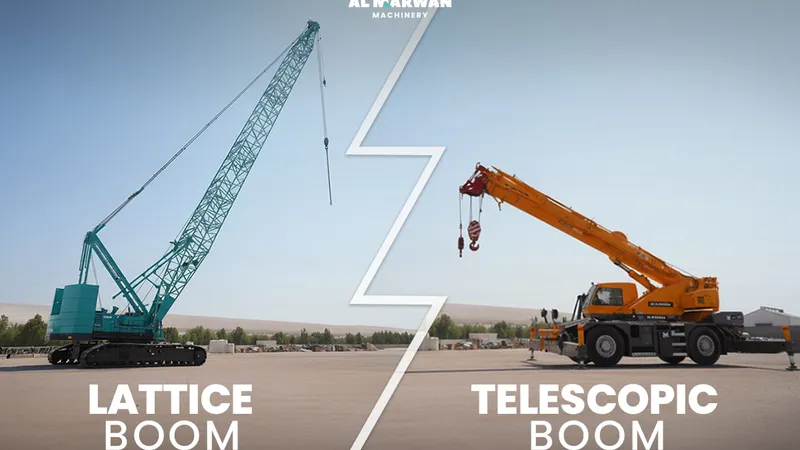

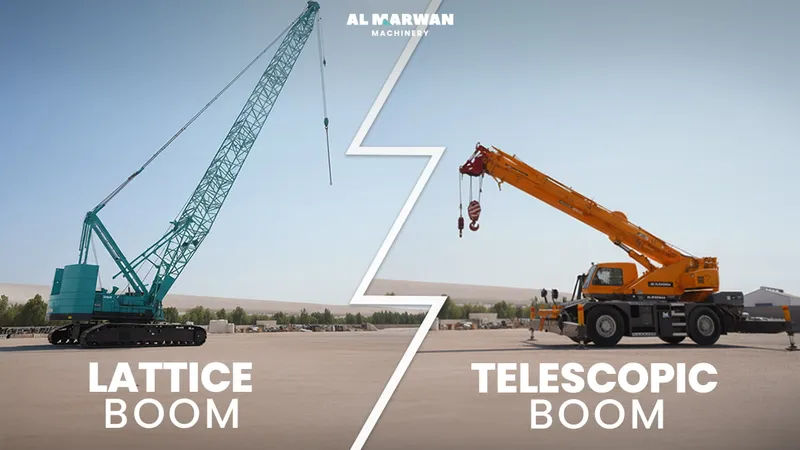

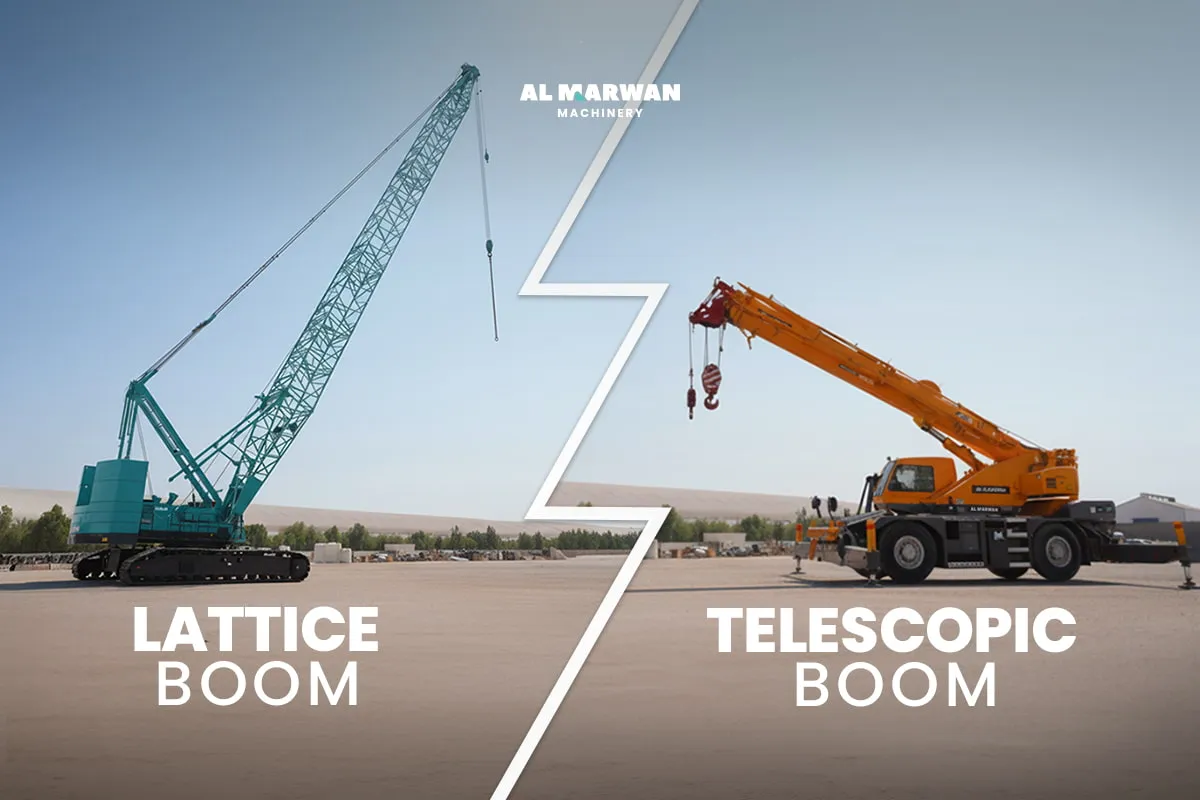

Lattice Boom Crawler Crane vs. Telescopic Crane Boom

If you’re sizing up cranes for a project, you’ll quickly run into two very different boom configurations: the lattice boom crawler crane and the Telescopic crane Boom. Both lift heavy loads but they shine in different environments, with different setup requirements, owning costs, and operational advantages.

At Al Marwan Machinery, we help contractors choose the right configuration for safety, productivity, and lifetime value. We are the official dealer for Kobelco crawler cranes in the GCC and Middle East. These are classic lattice boom machines known for efficiency on large, long-duration jobs and we also supply mobile cranes with telescopic booms for fast-moving works that demand rapid setup and mobility.

Below is your practical, deep-dive guide to both boom types: how they’re built, what they can (and cannot) do, and when to pick one over the other.

Quick Definitions (So We’re Aligned)

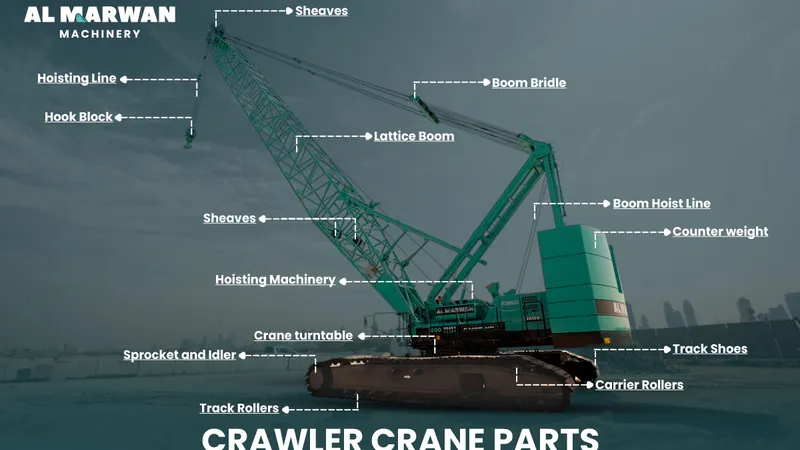

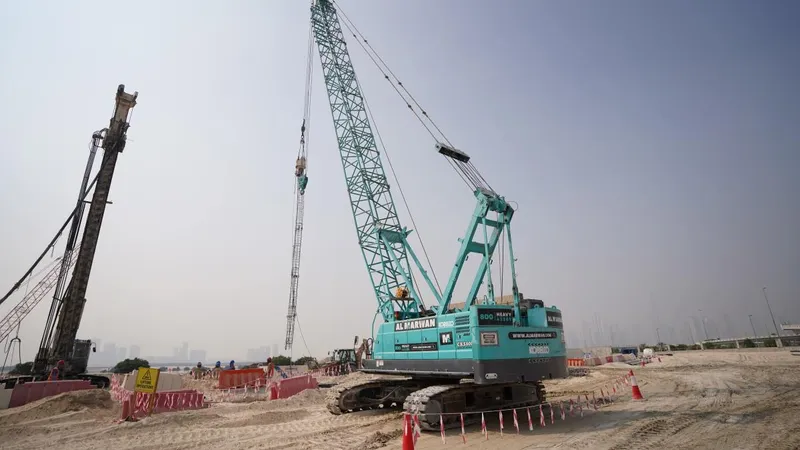

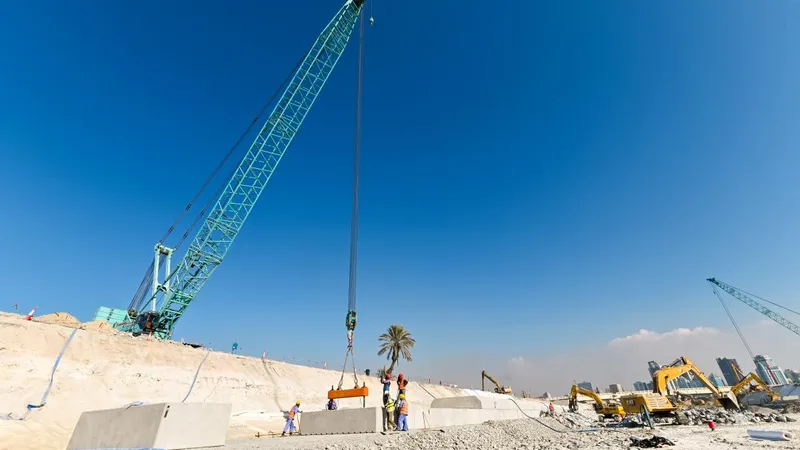

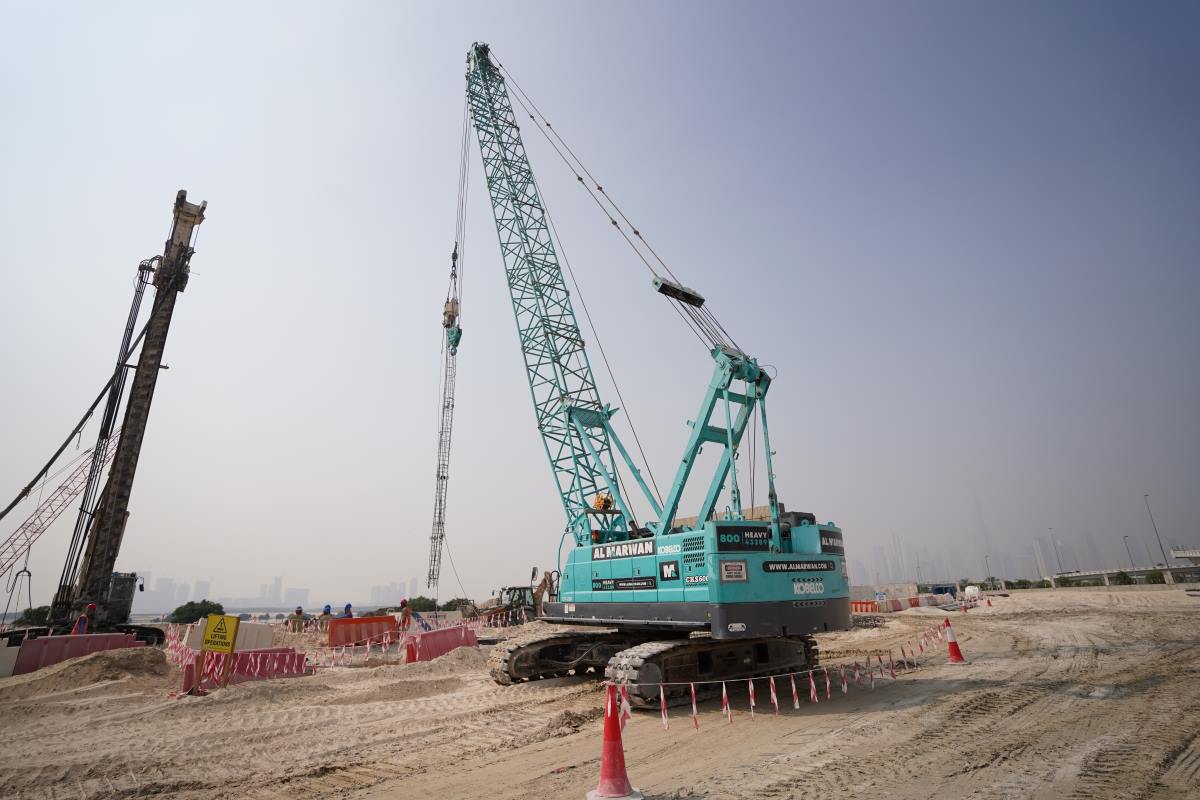

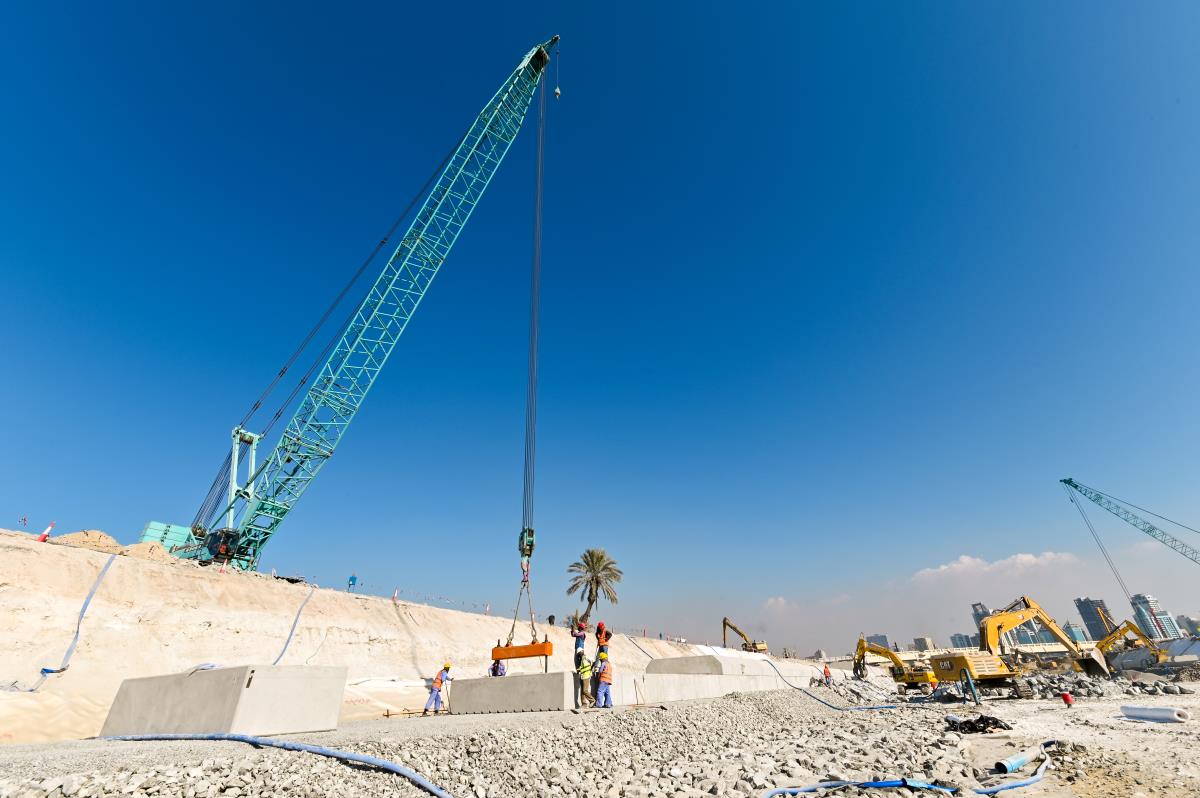

Lattice Boom crawler crane

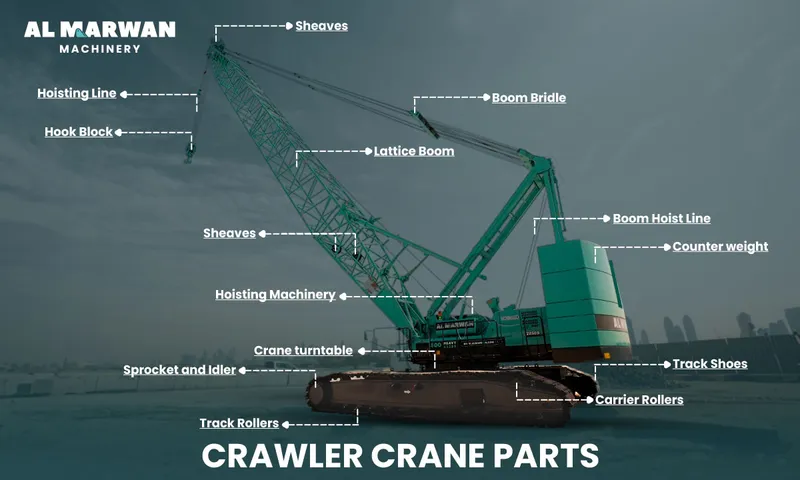

A crane with a truss-style boom (laced steel sections) mounted on a crawler undercarriage. Boom length is built by pin-connecting sections; jib and luffing jib options extend reach and lift flexibility. Movement on site is via steel tracks with low ground pressure.

Learn more about lattice booms in crawler cranes through our previously published blog.

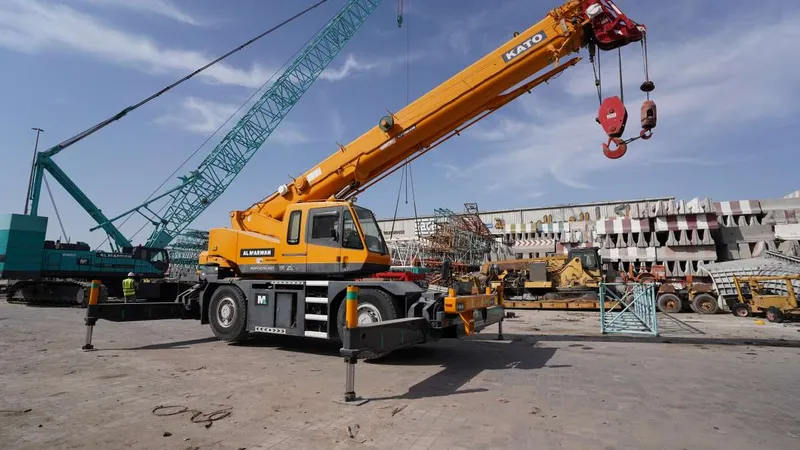

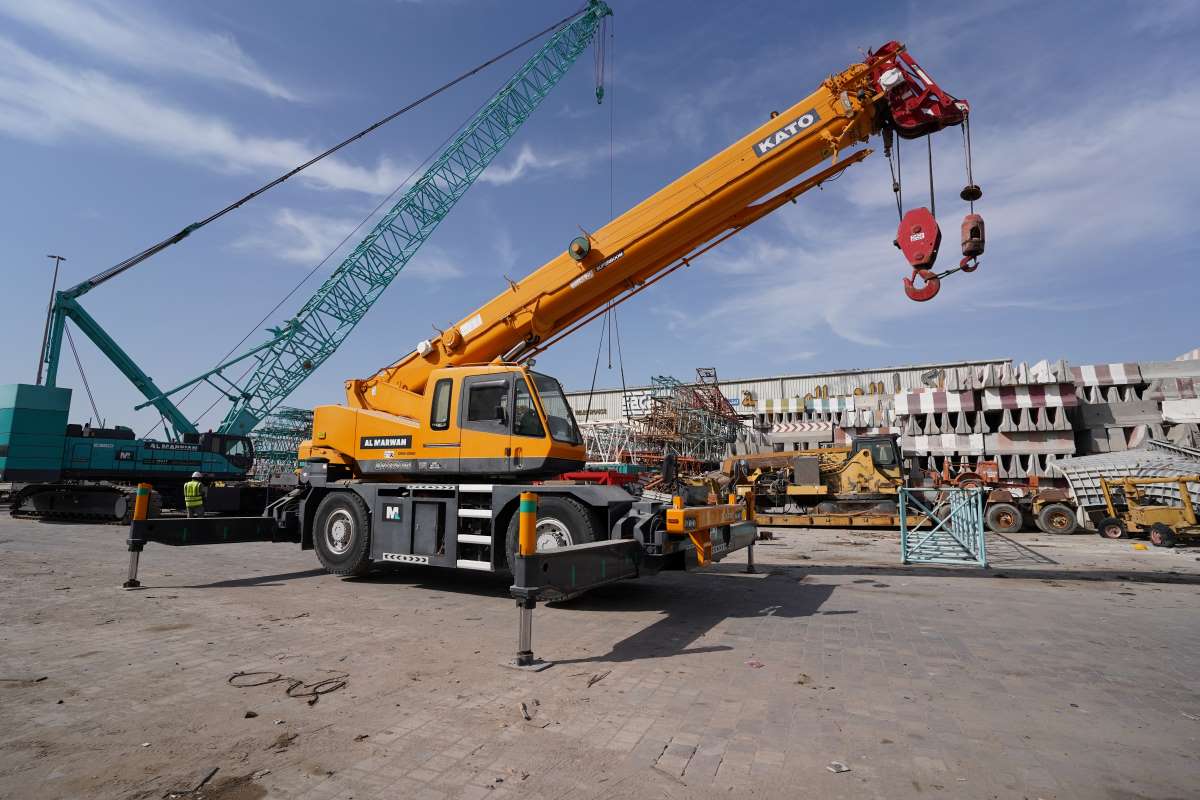

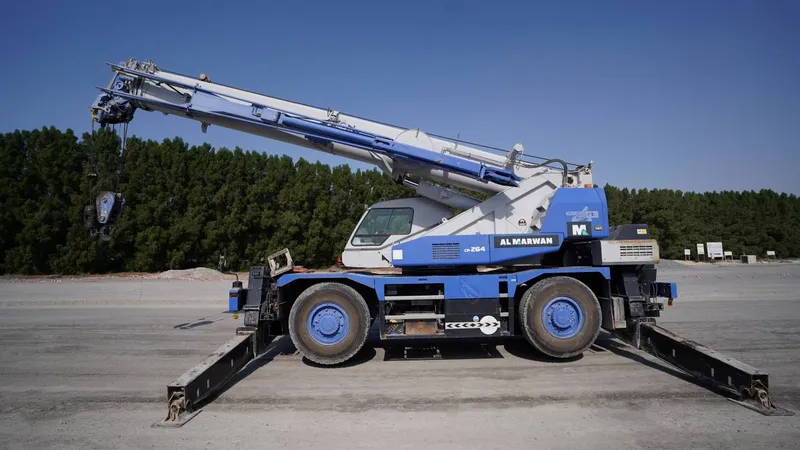

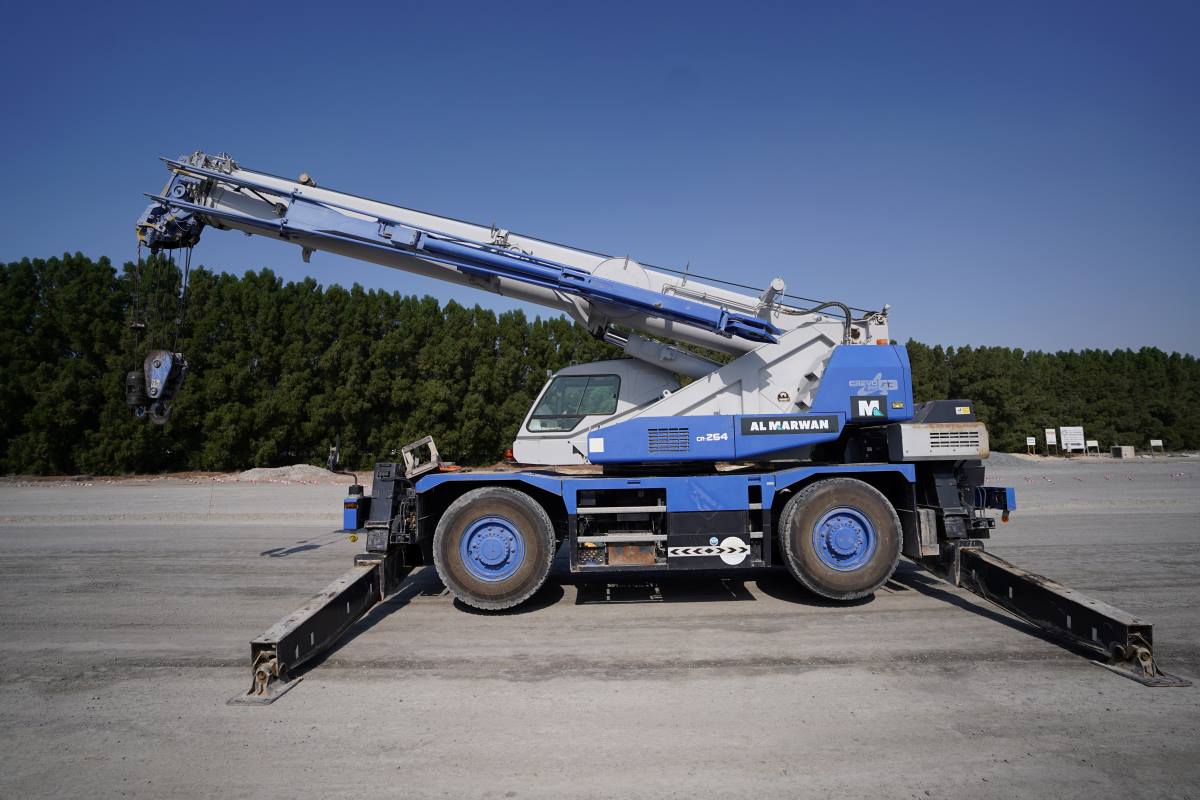

Telescopic crane Boom

A box-section boom that extends and retracts hydraulically within itself (like a telescope). Most commonly mounted on all-terrain or truck-mounted mobile cranes that drive on roads between jobs.

How the Boom Design Changes Everything

1) Strength-to-Weight & Lift Charts

Lattice boom (crawler):

The structure delivers high strength with relatively low self-weight, so more of the crane’s capacity goes into lifting your load, not carrying its own boom.

Excellent at heavy picks at long radius, especially with luffing jib configurations.

Telescopic boom (mobile):

Heavy, box-section steel with telescoping stages and hydraulic cylinders adds boom self-weight.

Superb for medium-to-heavy lifts at shorter to moderate radiuses with fast setup. For very long reaches, capacity tails off faster than lattice.

Bottom line: For sustained heavy lifts and long outreach, lattice wins on pure performance per ton of machine. For everyday mixed lifting with speed, telescopic excels.

2) Setup, Mobilization & Site Access

Lattice boom (crawler):

Assembly required. Boom and jib arrive as separate sections, pinned together by a rigging crew with assist cranes. Mobilization uses multiple lowbeds for the upper, carbody, crawlers, counterweights, and boom/jib packages. Once assembled, the crane can crawl with a load (within chart limits), which is a big advantage on linear or spread-out sites.

Telescopic boom (mobile):

Rapid setup. Drive to site, deploy outriggers, extend the telescopic boom. Fewer trailers, less site disruption, minimal assist lifts. Road mobility means multiple jobs per day are feasible.

Bottom line: Need to get in, lift, and get out fast? Telescopic like Tadano GR250N-2 mobile crane. Planning a months-long heavy lift program with repetitive picks? Buy Kobelco crawler crane like the Kobelco CKS2500 crawler crane.

3) Ground Conditions & Footprint

Lattice boom crawler cranes distribute weight over wide steel tracks for low ground bearing pressure, often essential on soft soils, marine works, or sites where matting options are limited. They can inch around with the hook loaded (per chart), positioning large components precisely.

Telescopic cranes rely on outriggers to stabilize the lift and concentrate loads into mats at four points. On very soft or uneven ground, extra planning and engineered mats are a must.

Bottom line: Challenging ground? Advantage lattice crawler.

4) Duty Cycle, Attachments & Continuous Work

Lattice crawlers are natural fits for duty-cycle tasks: clamshell, dragline, pile driving, diaphragm wall grabs, and luffing jib work. Their structure and drums are optimized for continuous operation.

Telescopics are outstanding taxi cranes: HVAC rooftop lifts, precast placement, steel erection, machinery moves, tower crane erection/dismantling any task that rewards quick setup, versatile reach, and road travel. While they can handle some duty-cycle jobs, they’re not purpose-built for continuous heavy cycle work.

Bottom line: For heavy, repetitive cycles and specialized lifting attachments, pick lattice. For diverse, short-duration lifts, pick telescopic.

5) Wind Behavior & Boom Dynamics

Lattice booms are open-truss structures that reduce wind load compared to a solid surface. This can expand weather windows for certain picks (always follow the crane’s manual and site wind thresholds).

Telescopic booms present more surface area to wind. Wind speed limits and derations can bite sooner in exposed sites.

Bottom line: In windy, exposed locations, especially at height, the lattice often maintains an edge.

6) Transport Economics & Project Scale

Lattice crawlers shine when a crane is staying put for weeks or months. The upfront assembly cost is spread across many lifts, and the resulting productivity can be unbeatable.

Telescopics minimize logistics for short jobs or when a crane must move between sites frequently.

Bottom line: Match the crane to the job rhythm: long-stay heavy work = lattice (Kobelco 7250S crawler crane is recommended); frequent moves and short durations = telescopic.

Deep Dive: Lattice Boom Crawler Cranes and Telescopic Mobile Cranes

Looking to buy Kobelco crawler crane units? Our team will match capacities, boom/jib mixes, and transport plans to your scope, timeline, and site access constraints.
