12 Common Types of Heavy Equipment in Construction

16 December, 2023
By Al Marwan
Share
12 Common Types of Heavy Equipment in Construction

Heavy equipment is being constantly developed to meet the ever-growing challenges of modern construction projects. These powerful machines have revolutionized the industry, making tasks that once seemed daunting, both achievable and efficient. The reliance on manual labor has significantly diminished as this machinery streamlines operations, ensuring projects are completed faster and with greater precision. The range of heavy equipment available today is as varied as the tasks they perform. From specialized machines crafted for specific jobs to versatile tools capable of handling multiple roles, the range is extensive. Customization and attachments, like transforming an excavator into a rock breaker, further enhance their utility. This article explores the 12 most common types of heavy equipment in construction, illustrating how they are integral to overcoming construction challenges and optimizing project execution.

12 of the Most Common Types of Heavy Equipment Used in Construction

While there is an extensive array of heavy equipment utilized across various sectors like mining, industrial, and commercial, our focus shifts to those machines that are most commonly seen on construction sites. These units, each with their distinct capabilities and roles, form the backbone of construction operations. Let's delve into the core of our discussion: the 12 most common types of heavy equipment indispensable in the field of construction.

1. Bulldozers

Bulldozers, also known as crawler dozers or simply dozers, have evolved significantly from their tractor origins. Unlike tractors with large wheels for agricultural soil preparation, bulldozers feature a tracked chassis, making them ideal for earthmoving tasks on construction sites. These tasks include site preparation for foundational work and grading land for road construction.

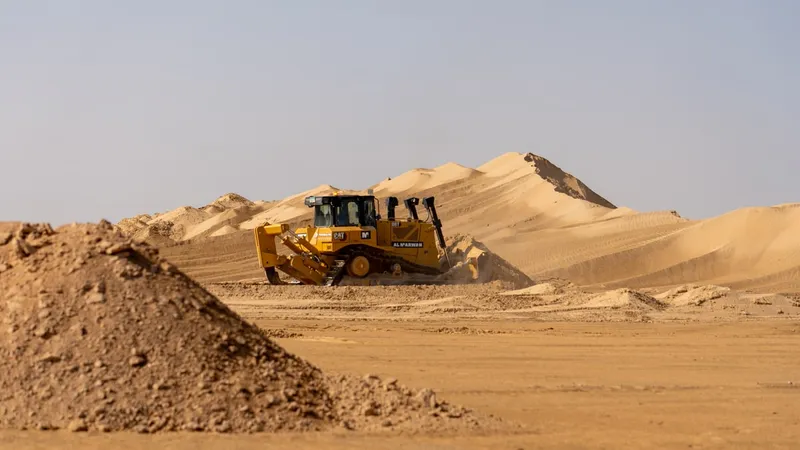

A CAT D8T bulldozer
A CAT D8T bulldozer

While wheeled dozers exist and somewhat resemble wheel loaders, they are less common in construction compared to crawler dozers. The preference for crawlers in construction in the GCC specifically is due to their better stability and effectiveness on sandy and uneven terrain.

In terms of size, bulldozers range from the compact 8-ton machines to the massive 153-ton ones. The size of the bulldozer chosen typically depends on the project's requirements. Smaller and medium-sized dozers are common in construction for their versatility and ease of handling, whereas larger dozers are often found in mining and quarry operations, where their larger scale and power are necessary.

Fun Fact: The origin of the iconic brand name 'Caterpillar' has a direct connection to the unique design of the crawler dozer. When Caterpillar first introduced the tracked tractor, its movement was likened to that of a caterpillar worm. This resemblance was so striking that it inspired the company to adopt 'Caterpillar' as its brand name, a name that has since become synonymous with robust and reliable heavy equipment in the construction industry.

2. Trucks

Trucks are pivotal in moving construction materials, debris, sand, and rock to and from construction sites. We can categorize them into two main types: on-road transport trucks, often known as tipper trucks or six-wheelers, and off-road trucks, including both articulated and rigid dump trucks, also referred to as off-highway trucks.

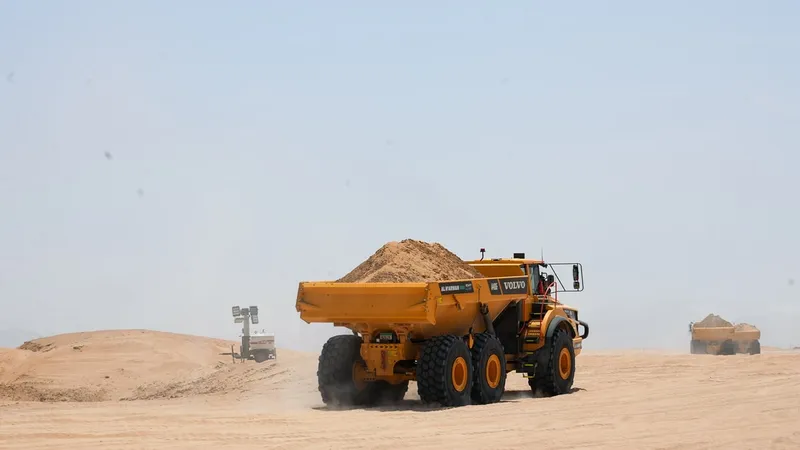

A Volvo A40G articulated dump truck
A Volvo A40G articulated dump truck

Starting with on-road trucks, these vehicles are versatile in their configuration. The 'truck head' or the cab is typically separate from the body, which can be customized for various tasks. Common configurations include a steel box for carrying materials, a cylinder for concrete mixing, or a hitch for towing trailers with large loads like heavy equipment. However, our focus here is mainly on tipper trucks. Preferred in urban construction projects for their road mobility, these trucks have a payload limit, usually capped at 28 tons. They are essential for transporting materials within the confines of urban infrastructure.

For hauling larger loads, off-road trucks are the go-to choice. These trucks boast a payload capacity generally exceeding 30 tons, enabling the efficient movement of larger volumes of material. However, they are restricted from road usage. Within the off-road category, there are two subtypes: articulated and rigid dump trucks. Rigid dump trucks, often larger, are more common in mining and quarry operations than in standard construction due to their size and capacity. Articulated trucks, on the other hand, offer more flexibility. They can be reconfigured, for instance, swapping their bed with a tank to transport liquids, expanding their utility in various construction scenarios.

3. Excavators

Excavators, commonly known as diggers, are known for their versatility and essential role in various tasks. They come in a wide range of sizes and are categorized mainly into three sub-types: mini, medium, and large excavators.

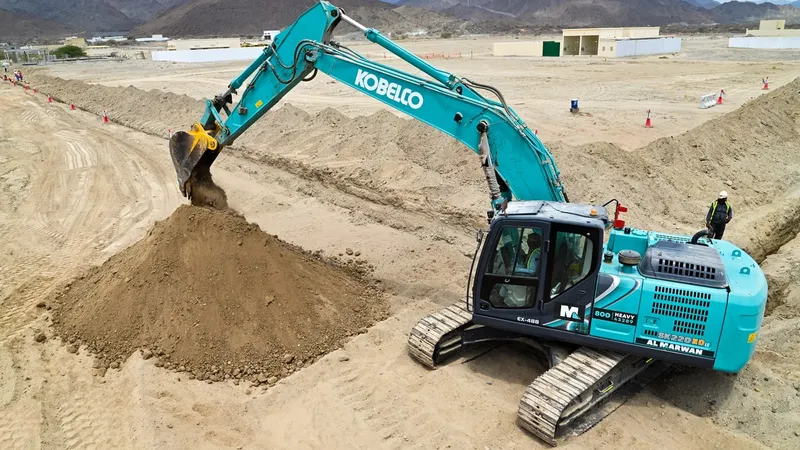

A KOBELCO SK220 track excavator
A KOBELCO SK220 track excavator

Mini excavators, the smallest of the bunch, weigh less than 1 ton and can go up to 10 tons. These compact machines are ideal for smaller construction tasks and landscaping, offering precision and maneuverability in confined spaces. Medium excavators range from 11 to 38 tons and are the workhorses of typical construction sites. They are versatile enough to handle a variety of tasks beyond digging, such as lifting objects, loading trucks, backfilling material, and laying structures like cables or pipes, especially when cranes are not available.

Large excavators, on the other end of the spectrum, start at around 40 tons and can reach a colossal 1,100 tons. These giants, often referred to as front shovels, are primarily used in mining and quarries. However, the largest excavators used in standard construction work usually max out at about 200 tons.

One of the most remarkable features of excavators is their ability to use attachments, enhancing their functionality. With the right attachments, an excavator can rip, break, drill, carry, or compact materials. This adaptability makes them invaluable on a construction site. Medium and large excavators are frequently equipped with rippers or rock breakers for demolition jobs or quarry work, where breaking concrete and rock is a necessity. Meanwhile, smaller excavators often come with a variety of tools and attachments tailored for landscaping and minor construction tasks, showcasing their utility in a broad range of scenarios.

4. Loaders

Loaders are a diverse group of heavy equipment, integral to construction projects. Their primary function is to move and load materials, but their versatility extends well beyond this basic role. There are five main types of loaders, each with unique characteristics and applications: wheel loaders, track loaders, compact track loaders, skid steer loaders, and backhoe loaders.

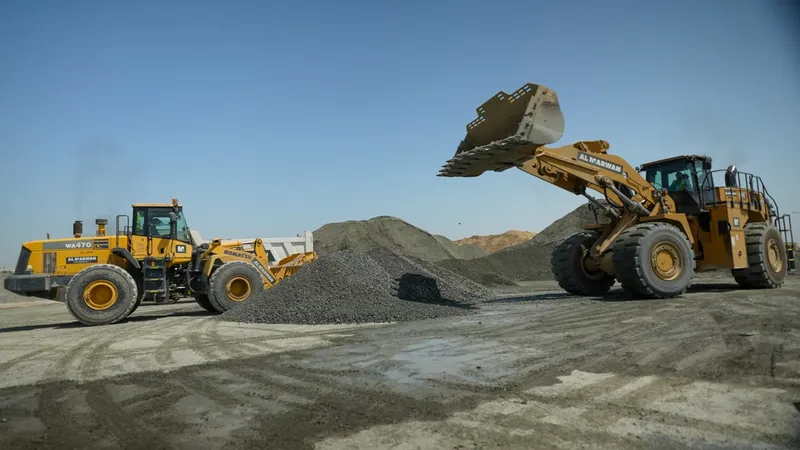

A CAT 966 loader and a Komatsu WA470 loader
A CAT 966 loader (right) and a Komatsu WA470 loader (left)

Wheel loaders are the most prevalent type on construction sites, especially in the initial stages of a project. Known for their efficiency in loading substantial amounts of material, these loaders are a go-to for most general construction tasks. Track loaders, while less common than their wheeled counterparts, are preferred in situations where stability is crucial, such as on muddy or sloped terrain.

Skid steer loaders and compact track loaders are smaller in size, and akin to mini excavators, these loaders are highly adaptable and can be fitted with various attachments for different tasks, making them valuable for more than just hauling loads.

Backhoe loaders present a unique combination, integrating features of both excavators and loaders. With a digging end and a loading end, they offer a level of versatility unmatched by other loaders. While they may not dig as deep or reach as far as standard excavators, nor load as much material as wheel loaders, their dual functionality makes them a versatile and economical choice for many construction professionals.

5. Cranes

Cranes are a vital component in construction, especially for heavy lifting and material handling. There are several types of cranes, each suited to specific needs and environments: tower cranes, crawler cranes, and mobile cranes.

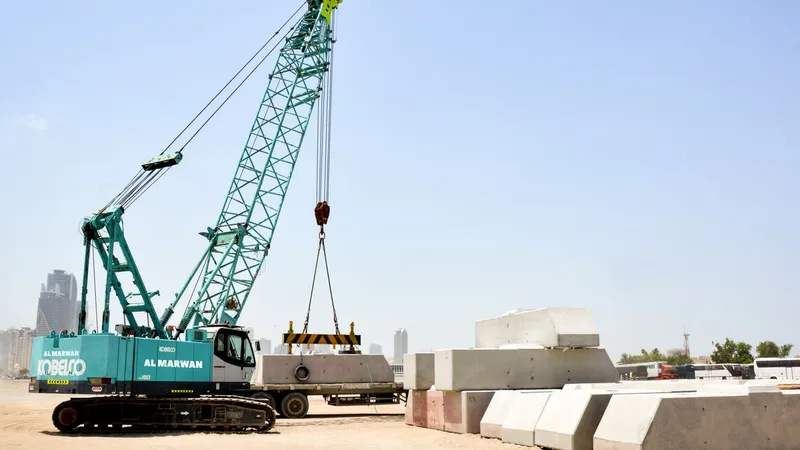

A KOBELCO CKS800 crawler crane
A KOBELCO CKS800 crawler crane

Tower cranes, though not considered as a heavy equipment type; they are fixed structures rather than mobile machines. Commonly seen in the later stages of building construction, tower cranes are anchored to the sides of buildings, assisting in lifting heavy materials as the structure rises. Their stationary nature and height capabilities make them indispensable for high-rise construction.

For more versatile lifting needs, crawler cranes and mobile cranes are the primary choices. Crawler cranes, equipped with a tracked chassis, are particularly suited for off-road applications. They offer greater stability and a higher lifting capacity compared to other types, making them a preferred choice for large-scale construction projects where stability and heavy lifting are key.

Mobile cranes, as the name suggests, provide mobility and flexibility. They come in two subtypes: rough-terrain cranes and all-terrain cranes. Rough-terrain cranes, designed for maneuverability on uneven surfaces, are smaller but effective for navigating and operating on challenging terrains. All-terrain cranes, on the other hand, are larger and capable of lifting heavier loads to greater heights. Their size and strength make them suitable for a wide range of tasks, from urban construction to large-scale industrial projects, especially where on-road mobility is essential.

6. Graders

Motor graders, commonly referred to as graders, play a pivotal role in construction, particularly in preparing the ground for subsequent building or road construction tasks. Often following the initial work done by bulldozers, graders specialize in refining the surface to the correct slope and grade, ensuring a solid and precise foundation for future construction.

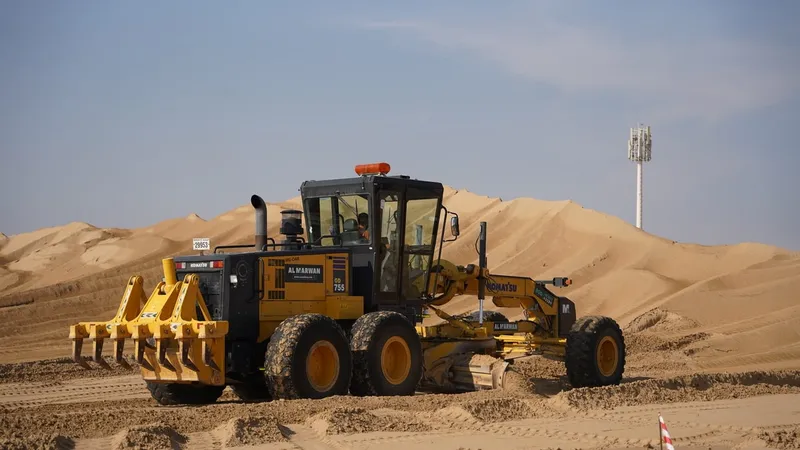

A Komatsu GD775 motor grader
A Komatsu GD775 motor grader

A distinctive feature of a motor grader is its middle blade, known as the moldboard. This blade is crucial for determining the grade of the topsoil, allowing for precise control over the surface level and slope. Additionally, many graders are equipped with a multi-shank ripper at the rear. This ripper is instrumental in breaking up tough soil, making it easier for the grader to smooth and slope the topsoil effectively.

7. Scrapers

Scrapers, also known as wheel tractor scrapers, are specialized earthmoving machines designed for scraping and leveling surfaces. They are unique in their ability to haul earth and materials like dirt and gravel over considerable distances, from one job site to another. A scraper typically features a wagon with a gate and a bladed bottom, which scrapes up earth as the machine moves forward, collecting the material inside the wagon.

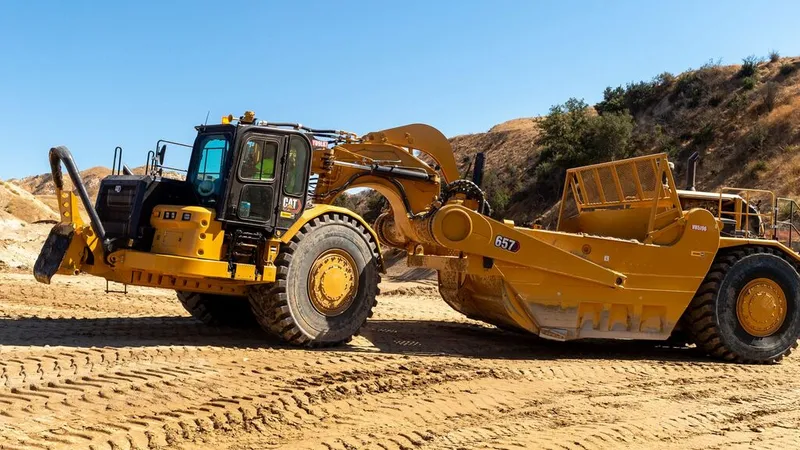

A CAT 657 scraper - image courtesy of CAT Rental Store
A CAT 657 scraper - image courtesy of CAT Rental Store

Despite their efficiency, scrapers are less popular in certain regions, such as the UAE. In these areas, contractors often prefer bulldozers, loaders, and graders for earthmoving tasks. This preference is partly due to the abrasive nature of local terrain, which can cause excessive wear on scrapers and stress on their mechanisms, making other types of heavy equipment more suitable and cost-effective for the regional conditions.

8. Rollers

Rollers, commonly referred to as road rollers, are essential in construction for compacting surfaces. There are several types, each serving specific purposes. Single-drum rollers, also known as vibratory soil compactors, have a large, smooth steel drum. They are primarily used to compact topsoil before construction begins or to prepare the base for asphalt laying.

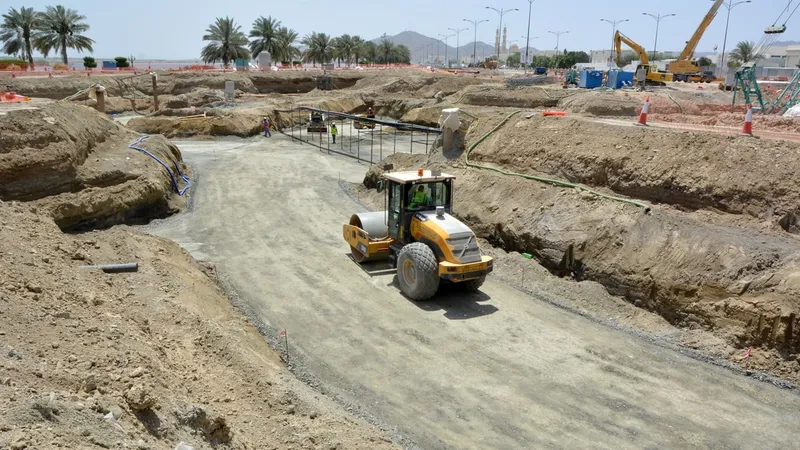

A Volvo SD vibratory soil compactor, single drum roller
A Volvo SD vibratory soil compactor, single drum roller

Double-drum rollers, or tandem rollers, are generally smaller than single-drum rollers. They play a crucial role in compacting fresh layers of asphalt on newly constructed roads. Pneumatic tyre rollers (PTRs), equipped with rubber tires at both ends, are used alongside tandem rollers to provide a smooth finish to freshly laid asphalt.

Additionally, there are small-scale tandem rollers, often called ride-on rollers or baby rollers. These are designed for compacting in smaller or confined spaces where larger rollers cannot operate effectively. They perform the same function as larger tandem rollers but on a smaller scale.

The smallest category includes walk-behind rollers. These compact units, featuring two drums, are typically used for compacting utilities and in spaces where larger rollers are impractical.

Both large single-drum rollers and baby rollers can be equipped with padfoot drums instead of smooth ones. This adaptation is particularly useful for trench compaction, where the padfoot design helps achieve the desired soil density and stability.

9. Pavers

Asphalt pavers, often simply called pavers, are specialized machines designed for laying asphalt on roads. Available in both wheeled and tracked chassis configurations, these machines are specifically used for mixing asphalt aggregate and laying the asphalt mat on newly constructed roads.

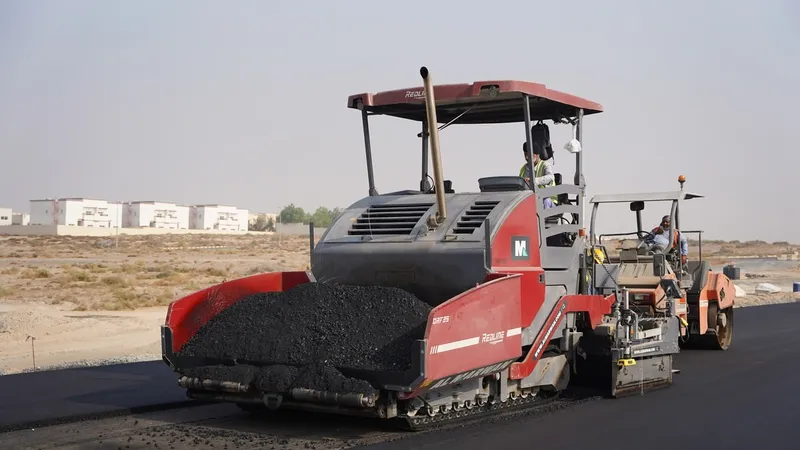

A Dynapac DRF25 track asphalt-laying paver
A Dynapac DRF25 track asphalt-laying paver

The key component of an asphalt paver is its large, winged hopper. During operation, a tipper truck closely follows the paver, feeding aggregate into this hopper. The aggregate is then moved to a revolving auger, where it is mixed with tar to form the asphalt. This mixture is evenly spread across the road surface using screeds, which determine the width of the asphalt layer.

Different models of asphalt pavers come with varying standard screed widths. Some are equipped with the ability to extend these screeds, either through built-in mechanisms or by adding extensions as attachments. This feature allows for flexibility in road width, accommodating a range of requirements between highways and internal roads.

10. Millers

Millers, also known as cold planers, road cutters, or asphalt cutters, are specialized machines used primarily in road renovation projects. Their main function is to remove worn-out layers of asphalt, making them essential for road resurfacing and repair work.

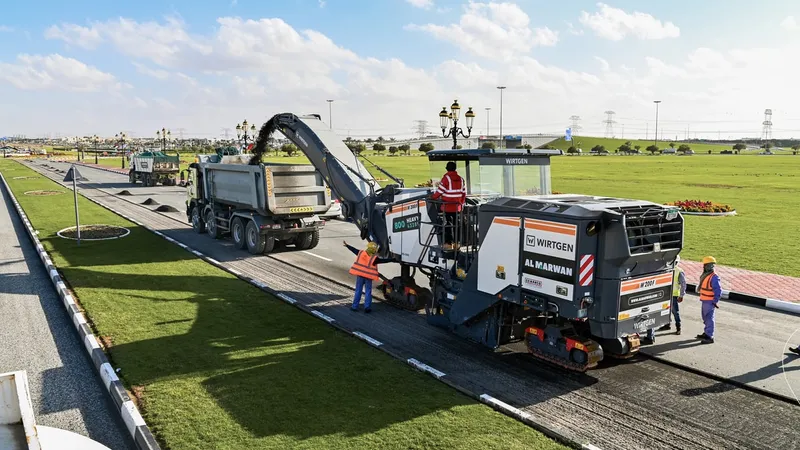

A Wirtgen 2000-series cold miller
A Wirtgen 2000-series cold miller

Typically, millers are built on a tracked chassis, which provides stability and maneuverability on the uneven surfaces of road construction sites. A key feature of these machines is a conveyor belt or a long conveyor system. This system efficiently transports the removed asphalt from the milling area to waiting trucks, which then haul away the debris.

The actual asphalt removal is performed by a rotating drum equipped with cutting tools or teeth. These tools are designed to tear through the asphalt layer, effectively breaking it up for removal. The precision and efficiency of millers allow for the selective removal of specific layers of asphalt without damaging the underlying structures, making them indispensable for maintaining and updating road infrastructure.

11. Drilling/Piling Rigs

Drilling and piling rigs, also known as pile drivers, baggers, sheet piling rigs, or directional rotary drilling rigs, are specialized machines used for a range of foundational work in construction. While these rigs may differ in their specific applications, they share a common design principle, closely resembling excavators in their structure.

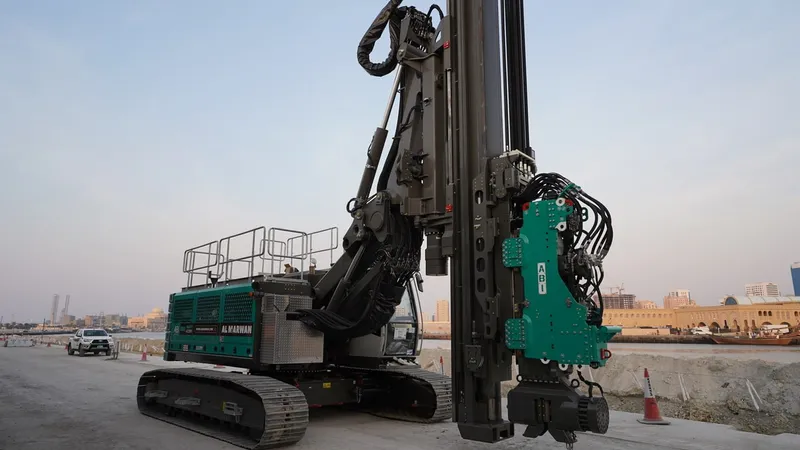

An ABI Mobilram sheet piling rig
An ABI Mobilram sheet piling rig

The most noticeable difference from a standard excavator is the orientation of the boom. In drilling and piling rigs, the boom is positioned more vertically to support a specialized attachment known as the mast. The type of attachment at the end of the mast varies based on the rig's intended use. For sheet piling applications, the attachment is typically a vibratory head, designed to hold and drive elements like H-beams, sheet piles, or foundation pipes into the ground.

In the case of drilling rigs, the primary attachment is a long auger, which drills deep into the earth to create space for foundations. Some advanced models feature a hollowed auger that can simultaneously drill and pour concrete, streamlining the foundation-laying process. Additionally, drilling rigs used in well drilling are equipped with pipes to extract water or remove murky water during the drilling process.

12. Concrete Pump Trucks

Concrete pump trucks play a vital role in modern construction, particularly in projects involving large-scale concrete placement. These specialized vehicles are designed to pump, deliver, and precisely place concrete in a variety of structures, including buildings, bridges, and various infrastructural projects.

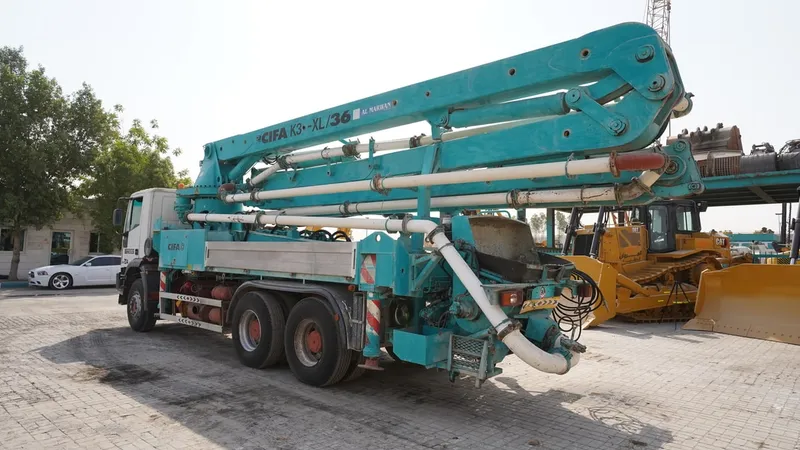

A Cifa concrete pump mounted on an Iveco truck
A Cifa concrete pump mounted on an Iveco truck

The defining feature of a concrete pump truck is its long, articulating boom. This boom is equipped with a pipeline through which the concrete is conveyed. The flexibility and reach of the boom allow the concrete to be poured at significant lengths and varying heights, making it possible to deliver concrete to even the most challenging locations on a construction site.

13. Concrete Mixing Truck

Concrete mixing trucks, commonly known as concrete mixer trucks or simply concrete trucks, are essential for transporting and maintaining ready-mix concrete. These trucks are easily recognizable by their cylindrical, revolving bodies, which keep the concrete within them consistently mixed during transit.

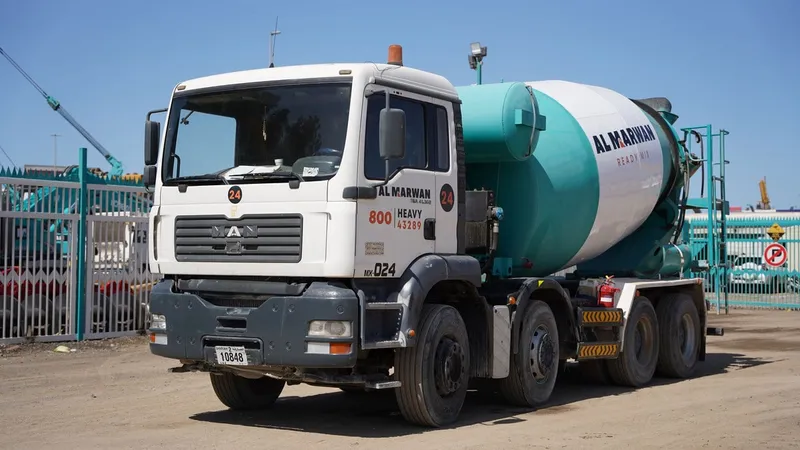

A MAN concrete mixing truck
A MAN concrete mixing truck

Upon arrival at the construction site, the concrete is extracted through a hatch located at the lower end of the truck's body. This process ensures that the concrete remains homogeneous and ready for immediate use. Frequently, concrete mixer trucks work in tandem with concrete pump trucks. The mixer truck pours the concrete directly into the reservoir of a pump truck, which then conveys it to the specific location where it is needed. This collaboration between mixer and pump trucks streamlines the process, significantly enhancing time efficiency and reducing the risk of the concrete setting prematurely.

Climate Control and Power Equipment on Construction Sites

In addition to the primary heavy equipment, construction projects often rely on a variety of supporting equipment to ensure smooth and efficient operations. These include power generators, lighting equipment, dewatering pumps, and climate control systems like heating, ventilation, and air conditioning (HVAC).

Power Generators:

Crucial for providing electricity in areas where grid power is unavailable or unreliable. They power tools, machinery, and lighting, keeping the project running regardless of local infrastructure.

Portable Lighting Towers:

Essential for projects that extend into the night or in locations with limited natural light. Proper illumination ensures safety and allows workers to maintain productivity around the clock.

Dewatering Pumps:

These play a critical role in removing water from construction sites, particularly in areas prone to flooding or where work is being done near water. These pumps keep the site dry, preventing delays and maintaining safe working conditions.

Climate Control Solutions:

Lastly, HVAC systems are vital for worker comfort and safety, especially in extreme weather conditions. These systems help regulate temperature and air quality, ensuring a healthier and more productive work environment.

Together, these supporting pieces of equipment facilitate the smooth and uninterrupted progress of construction projects, addressing the logistical and environmental challenges that arise during construction.

In this comprehensive overview, we've navigated through the diverse landscape of heavy equipment essential in the construction industry. From bulldozers to concrete pump trucks, each machine plays a unique and indispensable role in shaping our built environment. We've also highlighted the crucial supporting equipment that underpins these major operations, ensuring efficiency and safety on construction sites. Understanding the capabilities and applications of these machines is key to the success of any construction project. For more in-depth information and ongoing updates in the world of construction machinery, subscribe to our newsletter. Stay ahead in the industry and join our community today.
