Introduction to Concrete Solutions: Tools and Equipment

Concrete is the backbone of modern construction. It's everywhere! from sidewalks to skyscrapers, bridges to parking lots. Its versatility and durability make it the material of choice for countless projects. But, achieving perfect concrete structures isn't just about mixing cement, water, and aggregates using. The right tools and equipment for concrete mixing and pumping are crucial for ensuring quality, efficiency, and safety. This article will represent the essential tools and equipment that make concrete solutions possible, guiding you through what you need to know whether you're a seasoned professional or just getting started in the world of construction.

The Basics of Concrete Tools

Before we explore high-tech equipment, let's start with the basics. These fundamental tools are essential for any concrete project, big or small.

1. Mixing Tools

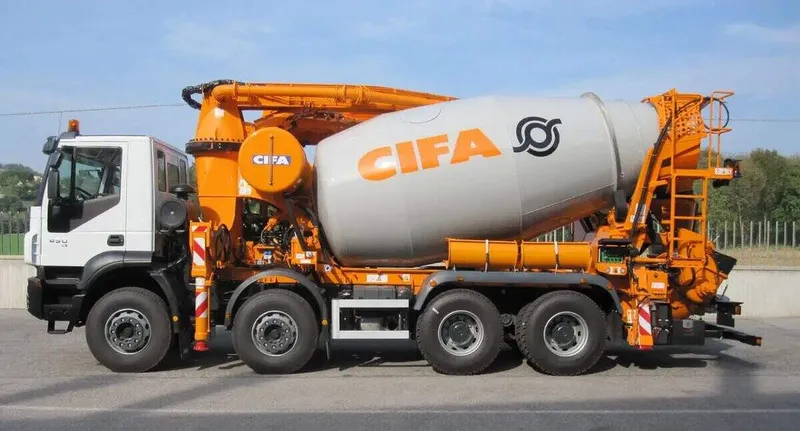

Concrete Mixers: A reliable concrete mixer is the cornerstone of any concrete project. These machines ensure that the concrete mix, consisting of cement, water, sand, gravel, and other aggregates, is uniform and consistent, which is vital for strength and durability. Portable mixers are ideal for smaller jobs, while larger, truck-mounted mixers are used for big construction projects. Al Marwan offers a range of concrete mixers for sale from leading manufacturers.

Mixing Tubs and Buckets: For smaller batches or touch-up work, mixing tubs and buckets are handy. They're easy to clean and perfect for mixing concrete manually.

2. Pouring Tools

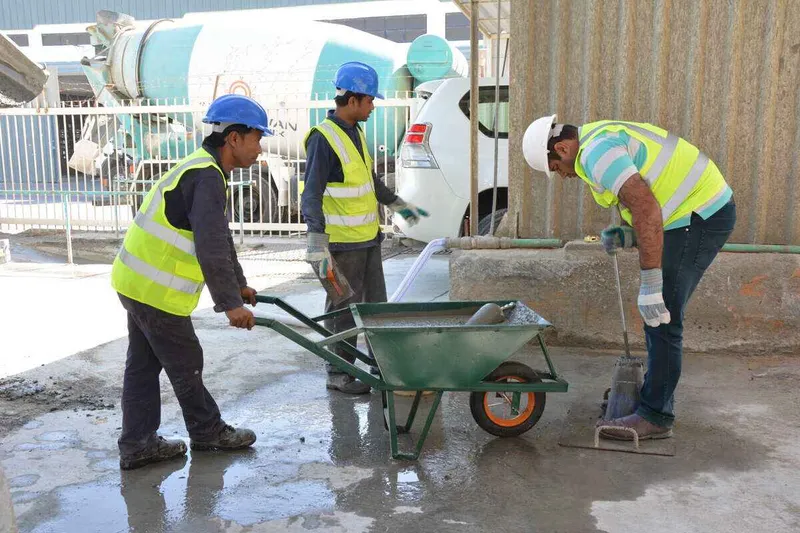

Wheelbarrows: A sturdy wheelbarrow transports mixed concrete from the mixer to the pour site. Look for one with heavy-duty construction and a comfortable grip to make the job easier.

Concrete Chutes: These are used to direct the flow of concrete from the mixer to the formwork. They help in reducing waste and ensuring that the concrete is placed exactly where it’s needed.

3. Leveling Tools

Screeds: A screed is a straightedge tool used to smooth and level wet concrete. There are manual screeds, which are simple and effective, and power screeds, which vibrate to help settle the concrete and remove air bubbles.

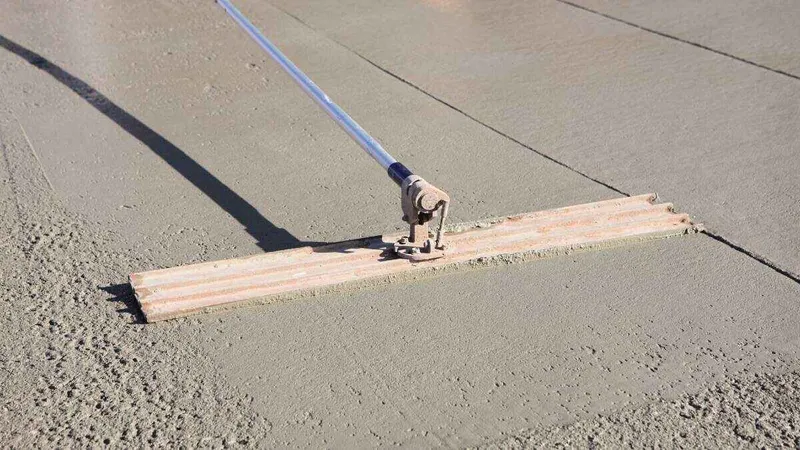

Bull Floats: After screeding, a bull float which is made of magnesium, aluminum, or wood blade runs initially across the surface of the slab in the finishing process to help smooth the surface. This large, flat tool is perfect for larger areas and ensures a uniform finish.

4. Finishing Tools

Trowels: Trowels come in various shapes and sizes, but their primary function is to smooth and finish the surface of the concrete. A hand trowel is ideal for small areas, while a power trowel, which has rotating blades, can cover larger areas more quickly.

Edgers and Groovers: These tools help create clean edges and joints in the concrete. Edgers smooth the edges to prevent chipping, while groovers create control joints to help manage cracking.

5. Curing Tools

Concrete Blankets: The blankets used mainly to keep the concrete at an optimal temperature during the curing process. Proper curing is essential for achieving maximum strength and durability.

Sprayers: A sprayer is used to apply curing compounds or water to the concrete surface, ensuring it stays moist during the critical curing period.

Advanced Concrete Equipment

Now that we've covered the basics, let's look at some of the more advanced equipment that makes large-scale concrete projects feasible.

1. Concrete Pumps

A Concrete pump is a machine used for delivering concrete to hard-to-reach areas, offering faster concrete pouring with less labor than any other method.

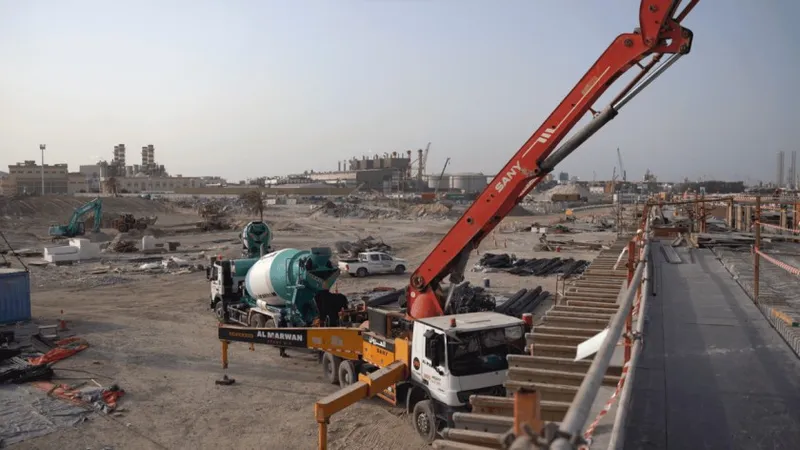

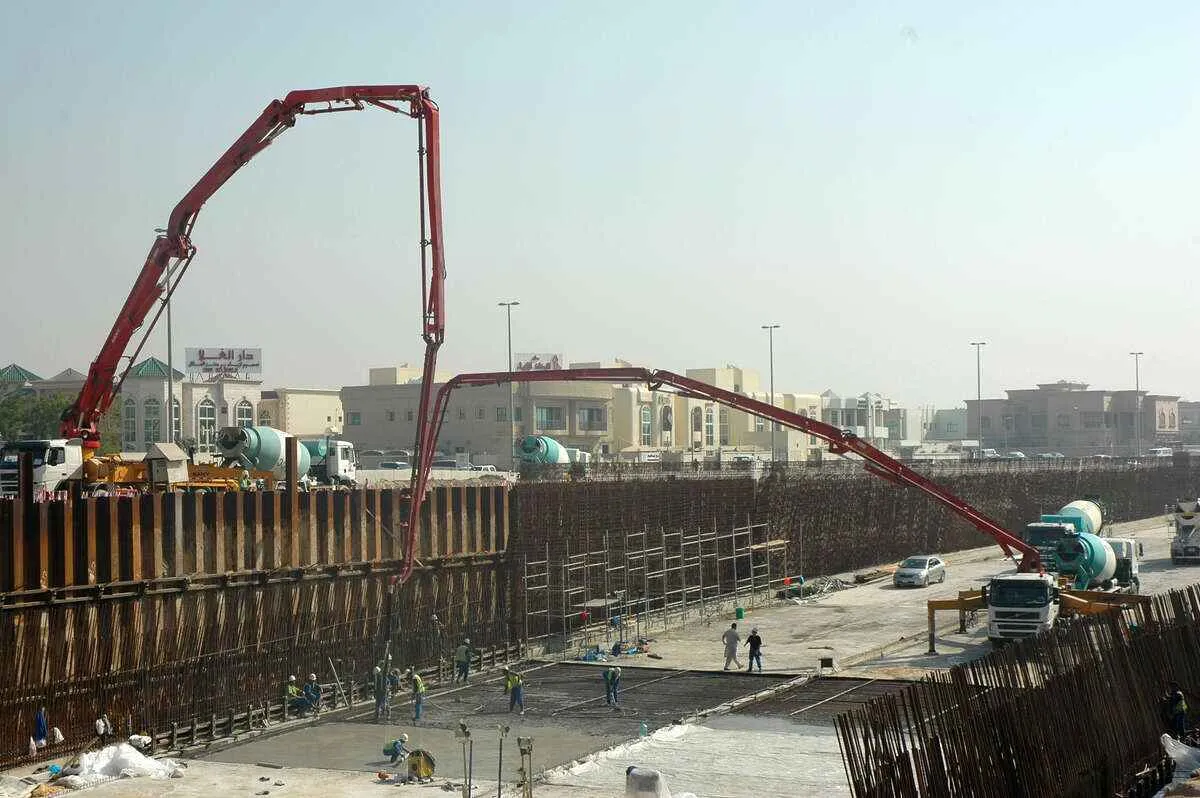

Concrete Pump Trucks: Also known as boom pumps. They have a robotic arm that can be extended to place concrete precisely where it's needed, even several stories high. They are perfect for high-rise buildings and large industrial projects. As the authorized dealer for CIFA products in the UAE and Oman, Al Marwan offers concrete pump trucks for sale, including the Carbotech and Steeltech. The Carbotech series, known for its advanced carbon fiber technology, features booms that range from 40 up to 80 meters, making them perfect for projects that require extended reach and precision. Whereas, the Steeltech series provides robust, steel-constructed booms with a boom length range from 20 and up to 63 meters, delivering durability for demanding construction sites.

Line Pumps: those pumps are more versatile and portable. They use a series of hoses to pump concrete to areas that are difficult to access with a truck. The selection of portable pumps by CIFA are ideal for both large job sites and sites with tight spaces.

2. Concrete Vibrators

Concrete vibrators are essential for ensuring that the concrete mix is properly consolidated. They help eliminate air bubbles and ensure the mix fills all the gaps in the formwork. There are several types of vibrators:

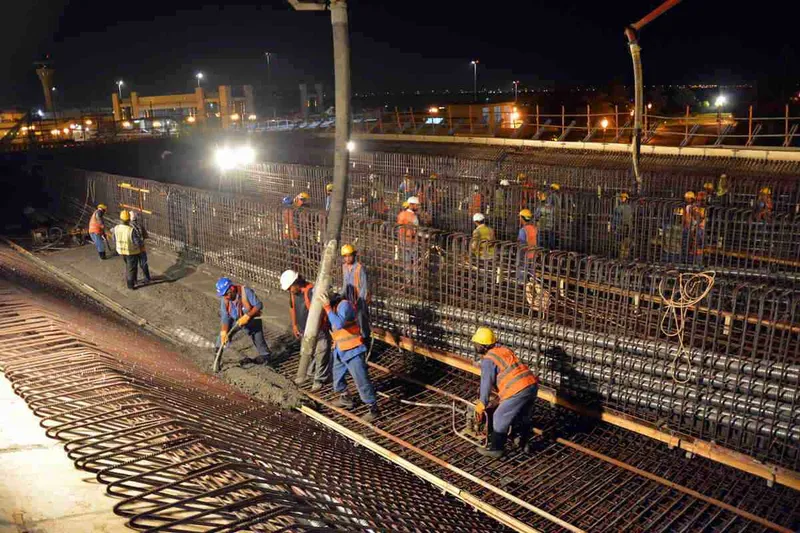

Internal Vibrators: Designed to be inserted directly into the concrete mix. They are very effective at consolidating concrete, especially in large pours.

External Vibrators: Attached to the formwork and vibrate the entire structure. They are used when internal vibration isn’t feasible.

Surface Vibrators: They are used on the surface of the concrete to help level and smooth it out. They’re particularly useful for slabs and floors.

3. Concrete Saws

Cutting concrete requires specialized equipment due to its hardness. Concrete saws are used to cut control joints, remove sections of concrete, or make openings for doors and windows.

Walk-Behind Saws: These are used for large cuts, like those needed in roads or slabs. They are powerful and can cut through thick concrete.

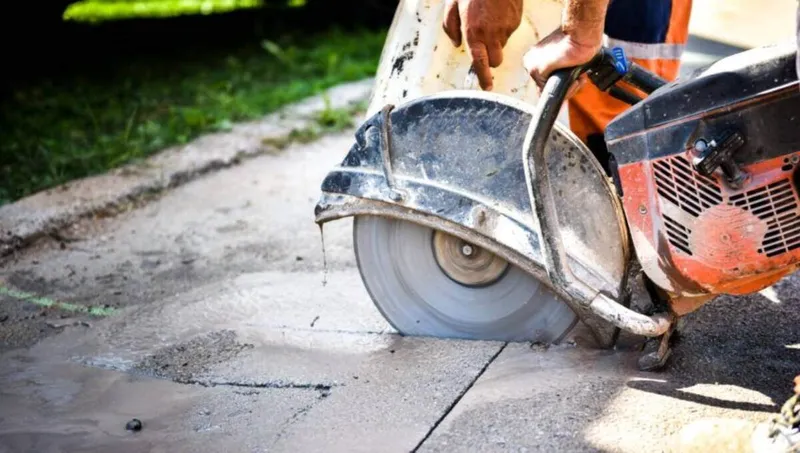

Handheld Saws: These are more portable and are used for smaller cuts or detailed work. They come in various models, including electric and gas-powered.

4. Concrete Grinders and Polishers

For projects requiring a smooth, finished surface, concrete grinders and polishers are essential as they remove imperfections and create a polished, professional look. Planetary grinders, with multiple rotating heads, cover large areas quickly and efficiently, making them ideal for big floors and commercial spaces, whereas handheld grinders are used for smaller areas or detailed work, such as edges and corners.

5. Formwork Systems

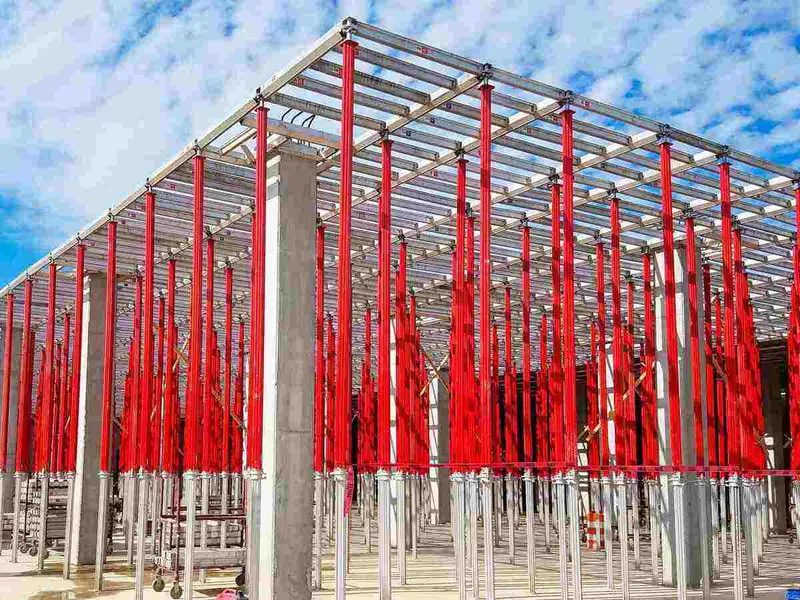

Formwork is the temporary structure used to hold the concrete in place until it hardens, and modern formwork systems are designed to be reusable, reducing costs and waste. Modular formwork consists of pre-engineered panels that can be easily assembled and disassembled, making them perfect for repetitive tasks like housing developments. Custom formwork can be designed to meet projects with complex architectural requirements that cannot be accomplished with only standard formwork systems.

6. Concrete Batching Plants

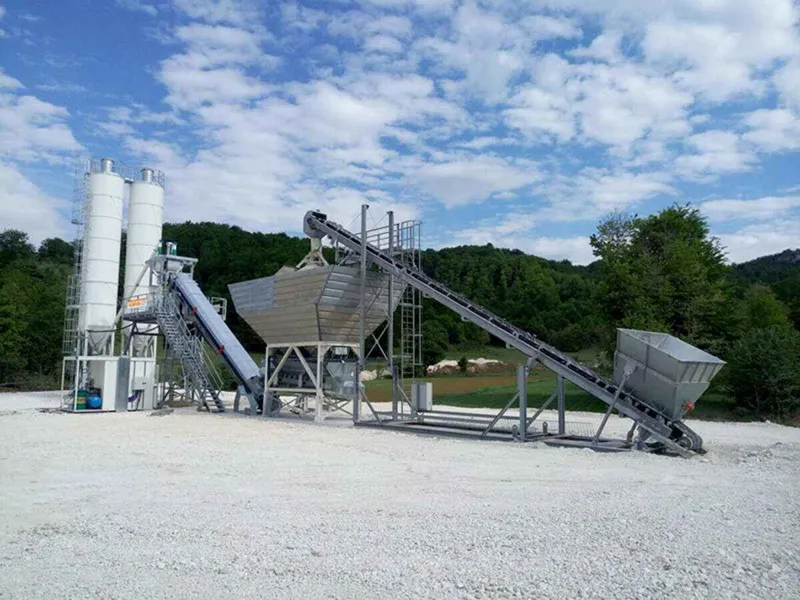

A concrete batching plant is essential for large construction projects that require large volumes of concrete. These plants mix all the ingredients – cement, water, aggregates, and admixtures – with precision.

Stationary Batching Plants: Ideal for long-term projects where the plant can be set up in one location. These are often used for large-scale infrastructure projects.

Mobile Batching Plants: These are portable and can be moved from site to site. They are perfect for projects where the concrete demand is temporary or fluctuates.

Ready Mix Factories

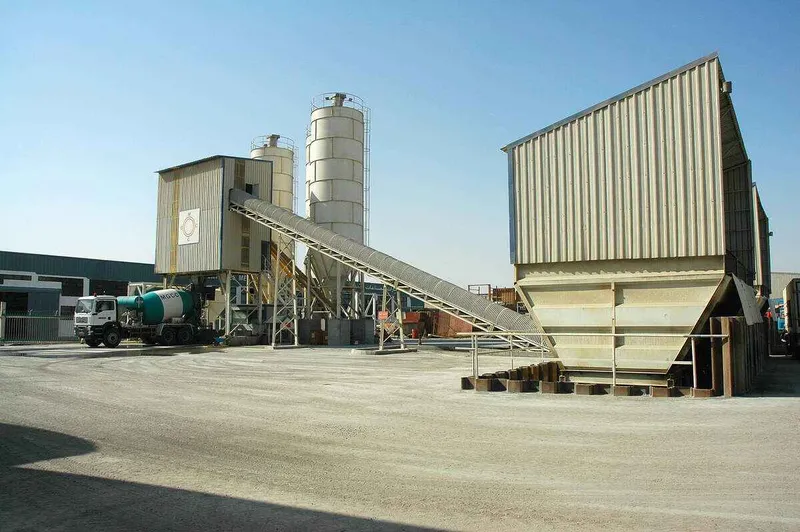

For large-scale projects or when consistency and convenience are paramount, ready-mix concrete from a factory is an excellent solution. Ready-mix factories produce concrete by precisely mixing the required materials in a controlled environment, ensuring high-quality and uniform consistency. The concrete is then delivered to the site in truck-mounted mixers, ready for immediate use. This approach saves time, reduces labor, and minimizes material waste, making it ideal for projects demanding large volumes of concrete. Al Marwan provides various ready mix concrete services, delivering high-quality concrete and tailored concrete solutions to meet the specific needs of each project.

8. Concrete Crushers

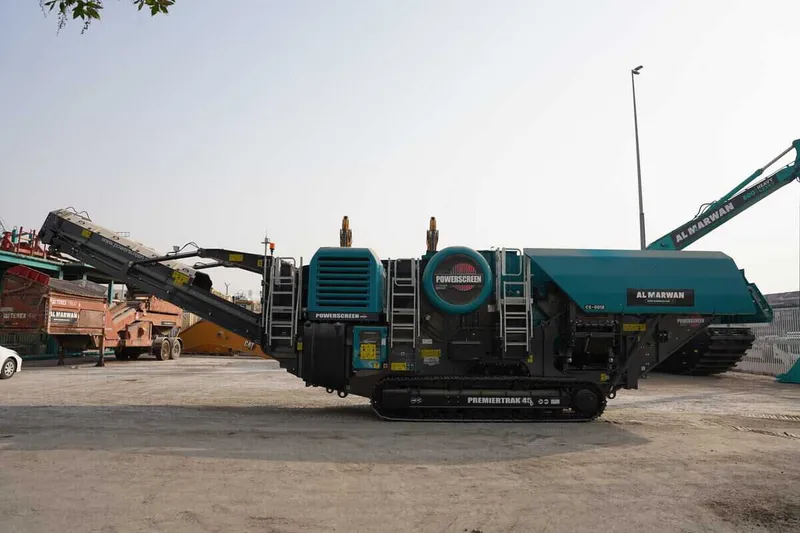

Concrete crushers, such as Powerscreen jaw crushers available for sale at Al Marwan, are used to break down large chunks of concrete into smaller, more manageable pieces, which is especially important for demolition and recycling projects. Jaw crushers use compressive force to break down concrete and are very effective for primary crushing. Impact crushers, on the other hand, use impact force to crush concrete, making them ideal for secondary crushing and producing finer aggregate.

Laying down concrete might seem straightforward, but using specialized tools is important for successful completion. Review this list and consider your equipment inventory to ensure you're well-prepared for all concrete-related operations.
