Replace Cat Diagonal Retention Tips: Guide for Backhoe Loader Operators

The Cat Diagonal Retention System (DRS) is a game-changer for backhoe loaders and excavators. It is designed to reinforce the bucket while making tip replacement faster and safer. In this guide, we will walk you through everything you need to know about this system.

That is why choosing the right parts for your backhoe for sale or rental unit is critical.

What is the Cat Diagonal Retention System?

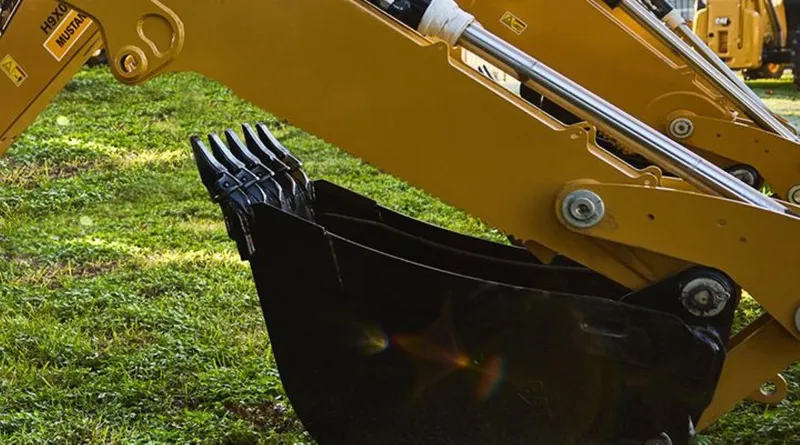

The Diagonal Retention System differs from traditional horizontal systems by using an angled pin. The pin slot sits at a 40-degree angle, allowing bucket teeth to be positioned closer together.

This unique design significantly increases bucket strength and improves resistance to abrasive wear. It is a hammerless-ready concept that simplifies maintenance for operators in the field.

Ready to upgrade your fleet’s digging performance? Explore Al Marwan's extensive range of backhoe loaders for sale and rent—all backed by our comprehensive warranty and dedicated maintenance support to keep your job site moving.

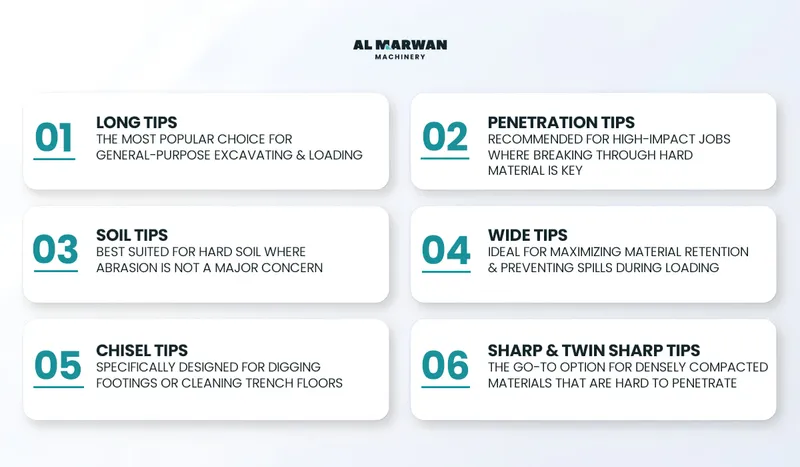

Selecting the Right Bucket Tips for Your Job

Before starting the replacement process, you must select the correct tip for your specific application. Using the wrong tip can lead to premature wear or reduced fuel efficiency.

Safety is the top priority at Al Marwan. Before you begin, ensure you are wearing the correct Personal Protective Equipment (PPE) and that the bucket is safely positioned on the ground or a stable stand.

• Clear Debris: Use water or a wire brush to remove packed dirt from around the pin and adapter.
• Drive the Pin Out: Use a punch to strike the diagonal retention pin from the bottom up.
• Remove the Tip: Once the pin is released, slide the worn tip off the adapter.
• Deep Clean: Use a wire-bristle brush to clean the adapter thoroughly, ensuring no caked-on material remains.

Clean adapters are essential because they ensure the new tip seats properly.

Step-by-Step: Installing New Cat Diagonal Retention Tips

Once the adapter is clean and inspected for any structural damage, you are ready to install the new parts.

Position the Tip: Slide the new tip onto the adapter until it is fully seated.

Insert the Pin: Align the pin with the diagonal slot.

Secure the Retention: Hammer the pin into the retainer from the bottom side up until it locks in place.

Final Check: Ensure the tip does not wobble, and the pin is flush with the surface.

You can watch this step-by-step video to learn more

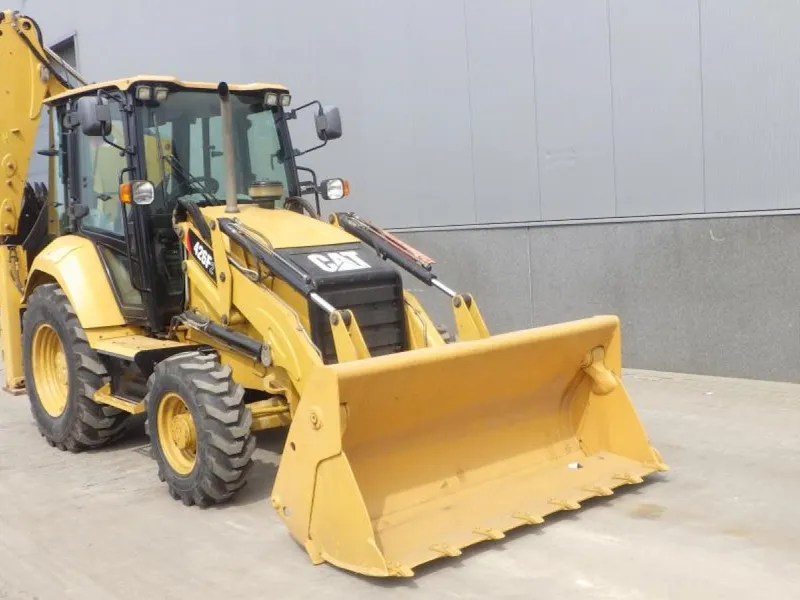

Al Marwan offers an extensive inventory of backhoe loaders for sale and rent from top brands like JCB and Caterpillar. Whether you need a JCB 3CX or a CAT 426F2 equipped with heavy-duty retention systems, we back every machine with full GET management and after-sales support.
