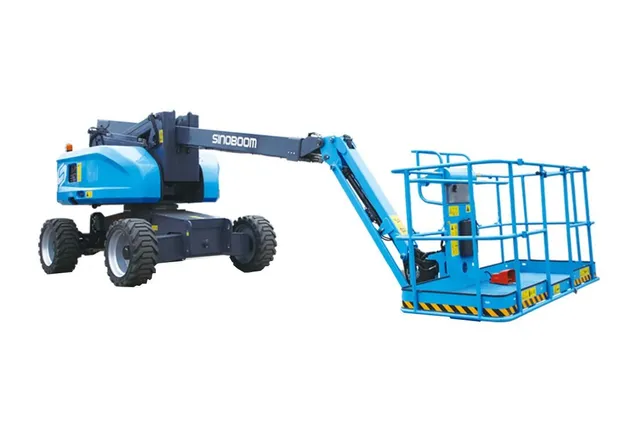

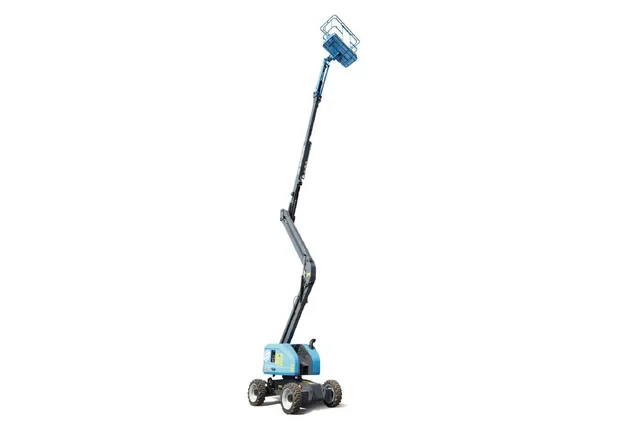

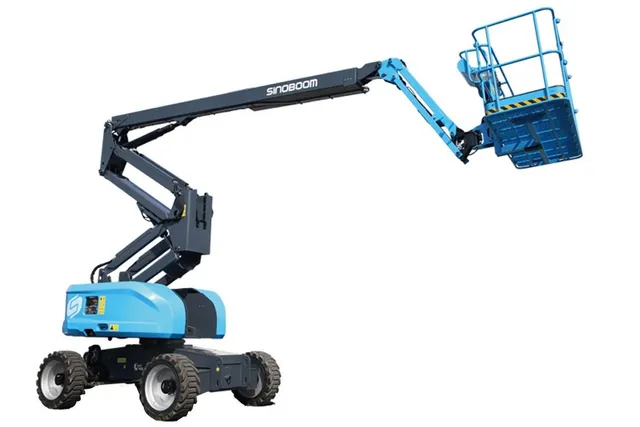

2026 Sinoboom AB15J Articulated Boom Lift
Warranty
2Y/4,000Hrs (Main Components) & 5Y/5,000Hrs (Steel Structure)
Included
Get more info about availability, price and delivery
We offer financing fast approvals, and give you the freedom and flexibility to buy what you need, when you need it.
Reference No.
AMH209
Need assistance?
Your personal Al Marwan advisor will answer your questions.
Yomna
Senior advisor
- Reference Number AMH209
- Working hours 0 hrs
- Operating weight (kg) 7,080 Kg
- Engine Output 36 kW
- Max Number of Operators 2
- Working Height 16.7 m
- Platform Capacity 250 kg
- Max Horizontal Extension 8.5 m
- Power Diesel engine
- Drive × Steer 4WD × 2WS
- Turntable Rotation 355°/Non-Continuous
- Platform Rotation 160°
- Gradeability 40%
- Features
- Narrow width with zero tail sweep
- Oscillating function
- 7-in display screen
- 4WD× 2WS
- Proportional control with 3 joysticks
- Automotive-grade sleeves for all pipes
- Hydraulic platform leveling
- Weighing system
- Tilt protection system Max tilt rating to 5°
- Emergency stop/lowering system
- Telematics-ready connector
- Non-marking tires foam-filled / solidÂ
- AC power to platform
