What Are the Different Mini Excavator Size Classes, Specs, and Uses?

Mini excavators, also known as compact excavators, are renowned for their compact design and versatility across construction, landscaping, and home improvement projects. These agile machines are instrumental in tight areas where space is limited—such as indoor demolition zones, freshly compacted grounds, or delicate turf where maintaining low ground pressure is crucial. Their operational adaptability is enhanced by a diverse range of hydraulic attachments, allowing them to tackle everything from trenching to demolition with ease. Beyond their functional diversity, models like a compact Kobelco excavator or a nimble Komatsu excavator are prized for their intuitive controls, exceptional maneuverability, and hassle-free transportation between job sites. This guide takes a closer look at the sizes, technical specifications, and diverse applications of these machines, highlighting why they remain a top choice for professionals searching for premium compact excavators for sale.

Understanding the Four Size-Classes of Mini Excavators

Mini excavators vary in size from under 1 ton to 10 tons, and they are classified into four main size segments. Each segment caters to specific use cases and specifications, making it vital to choose the right one for your project needs.

Under 1 Ton:

Ideal for minimal yard work like shallow trenching, landscaping, and yard cleanup, these mini excavators are perfect for confined spaces. They are usually used indoors as well, so as long as they don’t damage the ground underneath them, as they are often equipped with wide, rubber tracks.

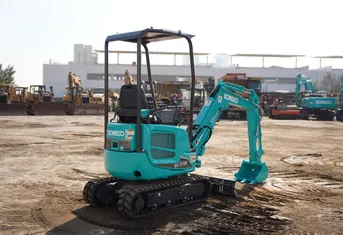

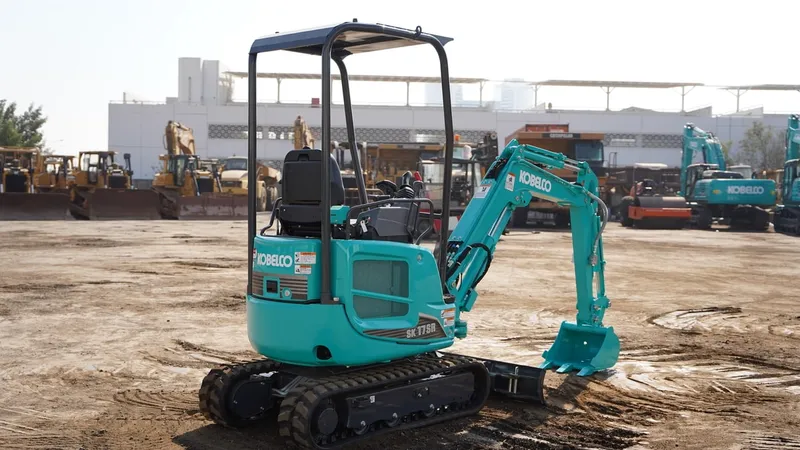

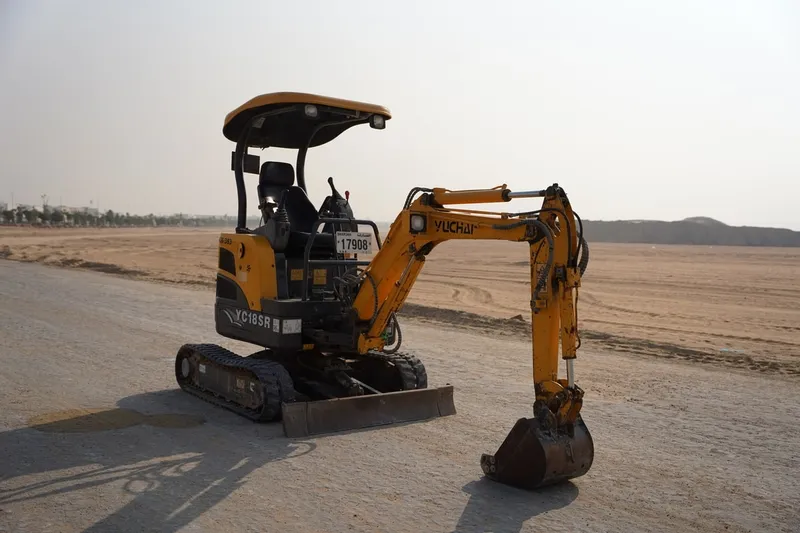

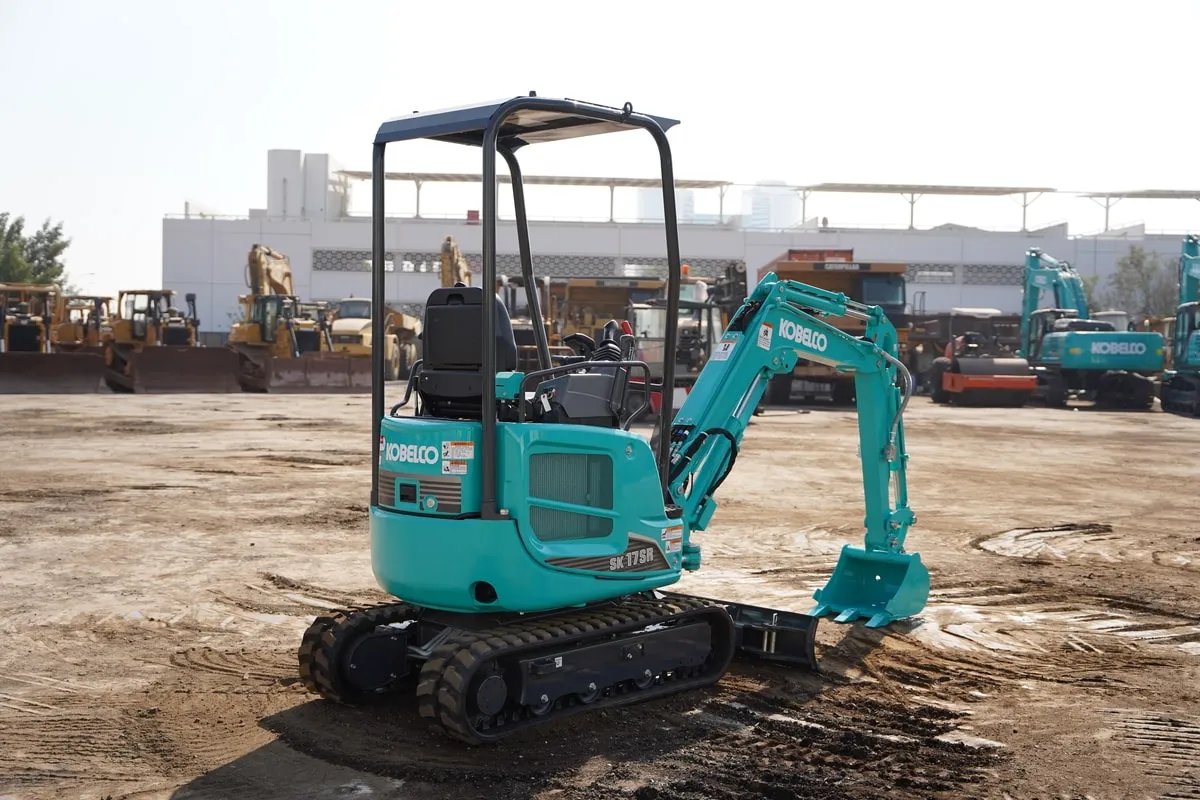

1 to 2 Tons:

Suited for small-scale trenching, grading, and demolishing small structures, these machines are excellent for backyard projects, including laying irrigation pipes or handling light materials.

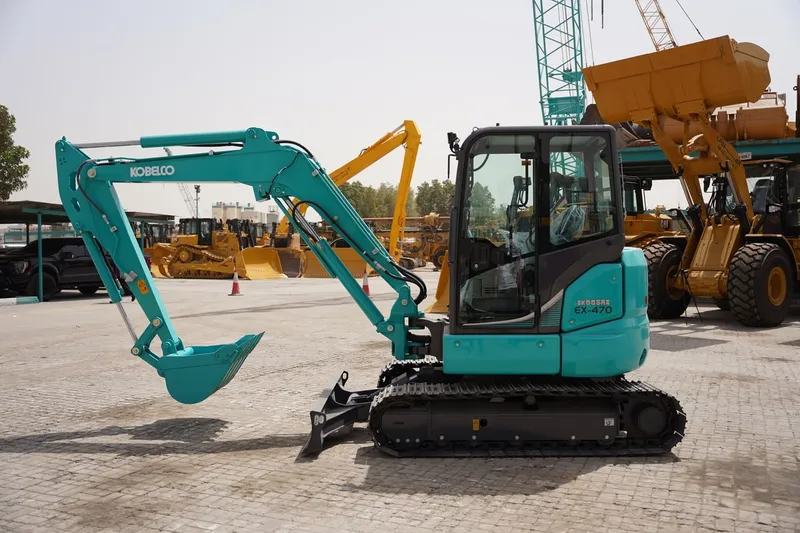

3 to 5 Tons:

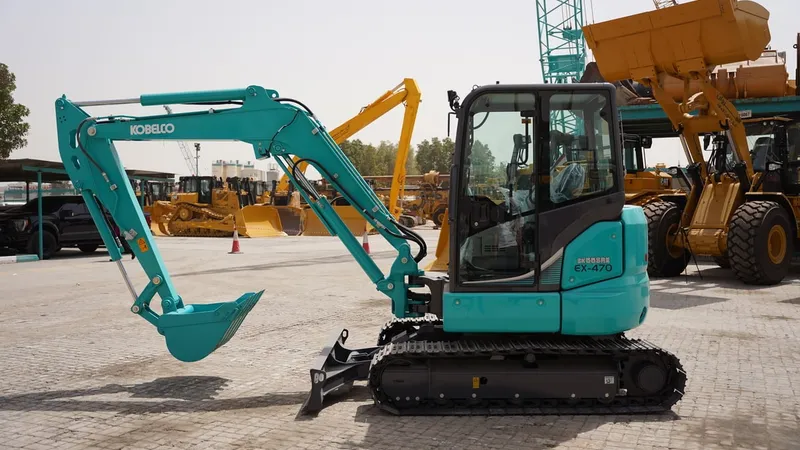

The most common size, these mini excavators excel in a variety of tasks, including trenching, digging foundations, and material handling. They offer a balance of maneuverability and lifting capacity, making them ideal for constructing sheds or preparing sites.

6 to 10 Tons:

The largest in the mini excavator range, these machines handle all the tasks of smaller sizes but on a larger scale. Used mostly by general contractors, they offer a middle ground between smaller, agile machines and larger, more robust excavators.

Choosing the right size is crucial, but it's not the only factor. In the next section, we'll explore other essential technical specifications to consider when selecting a mini excavator.

Key Technical Specifications of Mini Excavators

Before choosing a mini excavator to rent or a compact excavator for sale, it’s important to understand the following technical specifications:

1. Operating Weight

This is the excavator's total weight during operation, including the counterweight, attachment, operator, and fuel. For example, a 5-ton mini excavator refers to its operating weight. It's vital for understanding the machine's lifting capacity and stability.

2. Digging Depth

Reflects how deep the excavator can dig; a 1-ton model typically reaches up to 2 meters, while a 5-ton can dig up to 4 meters. This specification is crucial for tasks requiring specific depth, like foundation work or pipe laying.

3. Operating/Transportation Dimensions

Transport dimensions (height, width, length) are important for shipping and hauling the excavator. Operating dimensions provide insight into the machine's working range, including its maximum reach and dumping height.

4. Engine Power

Measured in horsepower or kilowatts, it indicates the excavator's strength. Smaller models, like a 1-ton excavator, might have a 9.9 kW engine, while a 5-ton model could have a 28 kW engine.

5. Bucket Breakout Force

This measures the digging force of the excavator, essential for understanding its capability in different ground conditions.

6. Digging Reach

Different from vertical reach, this indicates the maximum distance the excavator can extend while digging.

7. Swing Speed/Turning Radius

Swing speed, measured in rpm, shows how fast the excavator can rotate 360 degrees. The swing area, including the turning radius, is crucial for working in confined spaces.

8. Dumping Height

Important for determining how high the excavator can lift material before dumping it, for instance, into a truck.

9. Bucket Capacity

Generally ranges between 0.08 and 0.16 cubic meters, suitable for the scale of tasks handled by mini excavators.

10. Bucket Width

Often more critical than capacity for tasks like trenching, the width can vary based on the job requirements. For instance, a 5-ton excavator might come with a 600-mm bucket.

Each of these specifications plays a pivotal role in choosing the right mini excavator for specific tasks, ensuring optimal performance and efficiency.

Limitations of Mini Excavators

While mini excavators offer versatility and maneuverability, they have certain limitations:

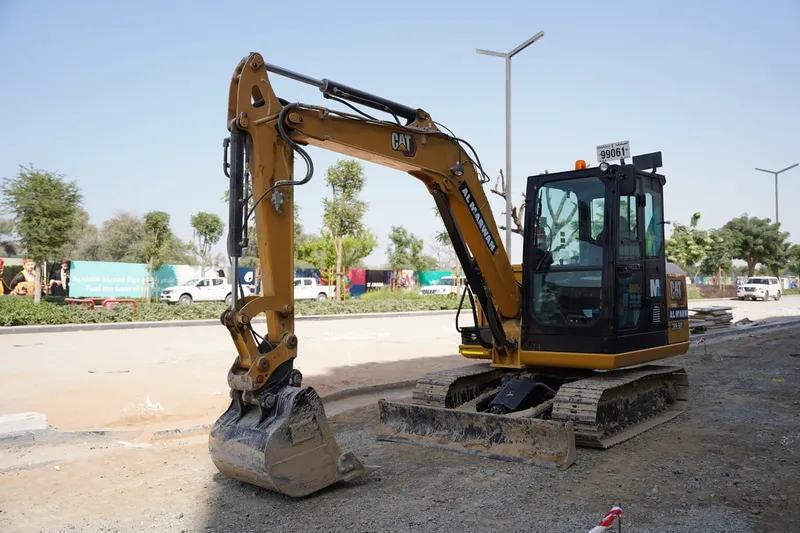

Digging Depth and Reach:

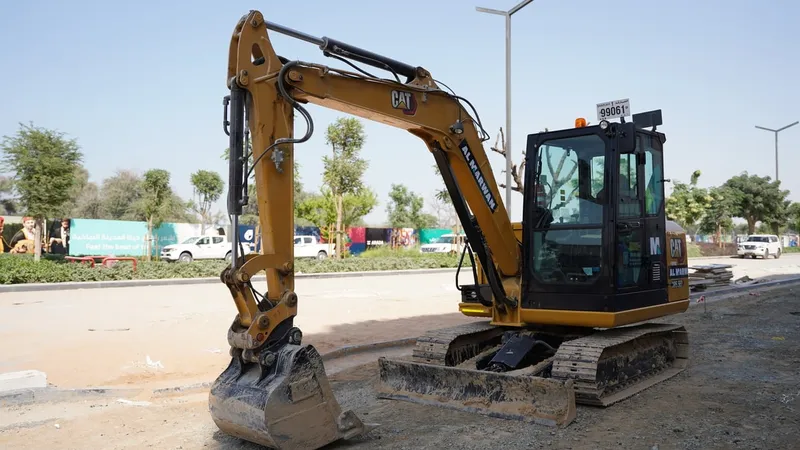

Designed for shallower depths and shorter reaches compared to larger excavators, they might be inadequate for deep trenching or reaching over obstacles.

Lifting Capacity:

Their lower lifting capacity restricts their use in heavy demolition or lifting extremely heavy loads.

Stability:

Being lighter than larger machines, mini excavators can be less stable on uneven terrain, posing challenges in rocky or sloped environments.

Fuel Capacity:

Their smaller fuel tanks mean they require more frequent refueling, limiting continuous running time compared to larger excavators.

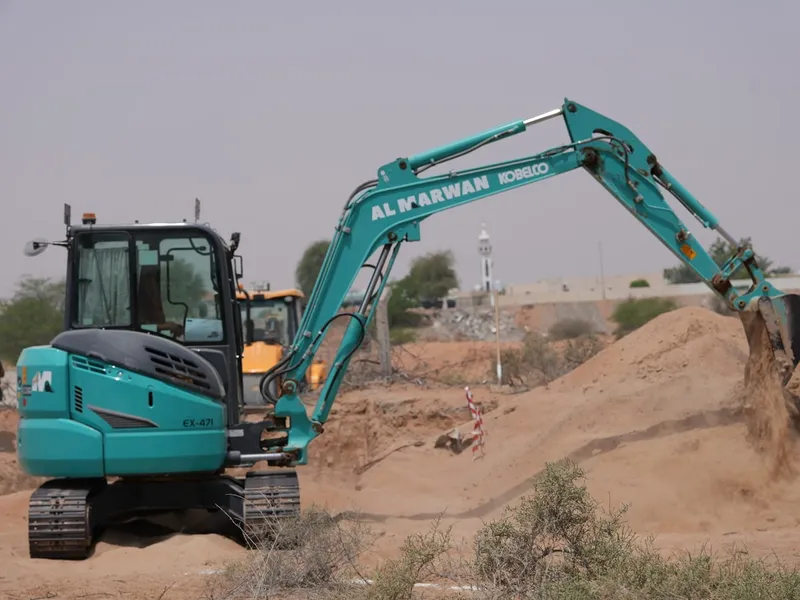

Improving Mini Excavators: Customization and Attachments

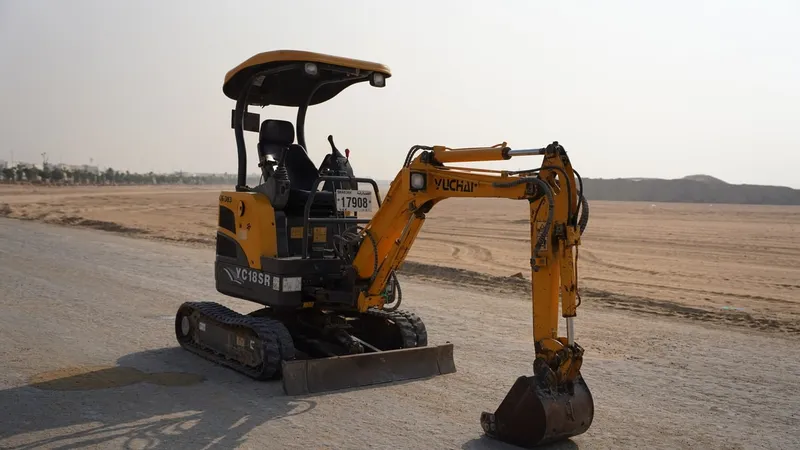

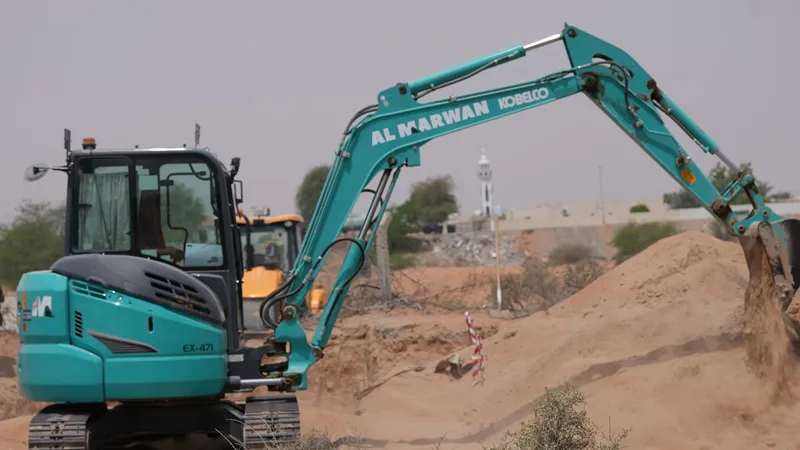

Improvements and customizations on mini excavators can significantly enhance their functionality, making compact excavators for sale even more appealing. Operators can choose between an open canopy or enclosed cabins. Open canopies are often preferred for smaller excavators in mild climates where climate control isn't a major concern. Regarding tracks, there's a choice between steel or rubber tracks. Rubber tracks are beneficial when working on finished floors or sensitive soils to minimize damage, while steel tracks provide greater durability and stability on rough or uneven terrain. These customizations allow operators to tailor their mini excavator to specific project needs and working conditions.

Attachments significantly expand the capabilities of mini excavators, transforming them into multipurpose tools. Options range from various bucket types for specific digging needs, to brooms for site cleanup, grading buckets for leveling, rippers for breaking up hard soil, and even augers and drills for precise drilling jobs. By selecting the appropriate attachment, a mini excavator can efficiently perform a wide array of tasks, far beyond standard excavation. For more details on maximizing your mini excavator's potential with attachments, check out our complete guide to mini excavator attachments.

Mini Excavator Alternatives

Popular alternatives to mini excavators include skid steer loaders/compact track loaders, and backhoe loaders. Skid loaders, while lacking the digging depth and capacity of mini excavators, can perform similar tasks with attachments like buckets, forks, and augers. Backhoes combine the capabilities of loaders and excavators, and are used for digging, trenching, and demolition in construction and landscaping, they have shallower digging depths and are less maneuverable than mini excavators, making them less ideal for tight spaces or deep trenching. Each alternative offers distinct capabilities, suitable for different project needs.

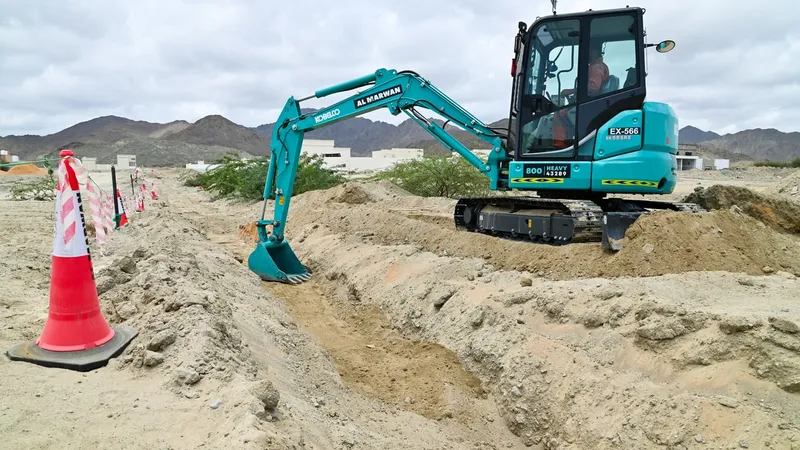

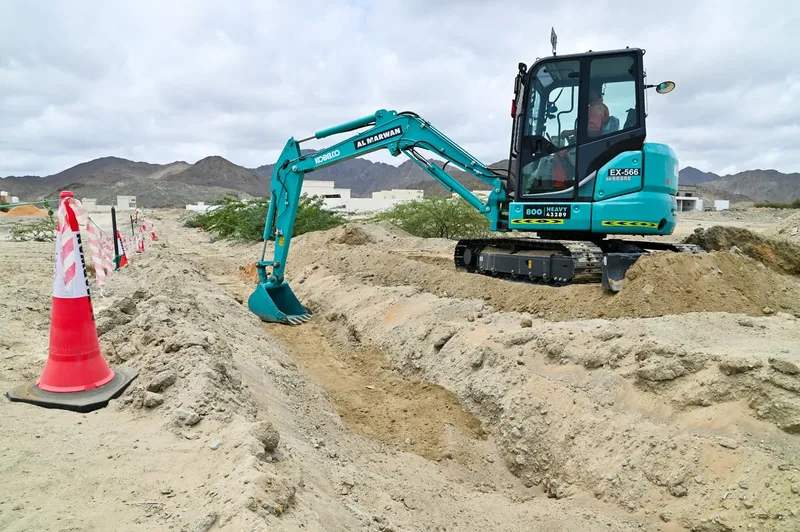

Mini excavators are versatile and efficient machines suited for various tasks in construction and landscaping. With different sizes, specifications, and the ability to be customized with attachments, they cater to diverse project requirements. If you're considering adding this valuable equipment to your fleet, feel free to browse our selection of mini excavators available for rent or sale.

FAQ

Q1: How are mini excavators classified by size and weight?

A: Mini excavators, also known as compact excavators, are generally classified into four main size segments ranging from under 1 ton up to 10 tons. The smallest micro units (under 1 to 2 tons) are designed for tight residential backyard tasks and indoor demolition, while mid-sized compact models (3 to 5 tons) handle utility line installations, and the heaviest units (6 to 10 tons) function as powerful, low-ground-pressure options for commercial civil works.

Q2: What are the most important technical specifications to check before renting a mini excavator?

A: The most critical technical specifications to evaluate are the operating weight, maximum digging depth, bucket breakout force, and transport dimensions. Operating weight determines the machine’s lifting stability and ground pressure on sensitive surfaces, while knowing the transport dimensions (length, width, and canopy height) is absolutely essential for arranging safe hauling, shipping, and entry through confined spaces.

Q3: What is the average digging depth and reach of a standard 5-ton mini excavator?

A: A standard 5-ton mini excavator typically delivers a maximum digging depth of up to 4 meters and a horizontal digging reach of roughly 5 to 6 meters. This specific operational envelope makes 5-ton models the most popular choice for general contracting, as they provide enough vertical depth to safely lay deep water pipes and structural footings without requiring the immense footprint of a full-size crawler excavator.

Q4: When should you choose rubber tracks over steel tracks on a compact excavator?

A: You should choose rubber tracks when operating on finished surfaces like asphalt, concrete, pavement, or manicured lawns because rubber minimizes surface scarring and protects delicate ground from high-impact structural damage. Conversely, steel tracks should be prioritized for rough, unmanaged construction sites, jagged rocky terrains, or heavy demolition zones where sharp debris would easily puncture or tear a rubber belt.

Q5: What are the main project limitations of using a mini excavator over a medium or large excavator?

A: The main limitations of a mini excavator are its shallower maximum digging depth, smaller bucket capacity, and significantly lower lifting thresholds. While compact models excel at navigating narrow, tight alleys and working on weight-sensitive soils without causing sinkage, they lack the massive hydraulic breakout force and fuel capacity required for mass-scale earthmoving, deep quarry mining, or heavy pipeline construction over major obstacles.
