What Crawler Crane Attachments Should You Choose?

From piling work to lifting massive loads, crawler crane attachments provide flexibility and efficiency to meet diverse job site requirements,  these specialized attachments are added to cranes to extend the versatility of it and perform different job requirements. Common attachments for crawler cranes include jib extensions for increasing reach, clamshell buckets for material handling, pile drivers for foundation work, and augers for drilling.

As the authorized Kobelco crawler crane dealer in the UAE, Oman, Saudi Arabia, and beyond, Al Marwan Machinery brings you this handy guide to crawler crane attachments which will help you understand how choosing the right attachment can boost the performance of your crawler cranes.

Why Attachments Matter for Crawler Cranes

Crawler cranes on their own are able to perform heavy lifting with ease, but it is their attachments that define how effectively they can perform specific tasks. For example, Kobelco cranes are designed to be attached to a range of attachments to increase the crane's productivity and reach, allowing them to perform everything from general construction work to specialized jobs like foundation laying or dredging, making them even more versatile to meet the specific demands of your project.

Types of Crawler Crane Attachments

1. Jib Extensions

Jib extensions increase the reach of the crane, which is particularly beneficial when working on tall structures or at great distances. This attachment allows the crane to lift loads higher or extend further horizontally without the need to move the base machine.

Usage: High-rise building projects, large infrastructure projects

Benefits: Although lifting capacity decreases, the extended boom provides greater reach.

2. Pile Driver

Pile drivers are essential for foundation construction. They are typically used to drive piles into the ground to provide foundational support for buildings or large infrastructure projects like bridges.

Usage: Foundation work, marine construction

Benefits: Enhances ground stability, critical for heavy-duty construction

According to industry statistics, demand for pile-driving equipment is expected to rise by 6 - 7% from 2021 to 2031 as construction moves toward more complex infrastructure projects.

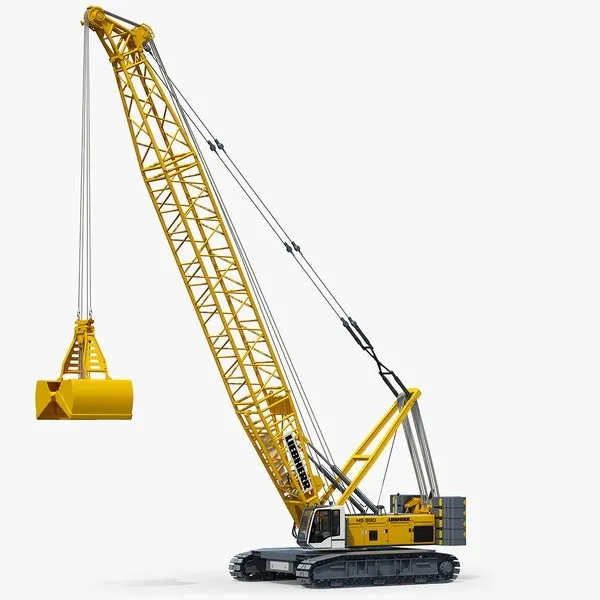

3. Clamshell Buckets

Clamshell buckets are designed for digging and material handling. These attachments make crawler cranes incredibly effective for bulk material excavation and dredging.

Usage: Dredging, bulk material handling, and digging

Benefits: Reduces manual labor, enhances operational efficiency

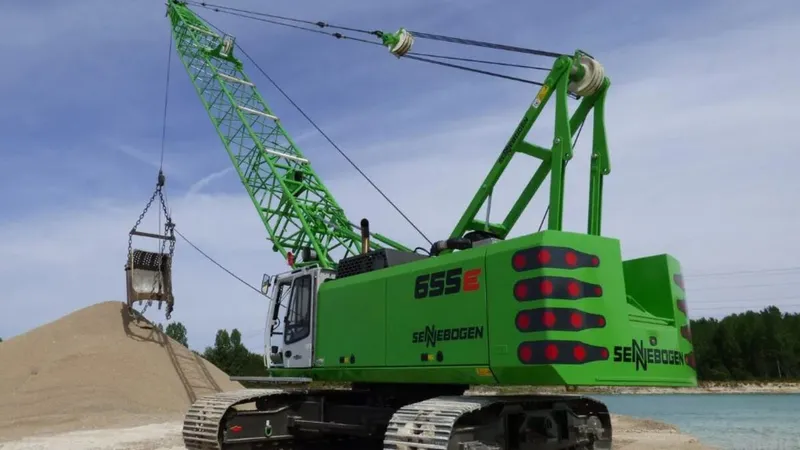

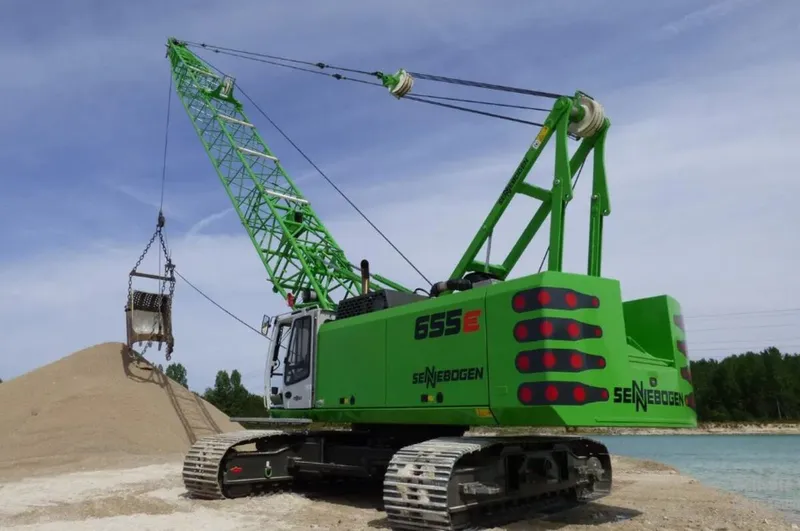

4. Dragline Buckets

Dragline buckets are used for heavy-duty digging and excavation, especially in mining, dredging, and construction applications. A properly equipped Kobelco crawler crane can lift and move several tons of material with a dragline bucket in a single operation.

Usage: Mining, river dredging, large-scale excavation

Benefits: Effective for deep digging and bulk material moving

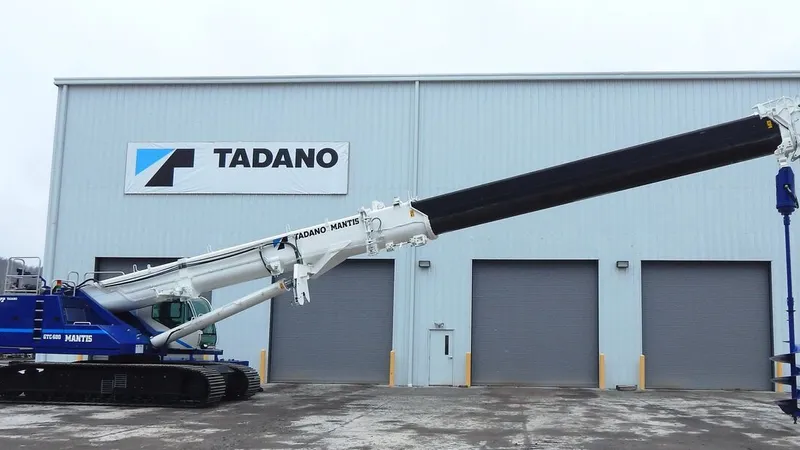

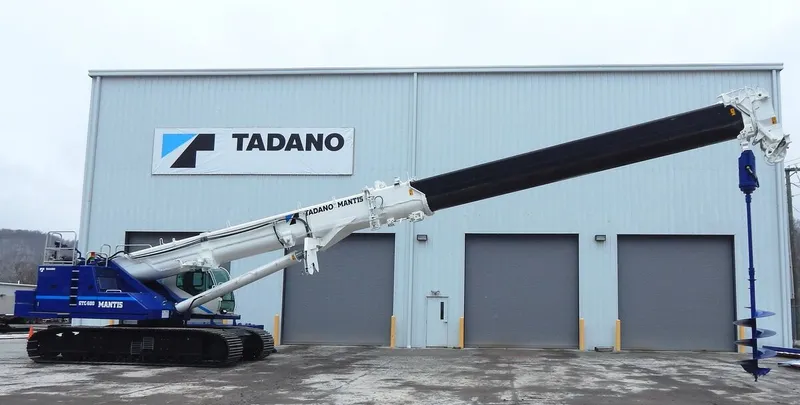

5. Augers

Augers are designed for drilling holes into the ground, typically for installing poles, piers, or foundations. They come in various sizes and are perfect for deep foundation work in construction and landscaping.

Usage: Drilling, landscaping, foundation work

Benefits: Precise and fast drilling reduces manual digging time

Augers are highly popular in the Middle East construction market, with demand expected to grow by 6% from 2023 to 2031 due to the increase in large-scale infrastructure projects.

6. Grapples

Grapples are designed for picking up and moving large, irregularly shaped materials such as logs, scrap metal, and demolition debris. These attachments are commonly used in forestry, scrap yards, and demolition sites. Grapples enhance operational efficiency, especially when dealing with materials that are difficult to handle with traditional buckets or lifting hooks

Usage: Forestry, demolition, material handling

Benefits: Strong grip, excellent for moving oversized materials

8. Grapple Saws

Grapple saws combine the gripping ability of a grapple with the cutting power of a saw. This attachment is mainly used in forestry for cutting and moving large trees or in demolition for cutting beams or steel structures.

Usage: Forestry, demolition

Benefits: Cuts and moves materials simultaneously, reduces time spent on tasks

9. Demolition Equipment

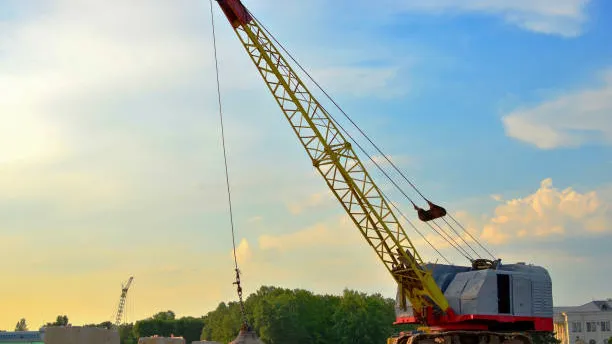

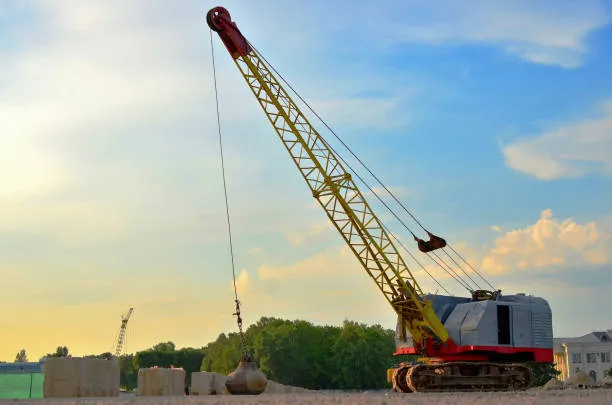

Crawler cranes outfitted with specialized demolition attachments, like wrecking balls or hydraulic shears, are ideal for tearing down old structures.

Usage: Building demolition, site clearing

Benefits: Safely removes large structures, reduces human effort

How to Choose the Right crawler Crane Attachment for Your Project

There are several factors to consider when deciding which heavy-duty crane attachments suit your needs.

1. Type of Work

The most important factor is the type of work your project requires. Are you focusing on foundational work, material handling, or demolition? For example, pile drivers are essential for foundational work, while grapples are necessary for handling scrap materials and debris.

2. Load and Material

Each attachment has a specific load capacity and material suitability. Heavy lifting tasks might require a jib extension, while excavation jobs may be better suited to dragline buckets.

3. Project Scale and Duration

Specific tasks are better performed using certain attachments. For example, when working on a deep foundation work, it’s better to choose an auger for drilling precise holes. However, a clamshell bucket or grapple may be more suitable for material handling, while a jib extension is better for jobs requiring increased reach.

4. Terrain and Location

Project locations can impact your choice of crawler crane parts. For instance, pile drivers are ideal for marine environments or unstable terrain, while clamshell buckets are well-suited for dredging operations in rivers or coastal areas.

5. Budget and Availability

Your project budget will also play a key role in selecting attachments. You may buy used crawler crane attachments to save on costs, especially for short-term projects or those where specialized tools are only needed intermittently.

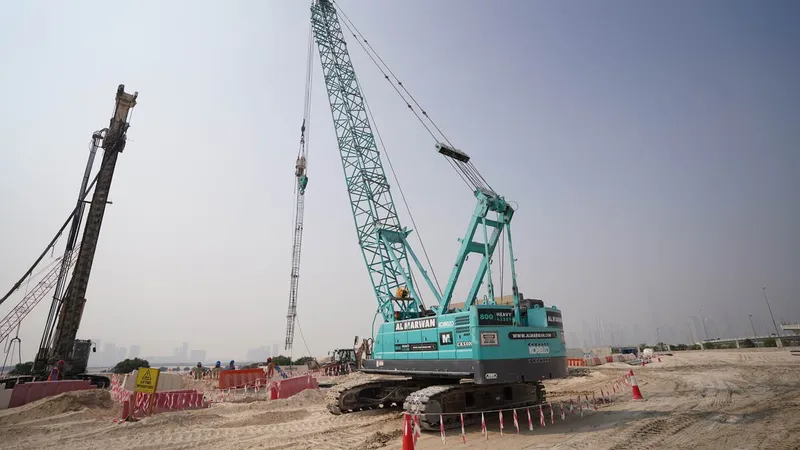

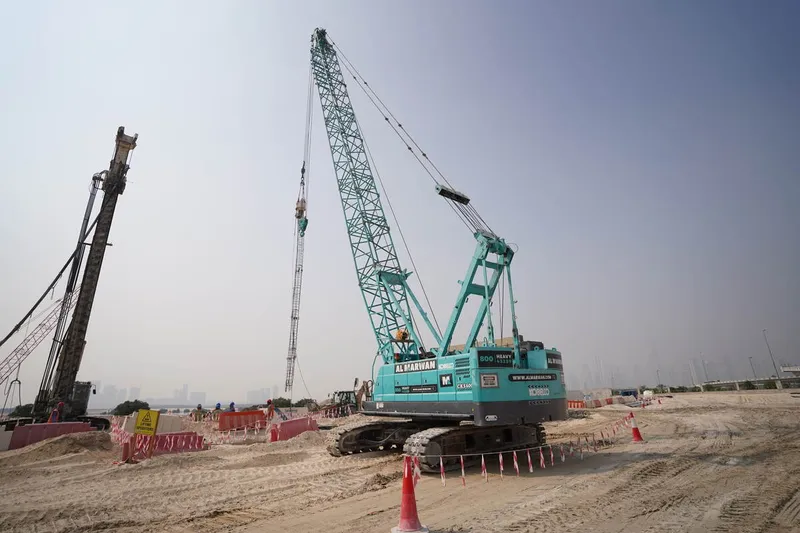

Kobelco Crawler Cranes: The Perfect Platform for Attachments

Kobelco is the market leader when it comes to crawler cranes, known for durability, precision, and adaptability, making them an excellent choice for using a wide range of attachments. Kobelco cranes are engineered to meet the demands of modern construction, capable of handling complex tasks with ease.

Maintaining Your Attachments

attachments need regular maintenance to ensure optimal performance. Keeping them in good condition not only extends their service life but also ensures that safety standards are adhered to.

Regular Inspections

Inspect attachments regularly for wear and tear, especially at connection points, bolts, and hydraulic systems. Replacing worn parts early on can prevent more significant issues from arising.

Lubrication

Lubricate moving parts to reduce friction and prevent rust. Keeping components well-oiled ensures smooth operation, especially for crawler crane attachments like grapples and clamshell buckets, which have multiple moving parts.

Cleaning and Storage

After use, particularly in harsh environments like dredging or demolition, clean the attachments thoroughly to remove dirt, debris, and corrosive materials. Proper storage is also critical to avoid environmental damage, particularly for sensitive components like hydraulic hoses or sensors.

Service Records

Maintain service records for all crawler crane parts and attachments. Keeping detailed records ensures that inspections and maintenance are performed at the right intervals and allows you to track the longevity and performance of each equipment.

Using Outriggers for Certain Crawler Crane Attachments

Outriggers are retractable metal legs that extend from the crane's base to provide additional stability when lifting heavy loads. They are primarily used with mobile cranes to give the support needed to stand still.

While crawler cranes are known for their stability due to their wide tracks that distribute the load evenly without additional support, some attachments may still require extra support to ensure safe and efficient operations. This is where outriggers come into play.

How Outriggers Work with Attachments

Outriggers are telescopic legs that extend horizontally and then vertically from the sides of the crane. Once deployed, they distribute the load more evenly over a larger surface area, helping the crane maintain its balance. This is particularly useful when using heavy-duty crane attachments like dragline buckets, which are designed for deep excavation and moving large volumes of material.

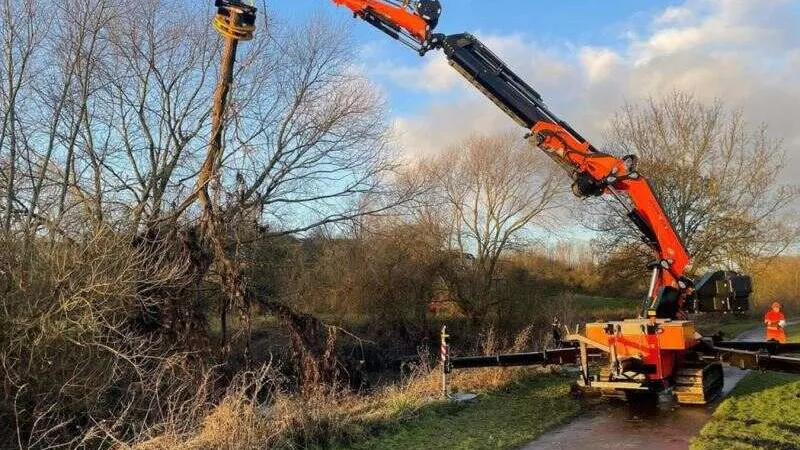

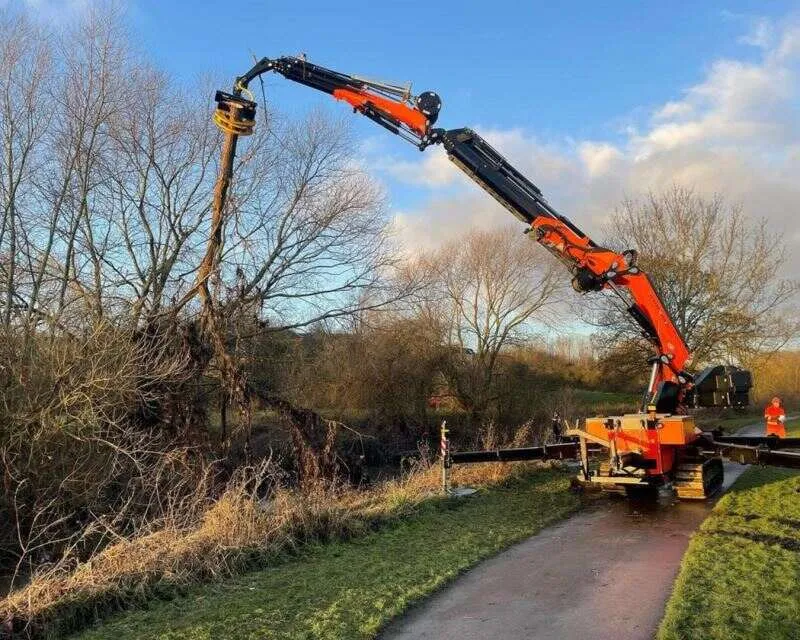

For instance, if a crawler crane is equipped with a grapple saw for forestry work like the image added above, the crane might need to maneuver heavy or awkwardly shaped materials. The additional weight or the complexity of the movement could cause instability, especially if the crane is operating on a slope or uneven terrain. In this case, deploying outriggers adds an extra layer of safety, ensuring the crane remains steady during lifting and maneuvering.

More Questions on Cranes Attachments?

1. What common types of attachments are available for crawler cranes?

A wide variety of attachments are available for crawler cranes, each designed for specific applications. Common attachments include:
- Jib Extensions: Increase the crane's reach for high or distant lifts.
- Augers: Used for drilling holes in the ground, ideal for foundation work.
- Clamshell Buckets: Perfect for digging and material handling, especially in dredging operations.
- Pile Drivers: Essential for installing piles in foundation construction.
- Grapples: Designed for picking up and moving large, irregular materials, such as logs or scrap metal.
- Dragline Buckets: Used for heavy-duty excavation in mining and construction. Each attachment is engineered to maximize the crane's performance for specific tasks.

2. Do crawler cranes require outriggers when using attachments?

Crawler cranes generally don’t require outriggers due to their stable track system, which distributes weight evenly across the ground. However, certain heavy-duty attachments, such as large pile drivers, may benefit from additional stability, especially on uneven terrain. In these cases, using outriggers can provide extra balance and safety, preventing the crane from tipping over during operation.

3. Are attachments interchangeable between different crane models?

Some attachments may be interchangeable between different crane models, but compatibility varies based on design and specifications. Always check the manufacturer's guidelines for both the crane and the attachment. It's essential to ensure that the attachment is designed to work with the specific model of your crawler crane, as using an incompatible attachment can lead to safety risks or mechanical issues.

4. Do crawler cranes require specific attachments for different industries?

Yes, different industries often have specific requirements for attachments based on the types of tasks they perform. For instance, in the construction industry, attachments like clamshell buckets and pile drivers are commonly used for foundational work and heavy lifting. In forestry, grapples and grapple saws are essential for cutting and moving trees or debris. Marine construction often utilizes augers and clamshell buckets for dredging and underwater foundation work, while in the mining sector, dragline buckets are crucial for moving large quantities of earth or minerals.

5. How do I determine the correct attachment size for my crawler crane?

The correct attachment size for your crawler crane is determined by several factors, including the crane’s load capacity, the type of work you'll be performing, and the dimensions of the materials you'll be handling. Always refer to the manufacturer's specifications for both the crane and the attachment, and consult with an expert if you're unsure about sizing.

6. Are there specific crawler crane attachments for demolition projects?

Yes, there are several specialized attachments designed specifically for demolition projects. Hydraulic shears, wrecking balls, and concrete crushers are among the most common.
