Earthmoving Face-Off: Dozers vs. Motor Graders Explained

Dozers and motor graders are widely used heavy machinery on construction sites. While they may look similar to the untrained eye, their purposes are quite different.

So, which one do you need? A dozer for power-driven earthmoving or a motor grader for precision grading? If you're in the market for used construction machinery, like a used bulldozer for sale or a motor grader for sale, understanding their applications will help you make the best decision.

What is a Dozer?

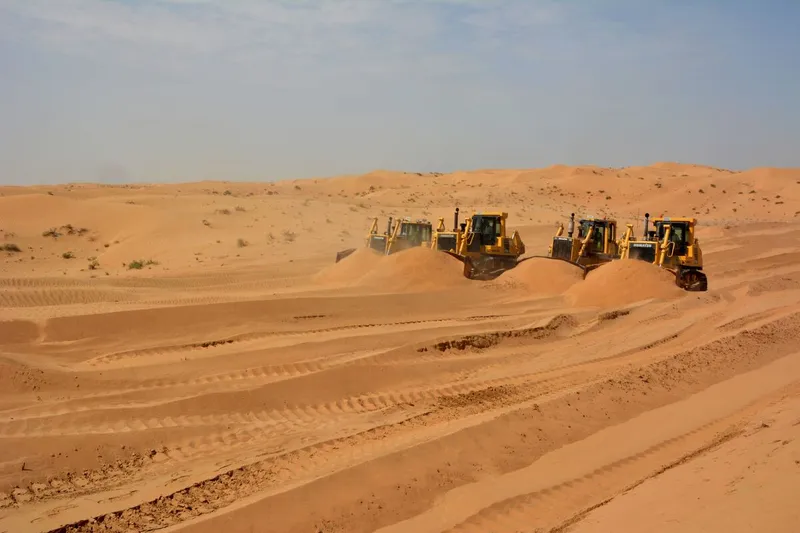

A bulldozer (or simply "dozer") is a heavy-duty earthmoving machine designed for pushing, leveling, and clearing materials. Available in multiple size classes, it features a large, front-mounted metal blade and is commonly track-driven, which enhances traction on rough or muddy terrain. Some models also come with rippers at the back for breaking up compacted soil or rock.

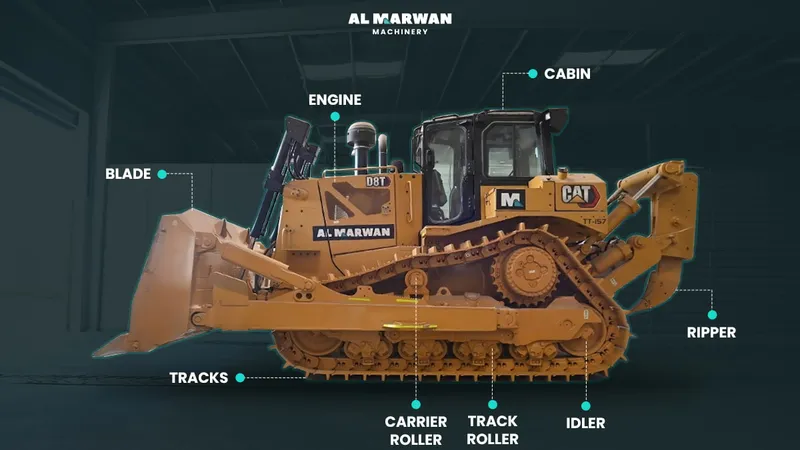

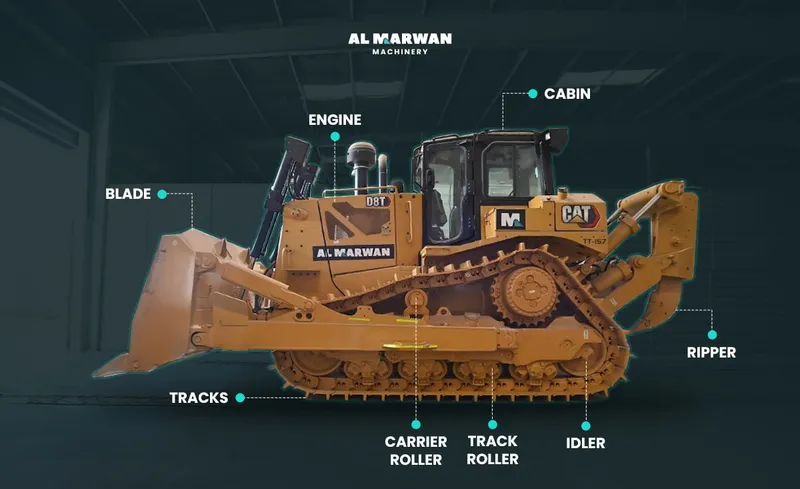

Main Parts of a Bulldozer

1. Blade (front-mounted)

The blade is the most defining feature of a dozer. It is used to push soil, rocks, debris, or other materials. Dozer blades come in different types:

• Straight Blade (S-Blade): Best for fine grading on hard surfaces.
• Universal Blade (U-Blade): Curved edges help push large quantities of material.
• Semi-U Blade (SU-Blade): A mix of the straight and universal blade, useful for moderate pushing.
• Angle Blade: Can be adjusted to move material sideways.
• Power-Angle-Tilt (PAT) Blade: Fully adjustable for versatile grading tasks.

2. Tracks or wheels

Most dozers have tracks, providing excellent traction and stability on uneven, muddy, or soft terrain. However, wheeled bulldozers exist for projects requiring greater mobility on firm ground.

3. Ripper (rear attachment)

A ripper is a claw-like attachment located at the back of the dozer. It is used to break up compacted soil, rocks, and hard ground before grading. Single-shank and multi-shank rippers are common in construction and mining projects.

4. Undercarriage

The undercarriage supports the tracks and includes rollers, idlers, sprockets, and track shoes. It plays a crucial role in determining the dozer’s mobility and durability on tough terrains.

6. Operator cabin

Their enclosed, air-conditioned cabins are ideal for operator comfort. Modern models come with joystick controls, digital displays, and ergonomic seats, improving ease of operation.

7. Engine

The engine provides the raw power needed for dozers to push heavy loads. Depending on the size of the dozer, engines range from 80 HP to over 900 HP like the Komatsu D475A dozer which is one of the biggest dozers ever made worldwide.

Common Applications of Dozers

1. Land clearing and site preparation

Before construction begins, dozers remove trees, bushes, debris, and large rocks to prepare the land for development. Their sheer power makes them indispensable for clearing large areas quickly.

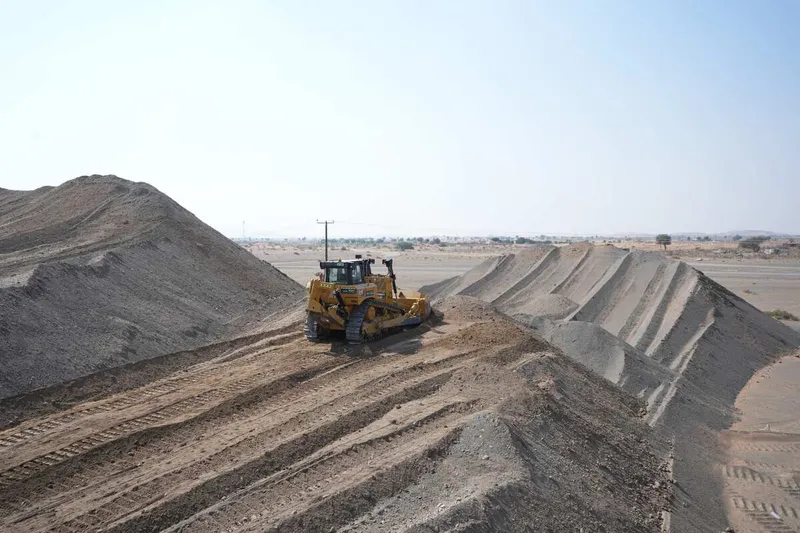

2. Pushing and spreading materials

Dozers efficiently push soil, sand, gravel, and construction debris from one location to another. They are often used in road construction, mining, and landfill operations.

3. Road building and foundation work

When building roads or large structures, bulldozers help level the ground by distributing materials evenly before finer grading is done by a motor grader.

4. Mining and quarrying

In mining operations, dozers help move huge amounts of overburden and assist in material extraction by shifting rock and soil.

5. Agricultural and forestry applications

Dozers are used in large-scale farming and forestry to prepare fields, build access roads, and clear vegetation.

Looking for a Dozer?

If you need a bulldozer for your project, consider new or used bulldozers for sale based on your budget and needs. Used construction equipment can be a cost-effective alternative to purchasing new machines.

What is a Motor Grader?

A motor grader is a precision grading machine equipped with a long, centrally mounted blade (moldboard). Unlike a dozer, which pushes materials, a motor grader smooths and levels surfaces with high accuracy. Many modern graders also feature an articulated frame for better maneuverability.

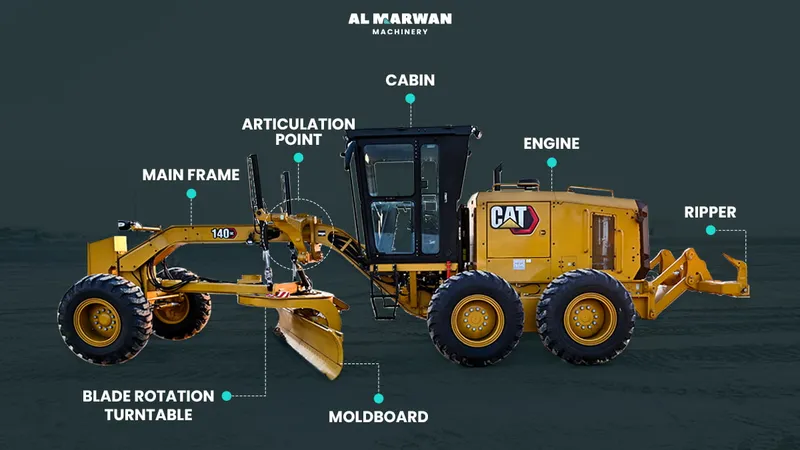

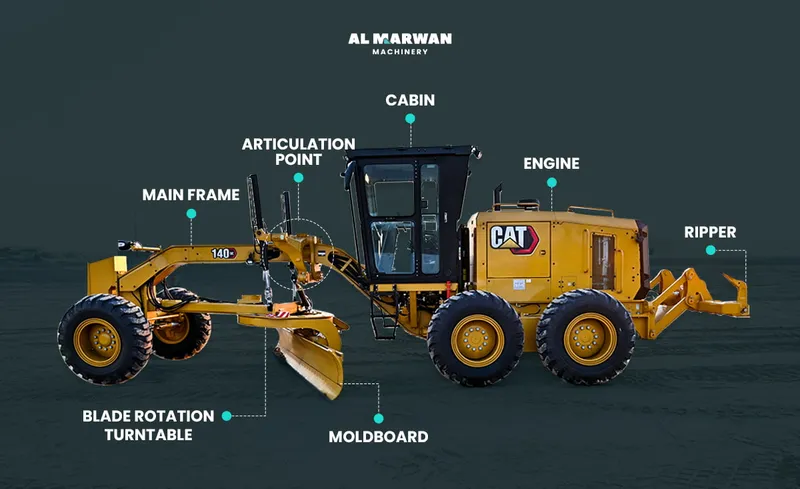

Main Parts of a Motor Grader

1. Moldboard (blade)

The moldboard, or blade, is the central working component of a grader. It is mounted beneath the machine and is used to cut, spread, and level material.

• Blade length: typically 3 to 5 meters, depending on the grader size.
• Angle and tilt adjustments: the blade can be adjusted left or right and tilted forward or backward for precise grading.

2. Circle (blade rotation system)

The circle is the large ring assembly that allows the blade to rotate up to 360 degrees. This enables operators to create angled cuts, smooth slopes, and precise road shaping.

3. Articulated frame

Many modern graders have an articulated frame, which means the front and rear halves of the machine can pivot independently. This improves maneuverability in tight spaces and on curved roads.

4. Front and rear axles

• Front axle: usually can be tilted to adjust the blade’s contact with the ground.
• Rear axle: houses the engine and drive system, providing the machine’s power.

5. Scarifiers and rippers

• Scarifiers are mounted in front of the blade and are used to break compacted materials before grading.
• Rear-mounted rippers are sometimes added for tougher ground-breaking tasks.

6. Operator cabin

Modern graders feature comfortable, enclosed cabins with joystick or lever controls, air conditioning, and digital displays for blade position monitoring.

8. Engine

Motor graders typically have powerful engines ranging from 120 HP to 500 HP, depending on their size and application.

Common Applications of Motor Graders

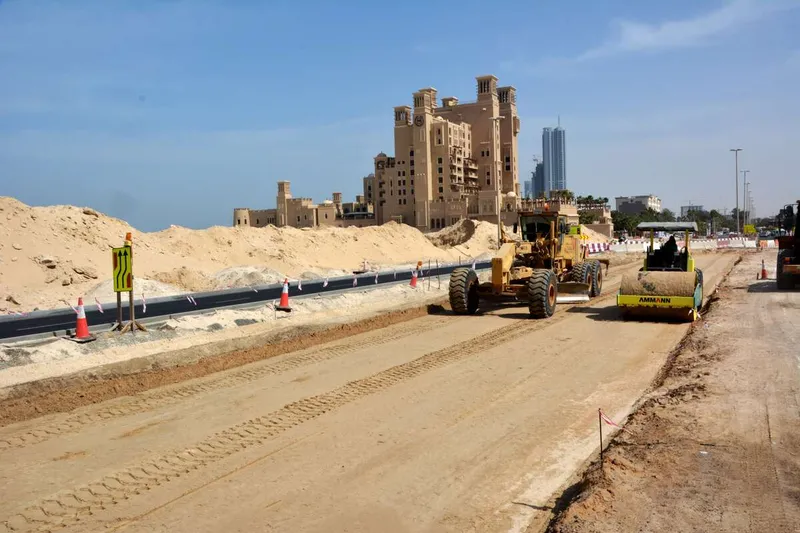

1. Road construction and maintenance

Motor graders are essential in building and maintaining roads. They create a smooth surface for asphalt or concrete paving, ensuring roads are level and properly sloped for drainage.

2. Final grading for construction sites

Before construction begins, a motor grader ensures the ground is evenly graded, creating a stable base for buildings, bridges, and other infrastructure.

3. Ditching and drainage work

Graders shape drainage ditches and slopes alongside roads, preventing water from pooling and causing erosion. Their ability to fine-tune ground angles makes them ideal for water management projects.

4. Mining and large-scale earthmoving

In mining sites, motor graders help maintain haul roads by keeping surfaces smooth and level, reducing wear and tear on trucks and heavy equipment.

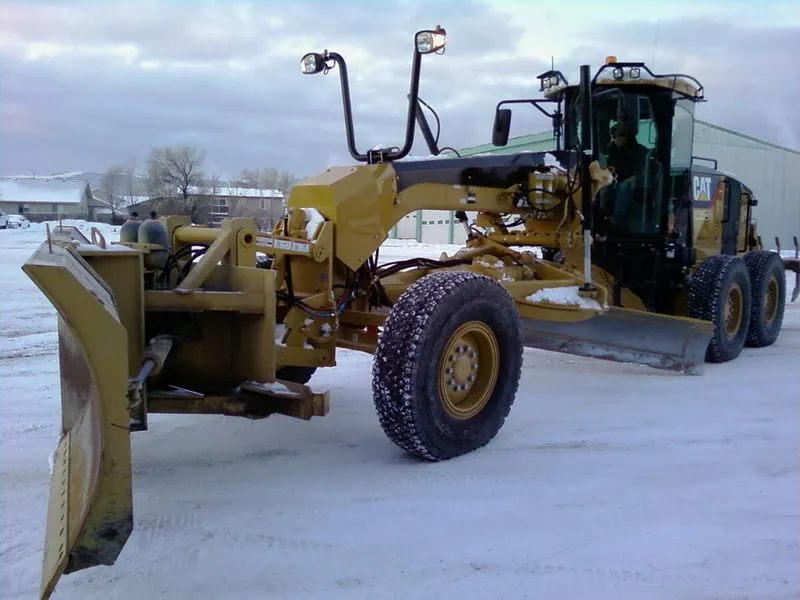

5. Snow removal

While both machines can be used,  motor graders are more common in colder climates to clear snow from roads and highways, providing a cost-effective alternative to dedicated snowplows.

Bulldozer vs. Motor Grader: Key Differences
