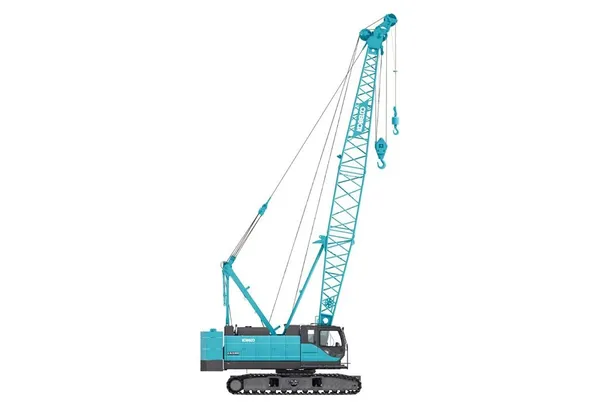

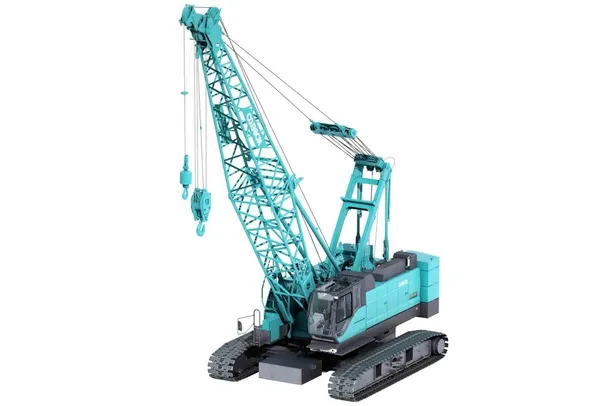

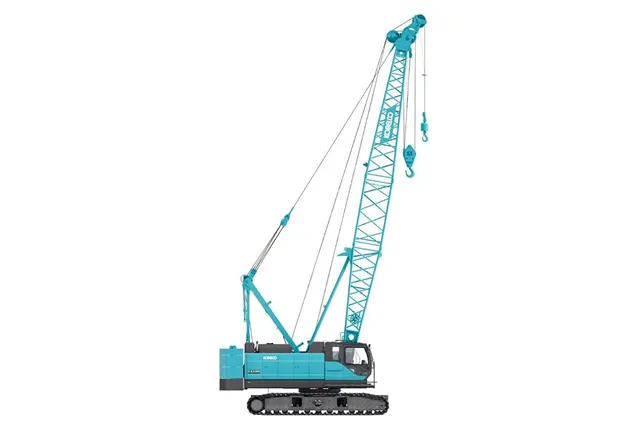

2024 Kobelco CKS900 Crawler Crane

For Sale
Introducing the 2024 Kobelco CKS900 Crawler Crane, redefining heavy lifting with precision and efficiency. With superior capacity and advanced features, such as the Intelligent Boom Control system and...
Warranty
1 Year/2000 Hours Included

Note: Extended warranty only for engine and hydraulic system.

We offer financing fast approvals, and give you the freedom and flexibility to buy what you need, when you need it.

Reference No. AMH159
Working Hours 0
Get in touch
Share
  • Reference Number AMH159
  • Working Hours
    0
  • Operating Weight 90,000 KG
  • Country Of Manufacture Japan
  • Cab Type ROPS
  • Engine Make HINO
  • Engine Model J08E-VM
  • Engine Power 285 hp
  • Fuel Capacity 400 liters
  • Lifting Capacity 100 t x 3.6 m / 90 t x 3.9 m
  • Boom Length 61.0 meter
  • Features
    • 285 hp HINO J08E-VM direct injection turbo-charged engine
    • 3 variable displacement piston pumps
    • Full-flow hydraulic control system for adjustable pressure to winches, propel, and swing
    • Independent hydraulic propel drive in each crawler side frame
    • Hydraulic motor propels driving tumbler through planetary gearbox for each drive
    • Boom & Jib: Welded lattice construction using high-tensile steel chords with pin connections
    • Hydraulic propel system for skid steering and counter-rotating steering
    • Sealed track rollers for maintenance-free operation
    • 4.5 rpm Swing Speed
    • Swing unit powered by hydraulic motor driving spur gears through planetary reducer for 360° rotation
