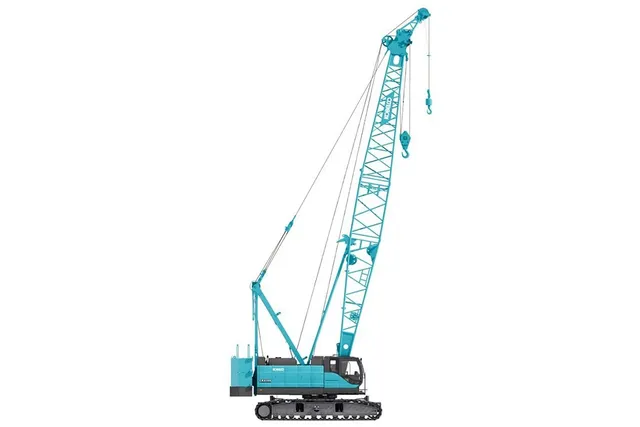

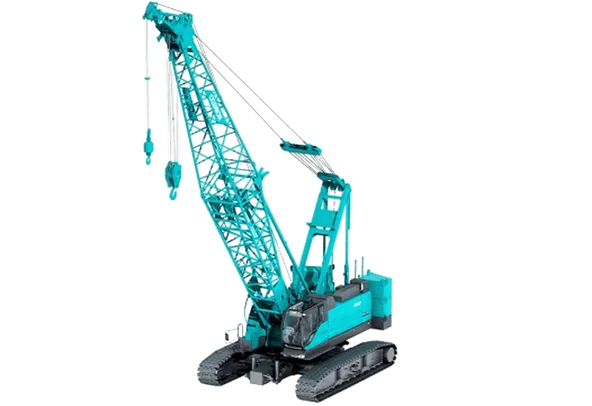

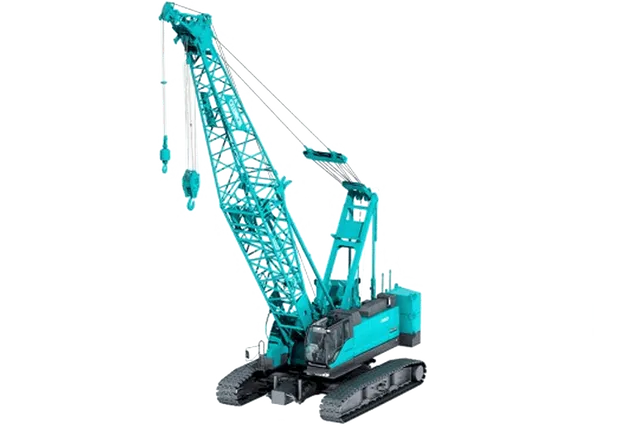

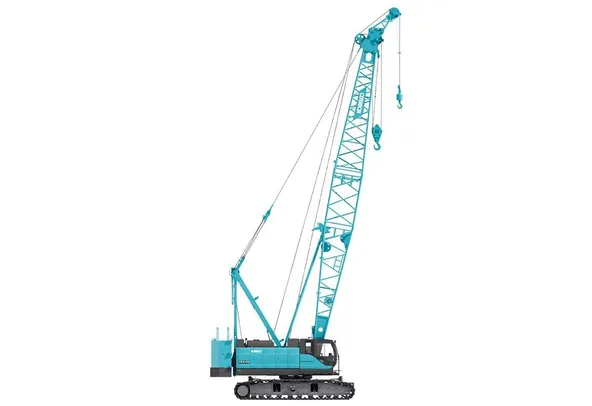

Experience unparalleled lifting power with the 2024 Kobelco CKS1100 Crawler Crane. Engineered with cutting-edge safety features and intuitive controls, this crane ensures efficient and secure operatio...
Warranty
1Year/2000HoursIncluded
Note: Extended warranty only for engine and hydraulic system.
Get more info about availability, price and delivery
We offer financing fast approvals, and give you the
freedom
and flexibility to buy what you need, when you need it.
Reference No.AMH160
Working Hours
0
Get in touch
Share
Reference NumberAMH160
Working Hours
0
Operating Weight110,000 KG
Country Of ManufactureJapan
Cab TypeROPS
Engine MakeHINO
Engine ModelJ08E-VM
Engine Power285 hp
Fuel Capacity400 liters
Lifting Capacity110 t x 3.6 m
Boom Length70.1 meter
Features
285 hp HINO J08E-VM direct injection turbo-charged engine
3 variable displacement piston pumps
Full-flow hydraulic control system for adjustable pressure to winches, propel, and swing
Independent hydraulic propel drive in each crawler side frame
Hydraulic motor propels driving tumbler through planetary gearbox for each drive
Boom & Jib: Welded lattice construction using high-tensile steel chords with pin connections
Hydraulic propel system for skid steering and counter-rotating steering
Sealed track rollers for maintenance-free operation
4.5 rpm Swing Speed
Swing unit powered by hydraulic motor driving spur gears through planetary reducer for 360° rotation
