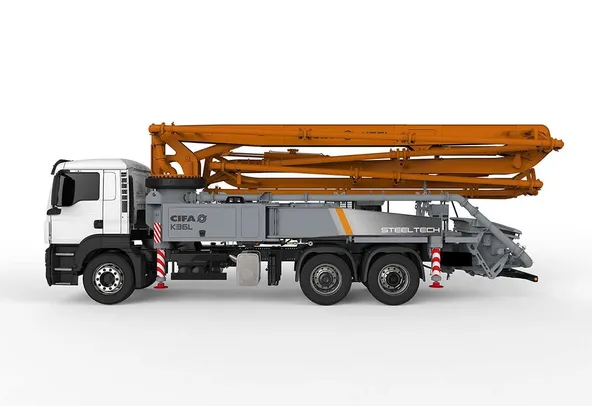

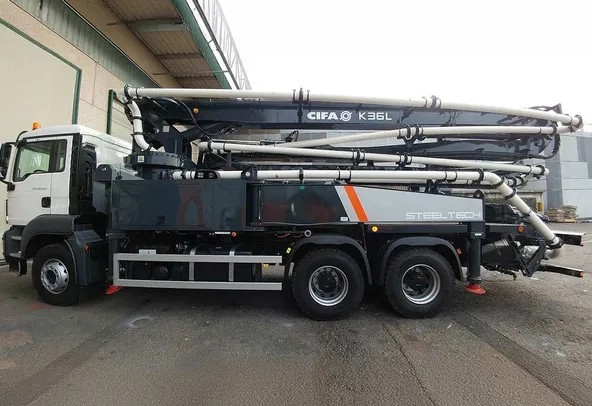

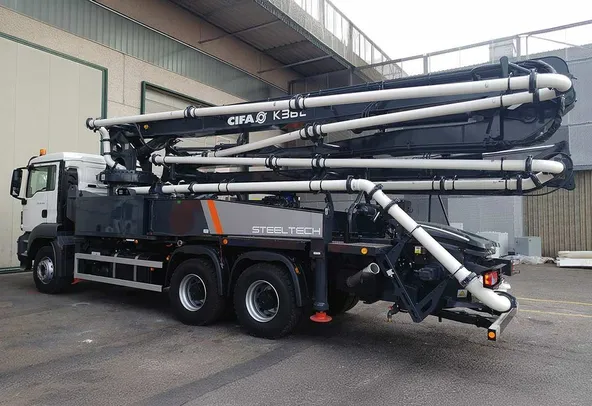

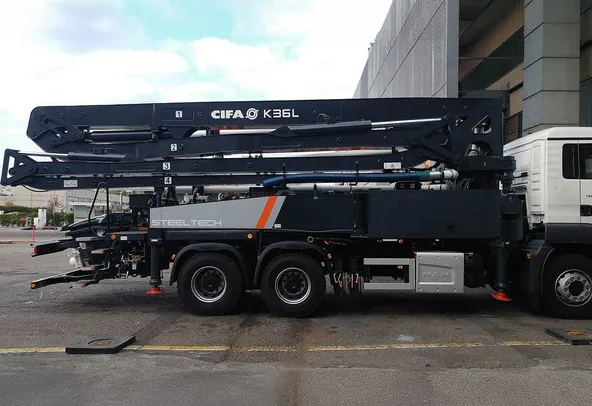

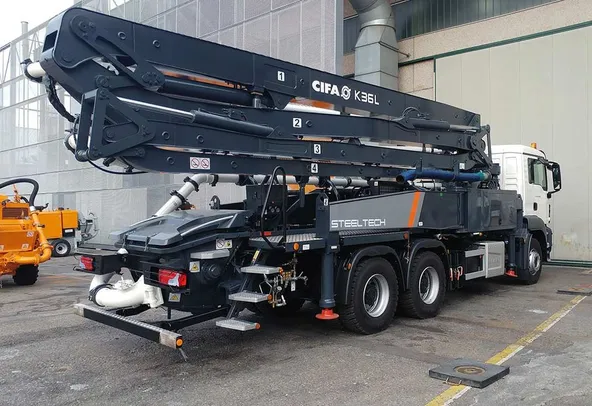

2024 Cifa K36L Concrete Pump Truck

For Sale
The Cifa K36L concrete pump truck features a 36-meter vertical reach and 4-section boom, weighing under 26 tons, it offers excellent payload capacity. mounted on a compact 6x4 4500 mm

We offer financing fast approvals, and give you the freedom and flexibility to buy what you need, when you need it.

Reference No. AMH178
Working Hours 0
Get in touch
Share
  • Reference Number AMH178
  • Working Hours
    0
  • Operating Weight 26,000 KG
  • Boom Length 36 meter
  • Series Steeltech
  • Chassis 3 - 4 Axles
  • Boom Sections 4
  • Max Depth Reach 22.3 meter
  • Folding System Z
  • Min Boom Opening Height 8.4 meter
  • Features
    • Easytronic management system
    • 53/80 bar Max. pressure on concrete
    • 550 liters Concrete hopper capacity
    • Pumping unit - open hydraulic circuit HP1606H
    • Pumping unit - closed hydraulic circuit HP1608EC
    • Automatic rpm management
    • Concrete shut-off valve
    • High pressure water pump (150 bar - 15 l/min)
    • Driven by PTO or gear box
    • Boom control “Load Sensing” proportional distributor
    • Safety opening of concrete discharge door/hopper grille
    • Emergency radio control cable 20 m
    • Plastic water tank with 600-litre capacity
    • Double layer piping with chromium carbide inserts
