How Piling Rigs Lay the Groundwork for Safer Structures

Before concrete is poured, before steel rises into the sky, deep foundation work ensures that structures can stand strong for decades. At the center of this process is one essential machine: the piling rig.

Understanding how piling rigs work and why they’re critical to modern construction can shed light on why deep foundations are the hidden heroes of structural safety. At Al Marwan Machinery, we proudly supply ABI’s German-engineered piling rigs, the gold standard in deep foundation technology, as the exclusive dealer in the UAE and Saudi Arabia.

Why Deep Foundations Matter

Before diving into the equipment itself, it’s essential to understand what’s at stake. Deep foundations are used when the surface soil lacks the strength to support a structure's load. Instead of relying on shallow concrete footings, deep foundations transfer the load to more stable soil or rock layers found deeper underground.

Key benefits of deep foundations include:

• Enhanced load-bearing capacity
• Stability in loose or water-logged soil
• Resistance against seismic and wind-induced stresses
• Reduced settlement over time

What Is a Piling Rig?

A piling rig is a heavy-duty construction machine designed to drill, drive, or vibrate piles into the ground. These piles typically made of steel, concrete, or timber, serve as vertical structural elements that support the weight of a building.

Piling rigs come in different configurations depending on the type of pile installation method required. They are commonly used in infrastructure development, including:

• Skyscrapers and residential towers
• Bridges and flyovers
• Marine structures like ports and jetties
• Power plants and wind farms

At Al Marwan Machinery, we offer a wide range of brand new piling rigs for sale, including state-of-the-art models from ABI Equipment Germany’s industry leader in foundation machinery.

How Piling Rigs Work: Mechanism of Action

Before understanding how piling rigs perform their tasks, it's important to know what makes up a typical rig. Modern piling rigs are complex machines made up of several critical components, each contributing to their powerful performance and precision.

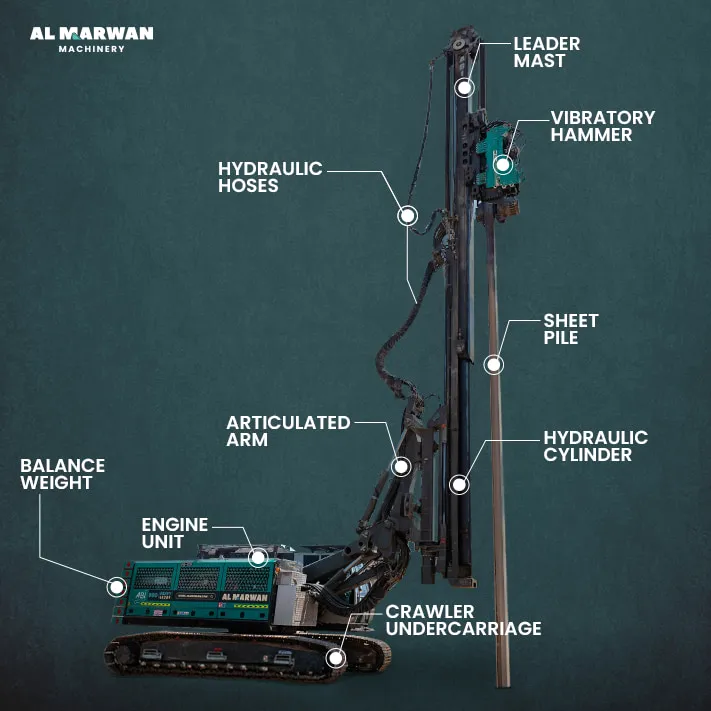

The essential parts of a sheet piling rig is illustrated in the following infographic:

A piling rig consists of key components including the leader mast, vibratory hammer, hydraulic hoses, and hydraulic cylinder for pile driving control. The sheet pile is the steel element being installed, guided by the articulated arm connected to the engine unit. A balance weight ensures stability during operation, while the crawler undercarriage provides mobility on rough terrain.

Let’s now break down the core functions of a modern piling rig and how it contributes to structural safety:

1. Pile Driving (Impact or Vibratory)

In this method, piles are driven directly into the ground using a hammer system. The two common types include:

• Impact hammers: deliver repeated blows to hammer the pile into position.
• Vibratory hammers: use rapid vibration to reduce soil resistance and sink the pile with less noise and disturbance.

ABI's vibratory piling rigs are known for their precision and reduced environmental impact. These machines offer excellent control over pile alignment and are ideal for urban or noise-sensitive zones.

2. Rotary Drilling

Rotary piling rigs are used to drill deep holes into the earth, which are then filled with reinforced concrete. This technique is common in high-rise and bridge construction. ABI drilling rigs feature torque-strong rotary drives and efficient kinematics, ensuring precision and power even in hard ground conditions.

3. CFA (Continuous Flight Auger)

This technique combines drilling and concreting in one continuous process. A hollow-stem auger drills into the soil, and once the desired depth is reached, concrete is pumped through the auger stem as it is withdrawn.

This method is fast, clean, and ideal for sites with limited access or environmental restrictions.

The Role of Piling Rigs in Ensuring Structural Safety

Piling rigs enable building’s foundation to exist in places where traditional shallow foundations would fail. Their role in safety is multifaceted:

1. Load Transfer Efficiency

Piling rigs allow engineers to reach load-bearing strata far below the surface. By transferring the weight of the structure to stronger soil layers or bedrock, the chances of structural settlement or collapse are drastically reduced. This is especially important in regions like the UAE and Saudi Arabia, where soil composition can vary significantly across different construction zones.

2. Seismic Resistance

In earthquake-prone areas, deep foundations built with piles help stabilize structures by minimizing lateral displacement. Properly driven piles using reliable piling rigs create a more uniform distribution of seismic forces throughout the building.

3. Water Table and Soil Challenges

High water tables or soft, compressible soil can make construction extremely risky. Advanced piling techniques, especially those enabled by ABI piling rigs, allow for precise depth control and pile placement even in challenging geotechnical conditions, keeping the foundation dry, level, and durable.

4. Vibration Control and Minimal Disruption

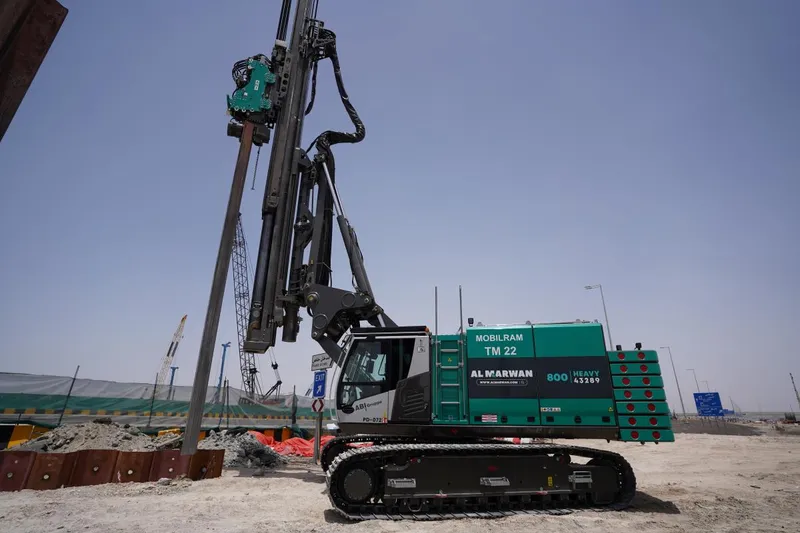

Using state-of-the-art vibratory hammers from ABI like the ABI Mobilram TM22 piling rig reduce vibrations and noise pollution with its 30VV vibratory hammer, making it safer for workers and more suitable for urban projects. This mitigates potential damage to neighboring structures during pile installation.

ABI Piling Rigs: German Engineering for GCC Construction

Al Marwan Machinery is proud to be the exclusive dealer in the UAE and Saudi Arabia for ABI German heavy machinery, a globally respected name known for quality, innovation, and reliability. Our range of ABI piling rigs, vibratory hammers, and drilling rigs offers unmatched performance and is perfectly suited to the region’s construction demands.

Why Choose ABI Piling Rigs?

• German precision engineering for accurate and efficient pile placement
• Versatile applications: drilling, driving, CFA piling, and more
• Robust, operator-friendly designs with advanced safety features
• Modular systems allowing integration with other foundation equipment
• Compliance with international environmental and safety standards

Investing in a Brand New Piling Rig: What to Look For

Thinking about adding a piling rig to your fleet? Here’s what matters most:

Type of work: different projects require different piling methods, impact, vibratory, rotary, or CFA.
Depth requirements: ensure the rig has the power and reach to meet project specifications.
Mobility and size: consider access limitations and terrain at your work site.
Technology integration: modern rigs offer digital monitoring systems for depth, torque, and alignment control.
After-sales support: backed by Al Marwan Machinery, ABI piling rigs come with full local support in the UAE and Saudi Arabia..

We offer new piling rigs for sale and consultative sales support to help match the right machine with your specific project requirements.

Why Buy Heavy Equipment from Al Marwan Machinery?

With decades of experience in the heavy equipment sector, Al Marwan Machinery has established itself as a trusted partner to contractors and developers across the Middle East. Our commitment to quality machinery, industry expertise, and after-sales service has made us one of the region’s top names in heavy equipment machinery for sale, and with the opening of our new spare parts showroom in Sharjah, customers can now easily access a complete range of genuine spare parts for equipment purchased through almarwan.com.

As the exclusive dealer for ABI Equipment in the UAE and Saudi Arabia, we provide:

• A wide range of drilling and construction equipment for sale
• Full-service maintenance and spare parts
• Expert advice tailored to local ground conditions
• Operator training and technical onboarding
• Flexible purchasing and rental options
