Guide to Hydraulic Cylinders: Maintenance, Mechanics, and Sourcing

The hydraulic cylinder is the cornerstone of the construction world. These mechanical muscles are responsible for the sheer force required to transform landscapes, from the precision of a mini excavator to the massive lifting power of a 100-ton crawler crane.

Understanding the complexity of these machinery parts is essential for any fleet manager or operator. When a cylinder underperforms, the efficiency of the entire machine drops, leading to increased fuel consumption and sluggish cycle times.

To support the region's growing infrastructure needs, Al Marwan has officially transitioned its vast inventory to the digital sphere. We have launched our new Spare Parts page on almarwan.com, offering a seamless way to source these critical components.

The Fundamental Mechanics of Hydraulic Power

At its core, a hydraulic cylinder is a linear actuator. It converts the energy stored in hydraulic fluid into a linear motion that powers the machine's attachments. This is achieved through Pascal’s Law, which states that pressure applied to a confined fluid is transmitted undiminished in every direction.

Within the cylinder, this pressure acts against the surface area of the piston, forcing the piston rod to extend or retract. The amount of force generated is a direct product of the fluid pressure and the piston's surface area.

Choosing high-quality machinery parts ensures that this conversion of energy remains efficient. Poorly manufactured cylinders or worn-out internal components can lead to "pressure drops," where the machine fails to reach its rated breakout force.

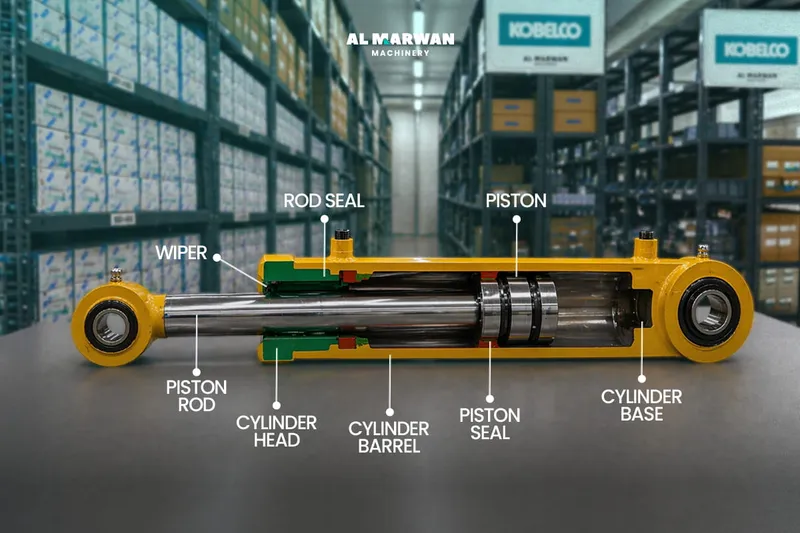

Anatomy of a Hydraulic Cylinder

To maintain your equipment properly, you must understand the individual components that make up a cylinder. Each part plays a specific role in containing high-pressure oil and facilitating smooth movement.

• The Cylinder Barrel: This is the heavy-duty seamless tube that holds the internal pressure. It must be perfectly honed to allow the piston to move without friction.
• The Piston & Rod: The piston is the internal disc that divides the cylinder into two chambers, while the rod is the polished metal arm that extends outside the barrel.
• The Cylinder Head & Gland: These components seal the end of the cylinder where the rod exits. They house the critical seal kits that prevent oil from escaping.
• Seal Kits & O-Rings: These are arguably the most important machinery parts for maintenance. They keep the pressurized oil in and contaminants like desert sand and dust out.

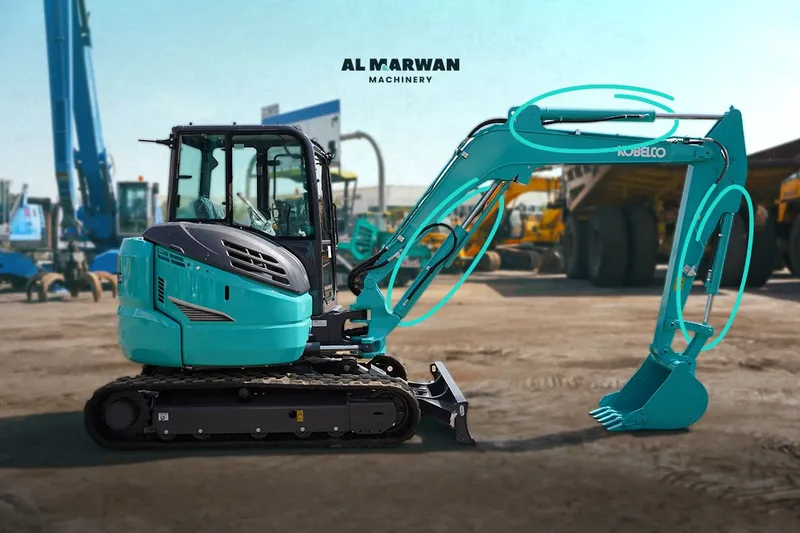

Common Causes of Cylinder Failure

Even the most robust hydraulic systems face wear and tear. In the harsh environments of the GCC, high ambient temperatures and abrasive dust are the primary enemies of machinery parts.

Side Loading is a frequent cause of failure. This occurs when the cylinder is forced to move in a direction it wasn't designed for, causing the rod to rub against the side of the gland. This leads to uneven wear on the seals and can eventually bend the rod itself.

Contamination of the hydraulic fluid is another silent killer. If microscopic particles of metal or dirt enter the system, they act like sandpaper against the polished surfaces of the cylinder. This is why regular fluid analysis and filter changes are non-negotiable.

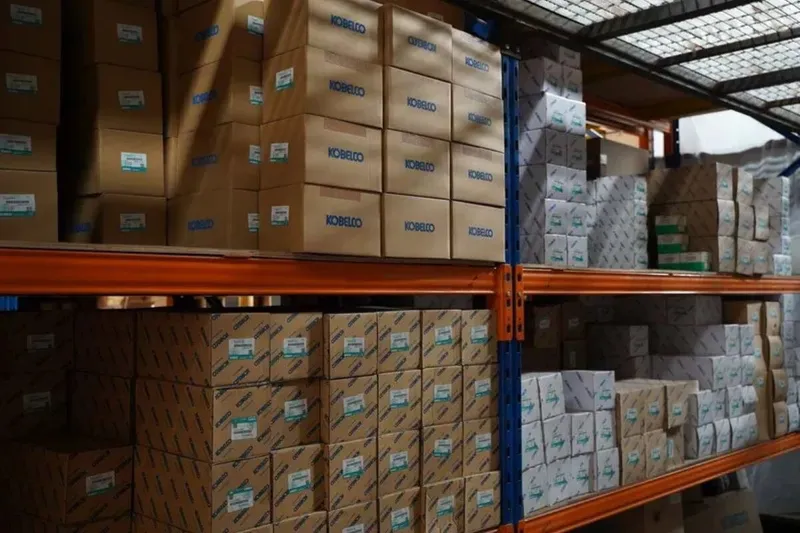

The Digital Evolution: Al Marwan’s New Spare Parts Hub

We recognize that in the modern construction industry, time is the most valuable commodity. That is why we have pioneered a Store-to-Online transition for our clients across the Middle East.

With over 10,000 parts live on almarwan.com, you no longer need to halt operations to visit a physical store. Our new digital platform acts as a premier authorized hub for genuine OEM parts, accessible from any job site.

Whether you are looking for a complete hydraulic drive unit or a specific seal kit for a Kobelco excavator, you can now browse available stock and request a quote with a single click. This digital shift ensures that your machinery stays active and profitable. By sourcing from an authorized dealer, you are guaranteed a part that has been inspected by experts.

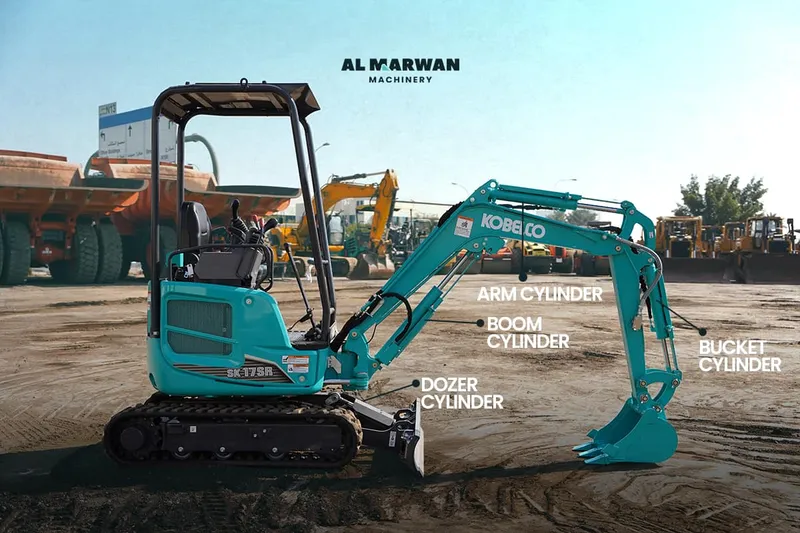

Maintenance Tips for Hydraulic Longevity

Preventive maintenance is the key to avoiding expensive repairs. Always ensure that the wiper seal on your cylinder is in good condition. This seal is the first line of defense, wiping dust off the rod as it retracts into the barrel.

Keep the rods clean. If a machine is going to be stationary for a long period, ensure the rods are retracted to prevent the chrome from being exposed to corrosive elements. If they must remain extended, apply a thin layer of protective grease.

Understanding the difference between consumables and critical components will help you make smarter purchasing decisions. For a deeper breakdown of selecting between OEM, rebuilt, and aftermarket options for your Komatsu excavator, check out our guide to spare parts for heavy equipment. Finally, monitor your Kobelco excavator's hydraulic drive unit for any unusual noise or vibration. Knowing how to replace heavy equipment spare parts before a critical point of failure occurs can save you from replacing the entire system.

Partnering with Al Marwan for Fleet Success

Our commitment to our clients goes beyond just selling equipment. As a leading name in the UAE construction sector, we aim to be your long-term partner in fleet management.

The launch of our digital parts store is a testament to this commitment. By providing instant access to machinery parts and professional technical support, we help you maintain the highest levels of operational readiness.

Visit our new showroom today to speak with our technical experts, or explore the online catalog to see how easy it is to manage your spare parts procurement from the palm of your hand.

Frequently Asked Questions (FAQ)

Can I find parts for brands other than Kobelco?

Yes, our authorized hub stocks genuine parts for various major brands, including Caterpillar, Volvo, and Komatsu, ensuring we can support your entire fleet.

How often should I replace the seals in my hydraulic cylinder?

Seal life depends on the operating environment. In high-heat and high-dust areas like the UAE, we recommend inspecting seals every 500 operating hours and replacing them at the first sign of weeping or pressure loss.

Are the parts on almarwan.com genuine OEM?

Absolutely. We specialize in genuine OEM machinery parts to ensure the highest levels of safety, performance, and durability for our clients' equipment.

What is a hydraulic drive unit, and do you stock them?

The hydraulic drive unit (or final drive) converts hydraulic pressure into torque to move the tracks or wheels of a machine. We carry a wide range of these units on our new Spare Parts page.
