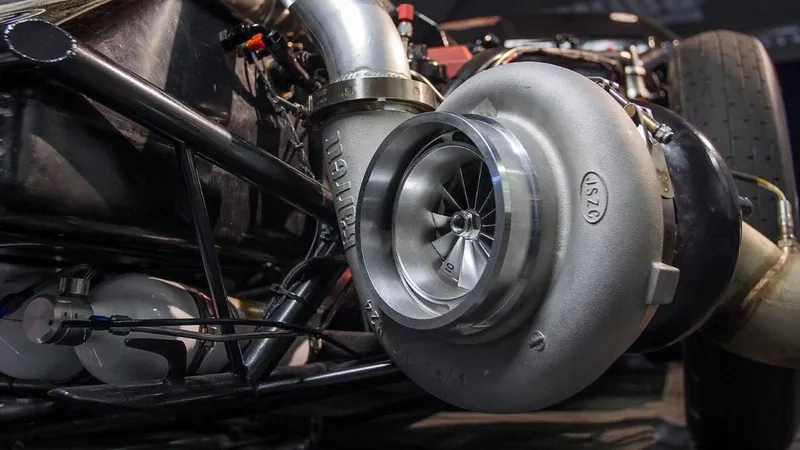

Identifying Turbocharger Damage: Symptoms and Causes

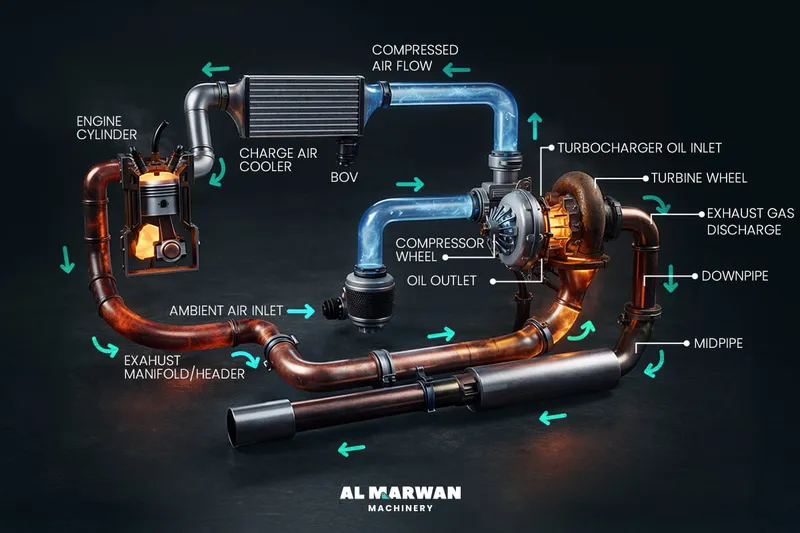

The turbocharger is one of the most critical components in modern heavy machinery engines. It is designed to increase the efficiency and power output of an internal combustion engine by forcing extra compressed air into the combustion chamber. For high-performance equipment like a caterpillar bulldozer, the turbocharger is the difference between peak productivity and sluggish performance.

However, because turbochargers operate at extreme speeds—often exceeding 200,000 RPM—and endure blistering exhaust temperatures, they are under constant mechanical stress. At Al Marwan, we see many fleet owners overlook the early warning signs of turbo failure, leading to catastrophic engine damage. Understanding the symptoms of a damaged turbocharger is the first step in protecting your investment and ensuring your Kobelco excavator stays on the job site.

(cover image credit: aprilparts.com)

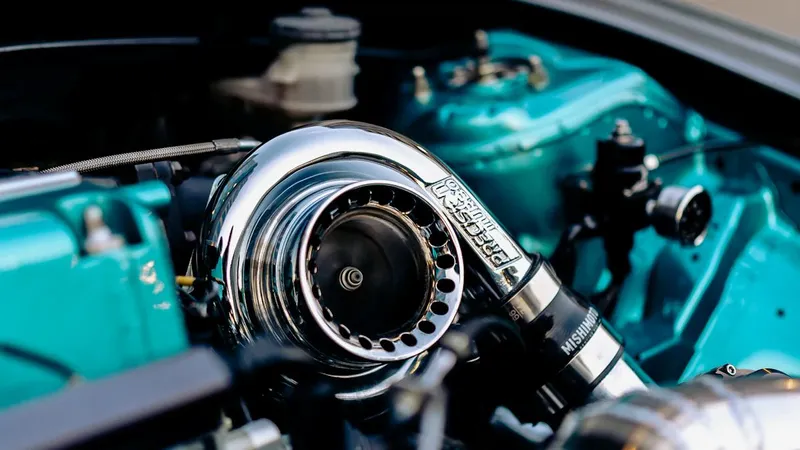

The Most Common Symptoms of a Damaged Turbocharger

Recognizing a failing turbocharger early can save a business thousands of dollars in parts and labor. Most turbo issues do not happen instantly; they provide subtle "hints" before a total breakdown occurs. Here are the primary indicators that your machinery needs immediate mechanical attention.

1. Significant Loss of Power

The most frequent symptom of a failing turbocharger is a noticeable drop in engine performance. If your machine feels sluggish, takes longer to reach its top speed, or struggles to push a heavy load, the turbo is likely failing to provide the necessary boost pressure.

When the compressor wheel is damaged or the wastegate is stuck, the engine cannot receive the oxygen required for efficient combustion. This results in a "suffocating" engine that consumes more fuel while producing less work. For a Caterpillar bulldozer, this loss of power directly impacts your cycle times and fuel economy.

On a heavy-duty Caterpillar bulldozer like the d8 dozer operating in rough terrain, a loss of turbo boost immediately shows up during heavy pushing or slot dozing. Instead of smoothly pushing a full blade of material, the dozer will stall out, drop RPMs under load, and significantly increase cycle times—costing you valuable time and fuel on job sites

2. Excessive Exhaust Smoke

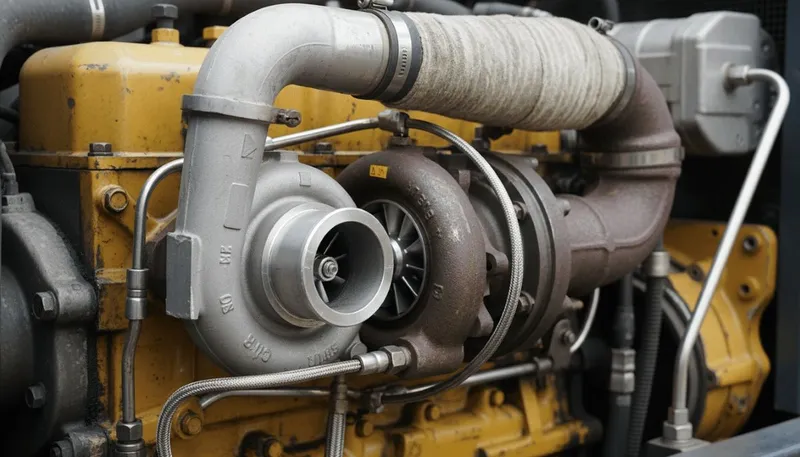

Monitoring the color of your exhaust is a window into the health of your engine. Turbocharger failure often manifests as specific smoke colors, each indicating a different type of internal damage.

• Blue/Grey Smoke: This is caused by oil leaking through the turbocharger’s internal seals and entering the exhaust system. As the oil burns off in the hot exhaust, it creates a distinct blue tint.
• Black Smoke: This indicates an incorrect air-fuel ratio. If the turbo isn't delivering enough air, the engine runs "rich," burning too much fuel and producing thick black soot. This can eventually clog your DPF (Diesel Particulate Filter).

If a Komatsu WA470 Wheel Loader starts billowing thick black smoke every time the operator digs into an aggregate pile, it's a clear sign the turbo isn't supplying enough charge air to match the fuel being injected under heavy acceleration.

3. Unusual Engine Noises

A healthy turbocharger should produce a soft, consistent whine as it spools up. However, if you start hearing a loud whistling or shrieking noise, it usually points to a boost leak in the hoses or a failing compressor wheel.

If the noise turns into a grinding or rattling sound, it is a sign of a severe mechanical failure. This often happens when the internal bearings have failed, allowing the turbine blades to strike the outer housing.

If an operator on a Kobelco Excavator hears a metallic grinding noise coming from the engine bay while swinging or lifting a heavy trench box, shut the machine down immediately. Allowing the turbine blades to scrape the housing will pulverize metal shards into the intake air path, risking total engine destruction.

You can read more on Excavator Maintenance in our previous guide

4. Increased Oil Consumption

If you find yourself constantly topping up the oil level without seeing any leaks on the ground, the turbo may be "consuming" the oil internally. When the internal seals fail, oil is pushed into the intake manifold or the exhaust.

This is particularly dangerous because it can lead to a condition known as "engine runaway," where the engine begins to run on its own lubricating oil. At Al Marwan, we recommend regular oil analysis to catch these leaks before they lead to a total engine rebuild.

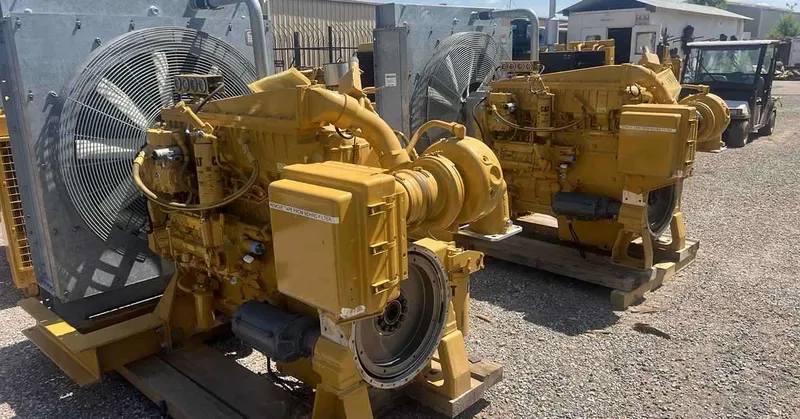

What Causes Turbocharger Damage?

Understanding the "why" is just as important as the "how." Most turbocharger failures are not due to manufacturing defects but rather external factors related to maintenance and operating conditions.

Oil Starvation and Contamination

The turbocharger relies on a constant flow of clean, high-pressure oil to lubricate the high-speed bearings. If the oil is dirty, it acts like sandpaper, grinding down the precision surfaces. If the oil flow is interrupted—even for a few seconds—the heat build-up will cause the shaft to snap or the bearings to seize.

Foreign Object Damage (FOD)

Because the turbine and compressor wheels spin at such high velocities, even a tiny piece of debris can cause massive damage. A small stone, a piece of a broken air filter, or a loose bolt entering the intake will strike the compressor blades like a bullet, causing an instant imbalance and total failure.

Carbon Buildup

When a machine is shut down immediately after heavy work, the oil trapped inside the hot turbocharger can "cook," turning into hard carbon deposits. This process, known as coking, restricts oil flow and damages the seals over time. Always allow your Caterpillar bulldozer to idle for 3–5 minutes before shutting it off.

Is It Worth Repairing or Replacing a Turbocharger?

This is a common dilemma for equipment owners. The answer depends on the severity of the damage and the age of the machine. At Al Marwan, we advise our clients to weigh the following factors:

• Extent of Damage: If only the seals and bearings are worn, a professional rebuild kit is a cost-effective solution. However, if the wheels or the main housing are cracked, repair is impossible.
• Cost vs. Value: A new turbocharger for a Kobelco excavator is an investment in reliability. While a repair is cheaper upfront, a brand-new unit comes with a manufacturer's warranty and a longer expected lifespan.
• Downtime: Replacing a turbo with a new unit is often faster than waiting for a machine shop to rebuild an old one. In the construction industry, time is money.

You can read more about the Al Marwan Repair Checklist in our previous article.

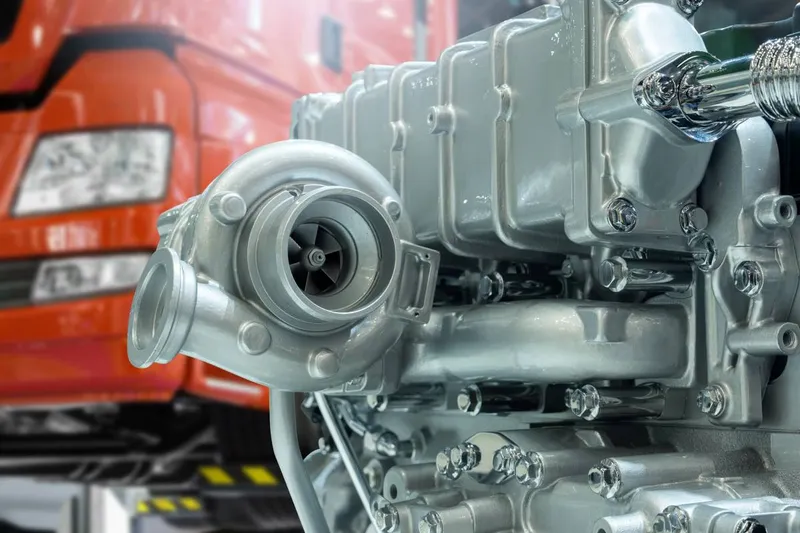

Preventive Maintenance Tips from Al Marwan

To ensure your machinery lives a long and productive life, follow these maintenance best practices:

1. Change Oil Regularly: Use only the manufacturer-recommended oil grade and change filters at the specified intervals.
2. Inspect Air Intake Systems: Ensure there are no leaks or cracks in the air intake pipes that could let in dirt or debris.

3. Warm Up and Cool Down: Never floor the throttle immediately after a cold start, and never shut the engine down hot.
4. Monitor Boost Pressure: Install or check your boost gauge regularly. A pressure drop is often the very first sign of a leak.
5. Schedule Professional Inspections: Bring your equipment to Al Marwan’s specialized maintenance workshop for routine diagnostic checks, expert servicing, and precision repairs before minor wear turns into major damage.

You can read more about Preventive Vs Reactive Machinery Repair in our previous article.

Frequently Asked Questions (FAQ)

Q: Can a bad turbocharger damage my engine?

A: Yes, absolutely. If the turbo blades shatter, metal fragments can be sucked into the engine, destroying pistons and valves. Additionally, an oil leak can lead to engine runaway or oil starvation.

Q: How do I know if the problem is the turbo or just a leak?

A: A "boost leak" (a hole in a hose) often sounds like a loud hissing or "whooshing" air noise. A mechanical turbo failure usually sounds like a high-pitched metal-on-metal whine or grind.

Q: Why is my Kobelco excavator blowing black smoke under load?

A: This is likely due to the turbocharger not providing enough air to burn the fuel completely. This could be caused by a clogged air filter, a stuck wastegate, or a damaged compressor wheel.

Q: Does Al Marwan provide support for turbocharger issues?

A: Yes! At Al Marwan, we specialize in heavy machinery solutions. Whether you are looking for advice on a caterpillar bulldozer or need to source parts for your fleet, our experts are ready to assist.

Q: What is the average lifespan of a heavy equipment turbo?

A: In well-maintained machines, a turbocharger can last between 10,000 to 15,000 hours. However, poor oil quality can reduce this lifespan to less than 1,000 hours.
