Why Are Airports Shaped Like an X?

When you look at some airports from above, the runway layout can look like a giant X, a star, or a pinwheel. It may seem like an architectural choice, but airport shapes are rarely random. Every runway angle, taxiway, apron, and terminal zone is planned around one main question:

How can aircraft take off, land, taxi, refuel, and move passengers safely with minimum delay?

For construction professionals, airport design is also a reminder that mega infrastructure is not only about buildings. It begins with earthworks, grading, paving, drainage, lifting, soil improvement, and thousands of coordinated machine hours.

First, Why Do Some Airports Have an X Shape?

Airports are often shaped like an X because of runway orientation.

Aircraft usually take off and land against the wind, not with it. This gives the wings better lift, improves braking performance, and makes takeoff and landing safer. In locations where wind direction changes often, airports may use runways in different directions. When two or more runways cross or diverge, the layout can look like an X from above.

This type of design is more common in older airports or airports located in areas with variable wind patterns. According to aviation safety references, intersecting runways are often used to provide crosswind options where wind direction changes, although they also require strict air traffic control procedures because intersecting runways can increase operational risk.

In simple words:
the X shape is usually about wind, safety, and operational flexibility.

Is Every Airport Shaped Like an X?

No. Many modern mega airports are not designed as X-shaped airports.

Today, large international hubs usually prefer parallel runway systems. Parallel runways allow more aircraft to land and take off at the same time, especially when there is enough spacing between runways. This increases capacity and reduces delays.

That is why many new airport masterplans, especially in the GCC, are moving toward multiple parallel runways rather than intersecting X-shaped layouts.

X-Shaped Runways vs Parallel Runways

An X-shaped or intersecting runway system gives the airport more options when wind changes direction. However, because runways cross each other, air traffic control must carefully manage aircraft movement to avoid conflicts.

Parallel runways are different. They are designed to handle high traffic volumes. When properly spaced, they support simultaneous arrivals and departures, which is essential for global hubs handling millions of passengers and large cargo operations.

This is why major airport developments today focus less on “airport shape” and more on capacity, safety zones, taxiway efficiency, aircraft stands, cargo access, and future expansion space.

Global Example: Chicago Midway International Airport

Chicago Midway International Airport is a clear example of an airport with an X-shaped runway layout. Its runways intersect at different angles, giving aircraft more options to take off and land according to changing wind directions.

This layout improves crosswind flexibility, but it also requires careful air traffic control because crossing runways cannot be used freely at the same time. That is why many modern mega airports now prefer parallel runway systems for higher capacity and smoother operations.

From a construction perspective, this type of airport requires precise runway paving, grading, drainage, lighting works, and regular maintenance supported by heavy machinery.

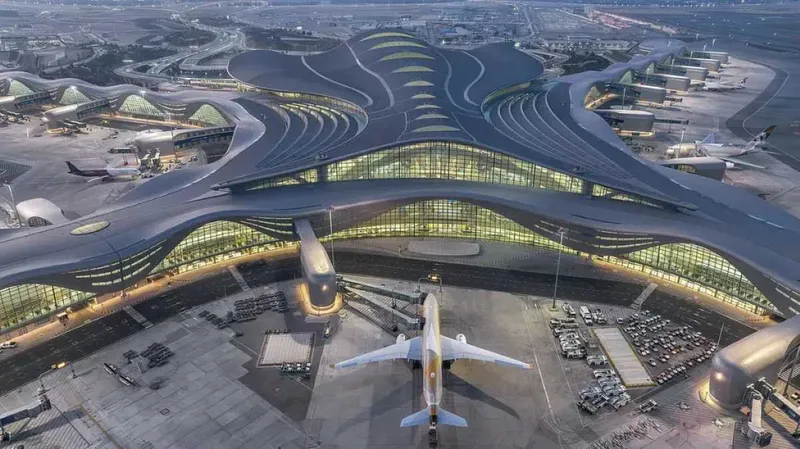

Zayed International Airport: An X-Shaped Terminal in the GCC

Zayed International Airport in Abu Dhabi is one of the strongest GCC examples of X-shaped airport design. Its Terminal A features a modified X-shaped plan, with four main piers extending from a central space to improve passenger flow, aircraft access, and operational efficiency.

Unlike X-shaped runway layouts, this design is focused on the terminal itself. The X shape helps shorten walking distances, organize gates more efficiently, and allow the building to serve many aircraft at the same time.

From a construction perspective, a terminal of this scale requires major heavy machinery work, including earthmoving, piling, lifting, steel erection, concrete works, road access construction, paving, and high-reach installation support.

GCC Mega Airports: Capacity Over X-Shaped Layouts

King Salman International Airport in Riyadh and Dubai Al Maktoum International Airport are strong GCC examples of how modern airport planning has moved beyond traditional X-shaped runway layouts. Instead of relying on intersecting runways, both projects are planned as large-scale aviation hubs focused on capacity, passenger flow, cargo operations, aircraft movement, and long-term expansion.

King Salman International Airport is planned as a massive airport city covering around 57 km², with six runways, six terminals, private aviation, cargo, logistics, and real estate zones. Dubai Al Maktoum International Airport is also being expanded with a future-ready multi-runway layout designed to support one of the world’s largest aviation hubs.

From a construction perspective, airports of this scale require major heavy machinery support, from excavators, bulldozers, graders, compactors, cranes, piling rigs, and dump trucks to runway paving, terminal foundations, utility works, access roads, and logistics infrastructure.

So, What Decides the Shape of an Airport?

Airport layout depends on several engineering and operational factors.

The first is wind direction. Runways are aligned according to prevailing winds to help aircraft take off and land safely.

The second is available land. Airports need huge open areas, not only for runways, but also for safety zones, taxiways, aprons, terminals, cargo facilities, parking, roads, metro connections, utilities, and future expansion.

The third is traffic demand. A small regional airport may operate with one runway, while a global hub needs multiple runways, wide taxiways, aircraft stands, maintenance zones, and cargo logistics areas.

The fourth is terrain and soil conditions. Desert airports, coastal airports, and mountain-region airports all require different construction methods. Soil stability, drainage, groundwater, heat, and settlement control can directly affect runway performance.

The fifth is future expansion. Modern airport masterplans are designed with decades of growth in mind. That is why airports like King Salman International Airport and Al Maktoum International Airport are planned as large aviation ecosystems, not just terminal buildings.

Where Heavy Machinery Comes Into the Story

Before an aircraft ever lands on a runway, heavy machinery has already shaped the airport.

Airport construction begins with large-scale earthworks. Excavators, bulldozers, wheel loaders, articulated dump trucks, graders, rollers, cranes, and piling rigs all work together to transform open land into a precise aviation platform.

For runway construction, the ground must be carefully prepared and compacted. Even small uneven areas can affect pavement performance over time. This is where soil compactors, graders, and paving equipment become critical.

For terminals and cargo buildings, cranes and lifting equipment are needed for structural steel, precast elements, roofing systems, and MEP installation. A piling rig may be required for deep foundations, especially in complex soil conditions.

For roads, aprons, taxiways, and logistics zones, contractors need fleets of excavators, dozers, loaders, dump trucks, and rollers to move, level, shape, and stabilize large volumes of material.

In short, airport construction is one of the clearest examples of why heavy machinery matters. The design may be drawn by planners and engineers, but it is built by machines on the ground.

Why Airport Projects Need Reliable Equipment Supply

Airport construction runs on strict timelines. Every delay in earthworks, paving, lifting, or access works can affect later phases. This is why contractors working on aviation infrastructure need more than machines. They need availability, operators, spare parts, service teams, and fast deployment.

This is where Al Marwan Machinery supports contractors across the UAE and GCC with heavy equipment rental and sales solutions for major infrastructure projects.

With one of the region’s largest heavy machinery fleets, trained operators for rentals, genuine spare parts, mobile workshops, and authorized dealership support for global brands of heavy machinery and attachments, Al Marwan helps contractors keep demanding projects moving on schedule.

FAQ

Why are some airports shaped like an X?

Some airports look like an X because their runways are built in different directions. This helps aircraft take off and land safely when wind direction changes.

Are X-shaped airports better?

Not always. X-shaped or intersecting runways can provide wind flexibility, but they can also create operational complexity. Modern large airports often prefer parallel runways because they support higher traffic capacity.

Is King Salman International Airport shaped like an X?

Based on official project information, King Salman International Airport is planned with six runways as part of a large airport city masterplan. Its focus is capacity, logistics, passenger movement, and future expansion rather than a traditional X-shaped layout.

Is Dubai Al Maktoum International Airport shaped like an X?

No. Al Maktoum International Airport is planned with five runways and a large terminal and aircraft stand system. The design is focused on becoming one of the world’s largest aviation hubs.

What heavy machinery is used to build airports?

Airport construction commonly uses excavators, bulldozers, articulated dump trucks, wheel loaders, graders, compactors, crawler cranes, piling rigs, and aerial work platforms.

Why is heavy equipment important in airport construction?

Airports require massive earthworks, precise grading, strong pavement layers, deep foundations, drainage networks, and large structural works. Heavy machinery makes these stages possible at the scale and accuracy required for aviation infrastructure.
