Why Hydraulic Oil Temperature Matters in Excavators

An excavator depends on hydraulic oil and hydraulic hoses to transfer power from its pumps to the boom, arm, bucket, swing motor, and travel motors. While oil level and cleanliness receive plenty of attention, hydraulic oil temperature is just as important.

Temperature extremes ruin hydraulic efficiency: cold oil struggles to circulate, and hot oil loses its protective viscosity. Maintaining the correct operating temperature is essential for smooth excavator performance, sustained power, and preventing premature wear.

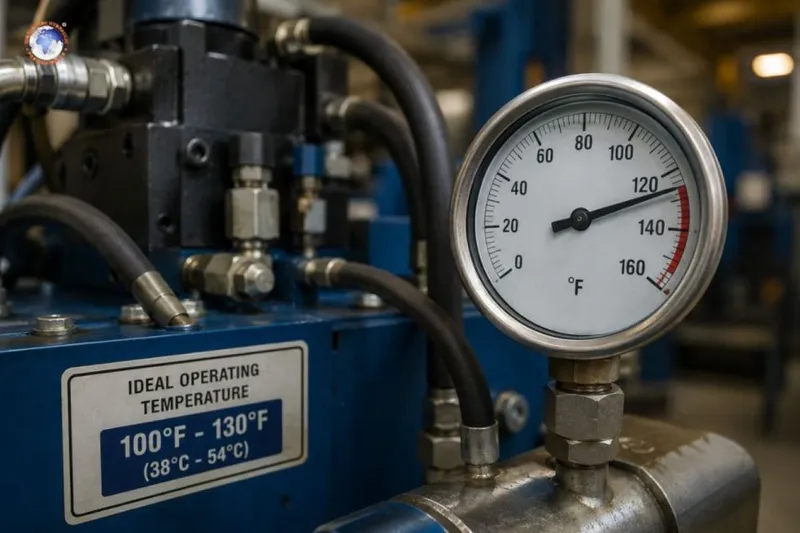

What Is a Normal Hydraulic Oil Temperature?

There is no single operating temperature that applies to every excavator, hydraulic fluid, and application. Operators should always follow the limits stated in the machine’s operation and maintenance manual.

As a useful reference, Caterpillar specifies that hydraulic oil should be warmed to approximately 55°C, with a tolerance of ±5°C, before certain hydraulic performance tests are conducted. This indicates the temperature range in which the oil can provide stable test results, rather than a universal maximum operating limit.

Modern excavators are designed to regulate heat through oil coolers, cooling fans, temperature sensors, and electronic control systems. Some Kobelco excavators use an independent oil-cooler fan that adjusts cooling more closely to hydraulic oil temperature.

What Happens When Hydraulic Oil Is Too Cold?

Hydraulic oil becomes more viscous as its temperature drops. In simple terms, it becomes thicker and flows more slowly.

Operating an excavator aggressively before the oil has warmed can lead to:

• Slower boom, arm, and bucket response
• Higher resistance inside hoses and filters
• Increased pump workload
• Cavitation or insufficient oil supply at the pump inlet
• Higher pressure losses
• Premature wear of pumps, seals, and valves

Right after startup, the controls will often feel sluggish. Pushing the excavator into heavy lifts or fast cycles immediately can severely stress the hydraulic system. Instead, always follow the manufacturer’s warm-up guidelines. Gently cycling the boom, arm, and bucket without a load will safely circulate the fluid before the heavy work begins.

What Happens When Hydraulic Oil Gets Too Hot?

As oil temperature rises, its viscosity falls. If the oil becomes too thin, it may no longer maintain a strong lubricating film between moving components.

High hydraulic oil temperature can result in:

Reduced Excavator Performance

Thin oil can pass more easily through internal clearances in pumps, valves, and motors. This internal leakage reduces hydraulic efficiency and may make the excavator feel slower or weaker, especially under load.

Faster Component Wear

Hydraulic oil lubricates precision parts operating under high pressure. Excessive heat can reduce film strength, increasing metal-to-metal contact and wear inside pumps, control valves, cylinders, and travel motors.

Seal and Hose Damage

Continuous exposure to excessive heat can harden seals, weaken hoses, and increase the likelihood of leaks. A small hydraulic leak may eventually lead to low oil levels, contamination, or machine downtime.

Accelerated Oil Degradation

Heat speeds up oxidation, causing the hydraulic oil to deteriorate. Degraded oil may become darker, develop an unusual smell, form deposits, and lose its ability to protect components.

Warning Alarms and Shutdowns

Modern excavators for sale in Dubai monitor operating temperatures through onboard sensors. When the hydraulic oil exceeds the programmed limit, the machine may display a warning, reduce performance, or require the operator to stop work and investigate the cause.

Why Does an Excavator Overheat?

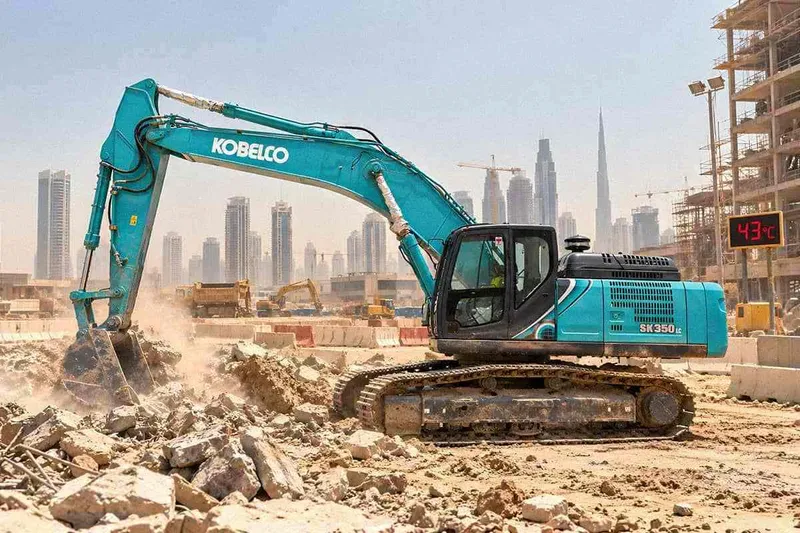

High ambient temperatures can contribute to the problem, particularly on UAE construction sites, but weather is rarely the only cause.

Common reasons include:

• A blocked hydraulic oil cooler
• Dust, sand, or debris restricting airflow
• A damaged or slow cooling fan
• Low hydraulic oil level
• Incorrect hydraulic oil viscosity
• A clogged return or pilot filter
• Internal leakage from a worn pump or valve
• Restricted hoses or hydraulic lines
• Continuous operation under excessive load
• Incorrect attachment flow or pressure settings

Hydraulic breakers also generate considerable heat. Caterpillar recommends repositioning a hammer every 15 to 30 seconds if the material does not break, because operating continuously in one spot can raise hydraulic temperature.

How to Prevent Hydraulic Oil Overheating

Operators should inspect the hydraulic oil level during the daily walkaround and look for visible leaks around hoses, cylinders, pumps, and connections.

The cooler and radiator should also be checked regularly. A thin layer of dust may appear harmless, but accumulated debris can restrict airflow and reduce heat transfer.

Other useful practices include:

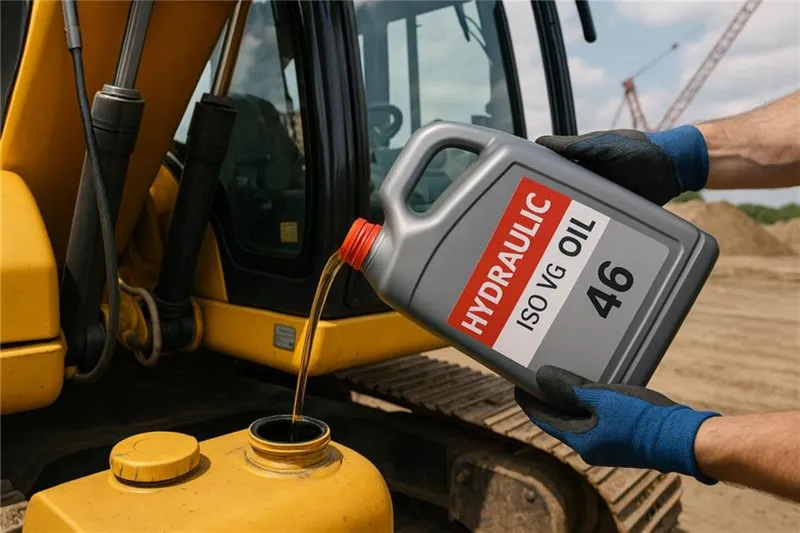

• Use the hydraulic oil grade specified by the manufacturer.
• Replace hydraulic filters at the recommended intervals.
• Keep cooler fins clean without damaging them.
• Check fan operation, belts, sensors, and wiring.
• Configure auxiliary flow correctly for each attachment.
• Avoid holding cylinders against full stroke unnecessarily.
• Investigate repeated temperature warnings rather than simply restarting the machine.
• Take an oil sample if overheating is accompanied by dark oil, contamination, unusual noise, or reduced hydraulic power.

When assessing an excavator price, buyers should consider more than machine size and engine power. Cooling capacity, hydraulic efficiency, maintenance support, operating environment, and attachment requirements can all influence lifetime cost.
