The Line Concrete Pump Vs. The Boom Concrete Pump Truck

Choosing the right concrete pumps can make or break your construction project, from pouring a foundation for a skyscraper to laying a driveway for a cozy home, picking between a line concrete pump and a boom concrete pump truck can make a real difference. Let’s get to know these two concrete pump warriors, their strengths, and which one fits your project like a glove.

The Line Concrete Pump Explained

The line concrete pump is a slender, agile machine that is capable of making  its way through tight spaces, deftly delivering concrete to areas that seem out of reach. They are often called the “plug-and-play” of the concrete world because of their simplicity and versatility.

How It Works

Line concrete pumps also known as concrete ground pumps consist of a long hose mounted on a trailer or truck. The hose can be extended with additional pipes, making it ideal for projects where you need precision and flexibility. These pumps are perfect for smaller-scale tasks, like:
- Residential foundations
- Sidewalks and driveways
- Swimming pools

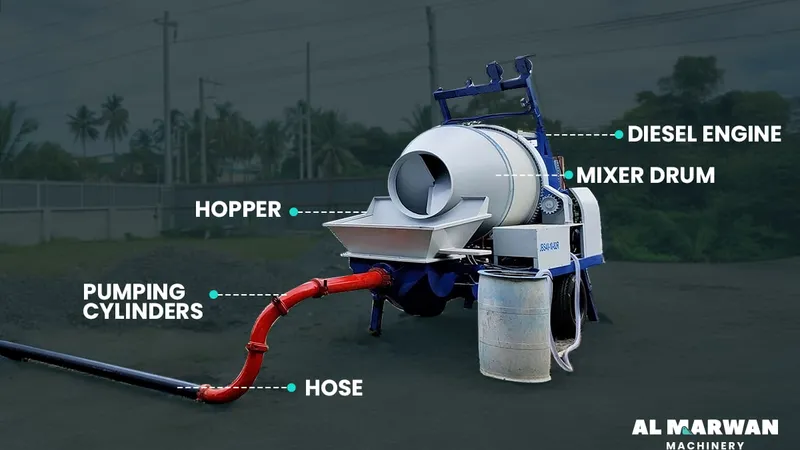

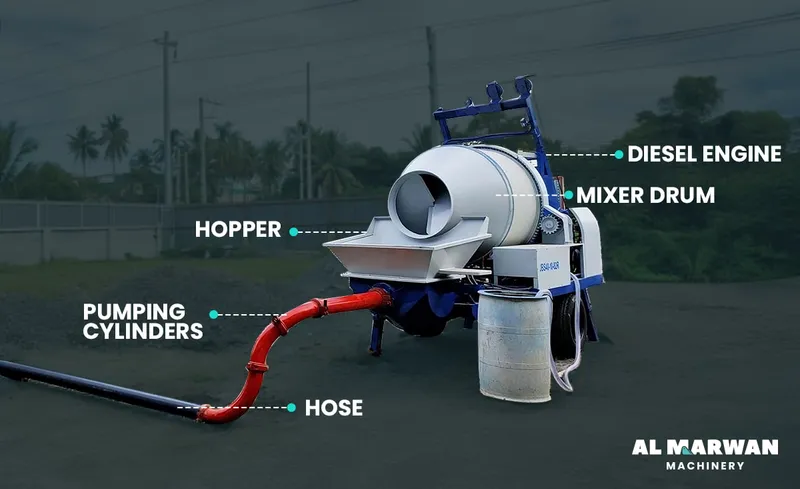

What are the main parts of line concrete pumps?

The concrete mix is loaded in the hopper and kept in motion by an agitator to prevent clumping. From there, the pumping cylinders work in tandem, one drawing concrete from the hopper while the other pushes it into the pipeline, creating a steady flow.

The concrete then travels through delivery pipes and flexible hoses, which can be extended to reach tight or difficult areas. Operators manage the entire process using the control panel, adjusting flow rates to match project requirements.

The hydraulic system provides the force needed for pumping, maintaining consistent pressure even over long distances or rough terrain. A diesel-powered engine ensures the pump operates reliably on-site.

Maintenance Tip
Regular cleaning of delivery pipes and hoses is vital to avoid blockages, especially in cold weather or when using thicker concrete mixes.

The Boom Concrete Pump Truck

When you picture a concrete pump truck with an arm reaching skyward like a mechanical giant, you’re thinking of the boom concrete pump. Designed for high-volume and high-altitude pours, this powerhouse is a must-have for large-scale projects.

How It Works

A boom concrete pump is mounted on a truck and equipped with a robotic arm (boom) that can be controlled to pour concrete with remarkable accuracy. So when choosing concrete pump trucks for sale, they excel in situations such as:
- High-rise buildings
- Bridges
- Large industrial complexes

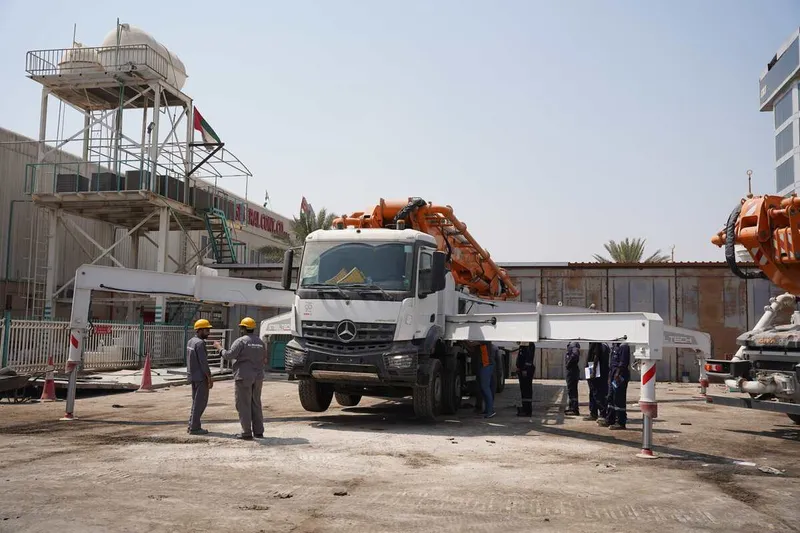

The Italian-made CIFA K42L and K56L boom concrete pumps are known for their automatic fold/unfold system and pumping capacity of 180 m3/hour, making them favorite models in Al Marwan Machinery lineup of CIFA concrete pumps.

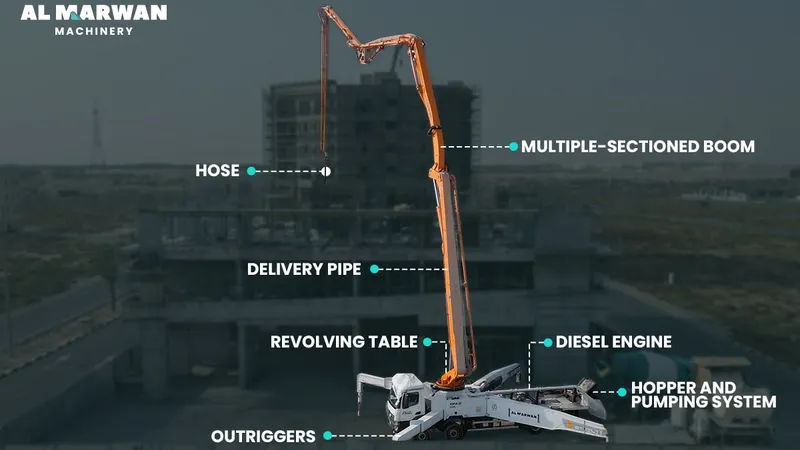

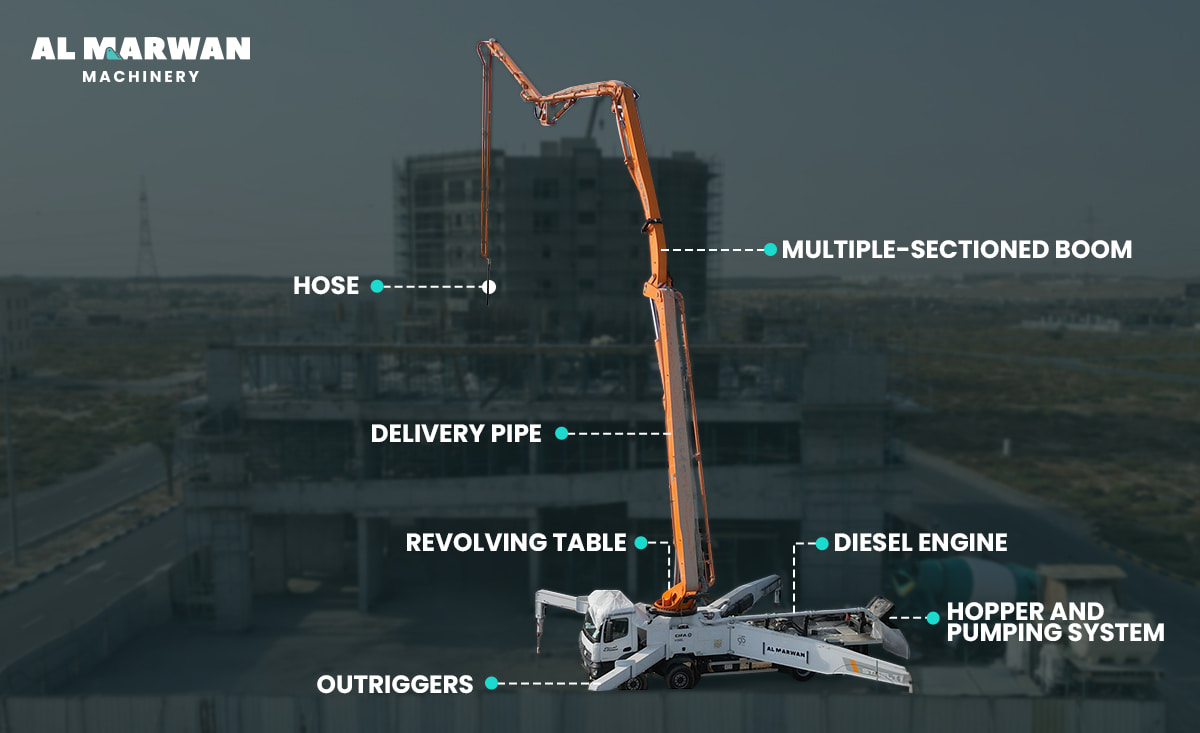

What are the system and parts forming boom concrete pumps?

The process begins at the hopper, where concrete is loaded and kept in motion by a high-capacity agitator. The pumping system, driven by hydraulic cylinders, pushes the concrete through the rotary distribution valve, ensuring a smooth and consistent flow.

What sets boom pumps apart is the boom arm - a multi-section arm that extends and maneuvers to place concrete exactly where it's needed, even at great heights or hard-to-reach areas. The hydraulic control system powers both the pumping action and boom movements, providing seamless operation.

For stability, outriggers extend to balance the pump truck, ensuring safety during operation. Operators manage the entire process using a control panel and remote control, allowing precise concrete placement. A powerful diesel engine, or in advanced models like the CIFA Energya K42E concrete pump, a hybrid power unit (diesel + electric), drives both the pump and hydraulic systems.

Maintenance Tip
The boom arm joints and hydraulic systems require regular lubrication and inspection to prevent wear and ensure smooth operation during long pours.

Line Concrete Pumps + Boom Concrete Pumps

Key Considerations for Both Models

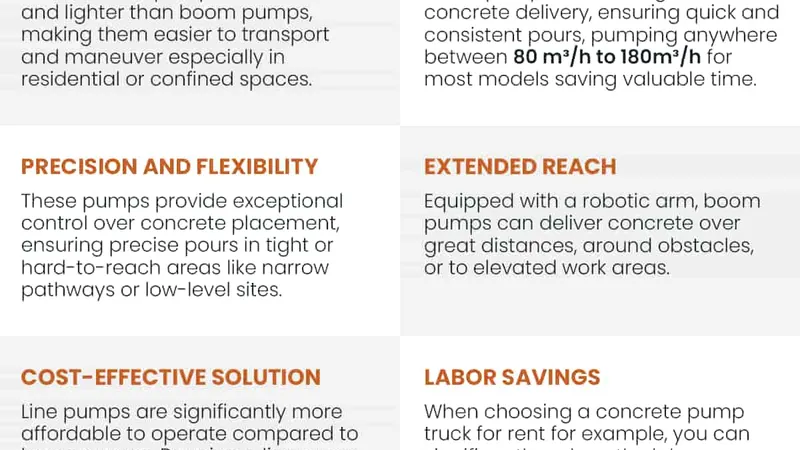

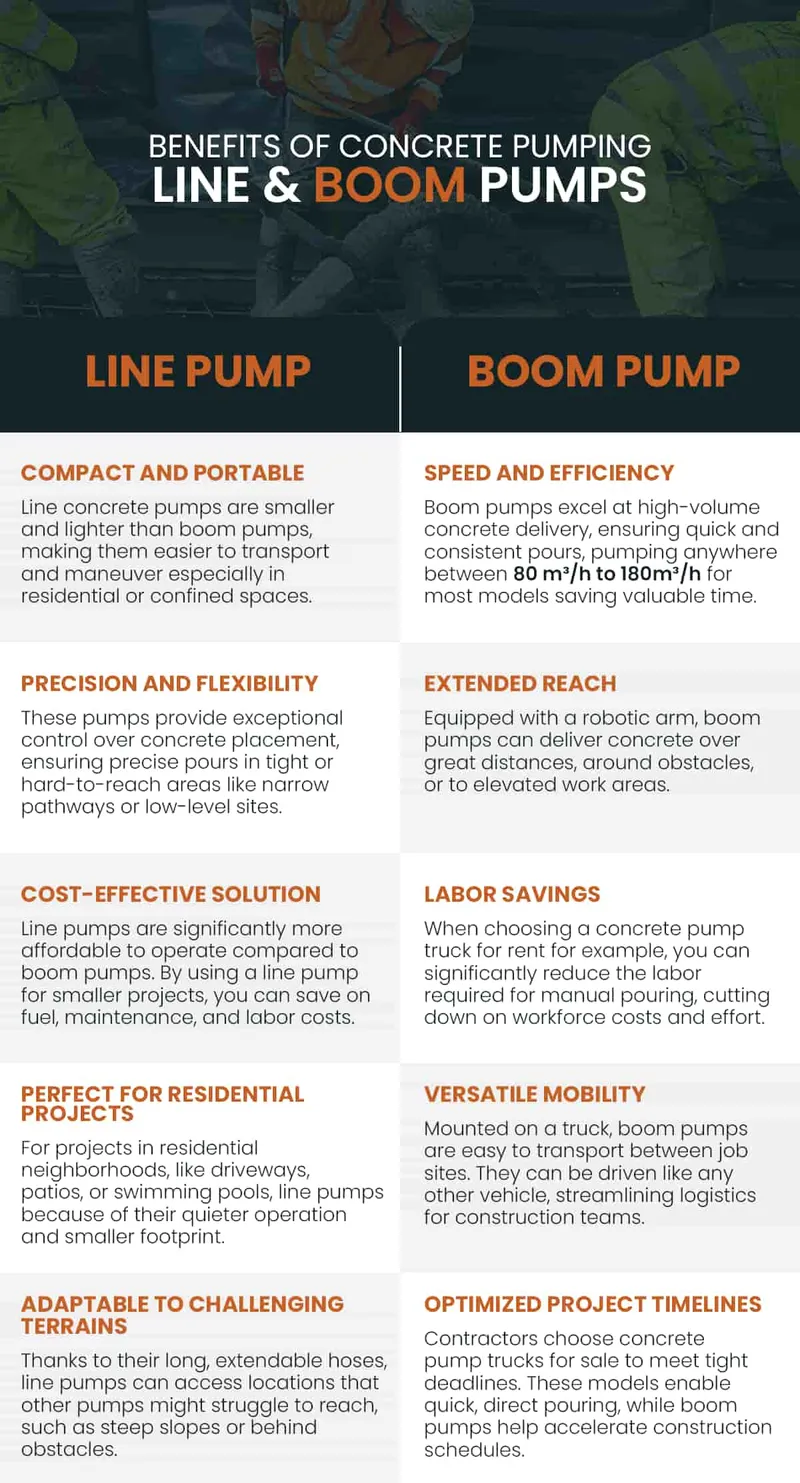

As you can see both line pumps and boom pumps come with advantages and challenges. Line concrete pumps offer flexibility and affordability, but they require careful handling to prevent blockages, especially in cold weather. Their lower output (40–70 m³/hour) means they might not be the best choice for high-volume projects.

But, boom concrete pumps provide high efficiency and reach, making them ideal for large-scale jobs. However, their size and weight require skilled operation to avoid site hazards or property damage. Additionally, higher operational and maintenance costs mean they are best suited for projects that fully utilize their capabilities.

If you're searching for a concrete pump for sale that matches your project scale, Al Marwan Machinery offers a range of CIFA high-performance models. Check out our selection to find the ideal concrete pump for your needs.

Line Concrete Pumps vs. Boom Concrete Pumps: Technical Features

Selecting between both types depends on the scale, complexity, and budget of your project. Line pumps offer affordability and flexibility, making them ideal for smaller, precise jobs, while boom pumps excel in high-volume, high-reach applications, streamlining large-scale construction.
