Excavator Dozer Blade: 5 Functions Every Operator Should Know

When most people look at an excavator, they focus on the boom, arm, bucket, digging depth, and lifting capacity. But on many compact, midi, and selected crawler excavators, the front dozer blade is one of the most practical features on site. It helps stabilize the machine, backfill trenches, level loose material, clean the work area, and support light shaping work.

This matters for contractors comparing an excavator for sale in Dubai, checking excavator price, reviewing excavator price in UAE, or deciding between buying and excavators for rent. A machine with a well-designed blade can sometimes reduce the need for an extra support machine on trenching, utility works, landscaping, road shoulders, and compact urban projects.

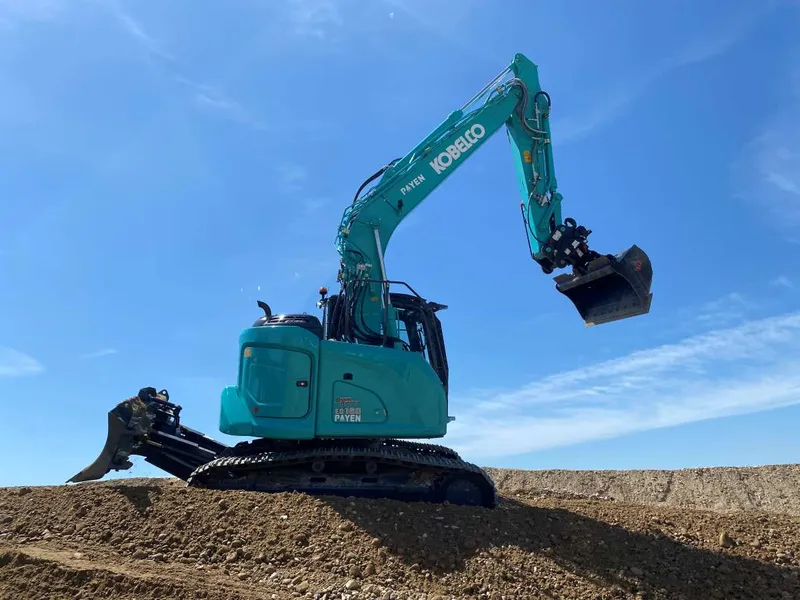

We previously explained in our blog that the blade is common on mini and midi excavators because of their various applications. Kobelco, for example, offers mini excavators in the 1 to 5.3 tonne class, where the blade supports stability and backfilling in tight areas. On the larger side, the Kobelco ED160BR-7 Blade Runner is a 16,800 kg class excavator equipped with a 6-way dozer blade, combining digging and dozing functions in one machine.

1. It Stabilizes the Excavator During Digging

The first function of the dozer blade is stability. When lowered firmly to the ground, the blade gives the excavator an additional contact point with the surface. This is especially useful when digging over the front of the machine, trenching in narrow spaces, or working on uneven ground.

On smaller excavators, lowering the blade reduces rocking during bucket breakout. This gives the operator better bucket control, cleaner trench lines, and more accurate digging depth. Even saving 3 to 5 seconds per digging cycle can add up. Over 200 cycles in one shift, that may save around 10 to 15 minutes of working time.

The blade also helps near road edges, villas, sidewalks, utility corridors, and landscaped areas where the excavator must stay controlled. However, operators should remember that the blade does not replace the machine’s rated lifting limits. The lifting chart, working radius, ground condition, and attachment weight must always be followed.

2. It Speeds Up Trench Backfilling

Backfilling is one of the clearest uses of an excavator dozer blade. After pipework, drainage lines, cables, or foundations are completed, the operator can use the blade to push loose material back into the trench instead of relying only on the bucket.

Without a blade, the operator usually pulls material with the bucket, swings, places it, and repeats the cycle. With a blade, material can be pushed forward in a more direct line. In a 30 to 50 meter utility trench, this helps move loose soil along the trench line before final leveling and compaction.

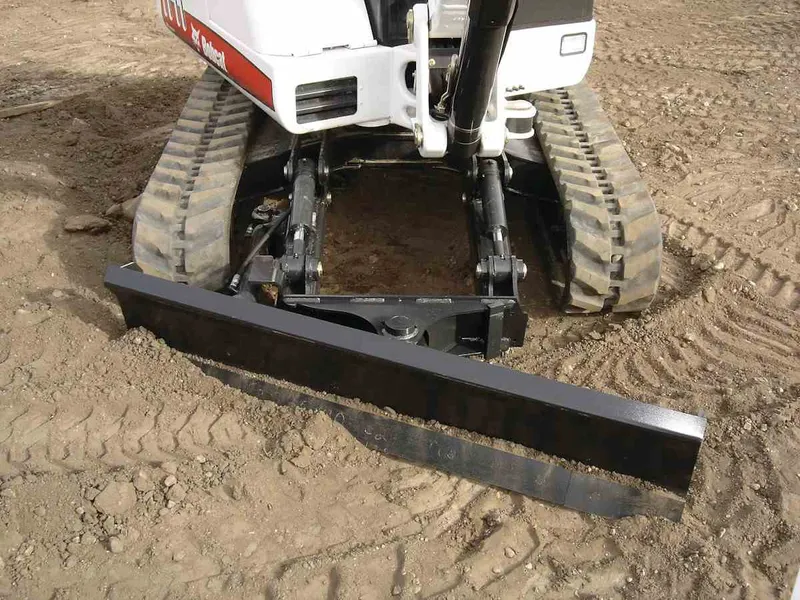

Blade type affects productivity. A straight blade pushes material forward. A 4-way blade can angle material to one side. A 6-way blade can lift, lower, angle, and tilt. On Kobelco ED160BR models, the Power Angle Tilt blade can be controlled from the cabin and angled left or right, helping the operator cast material away from the travel path.

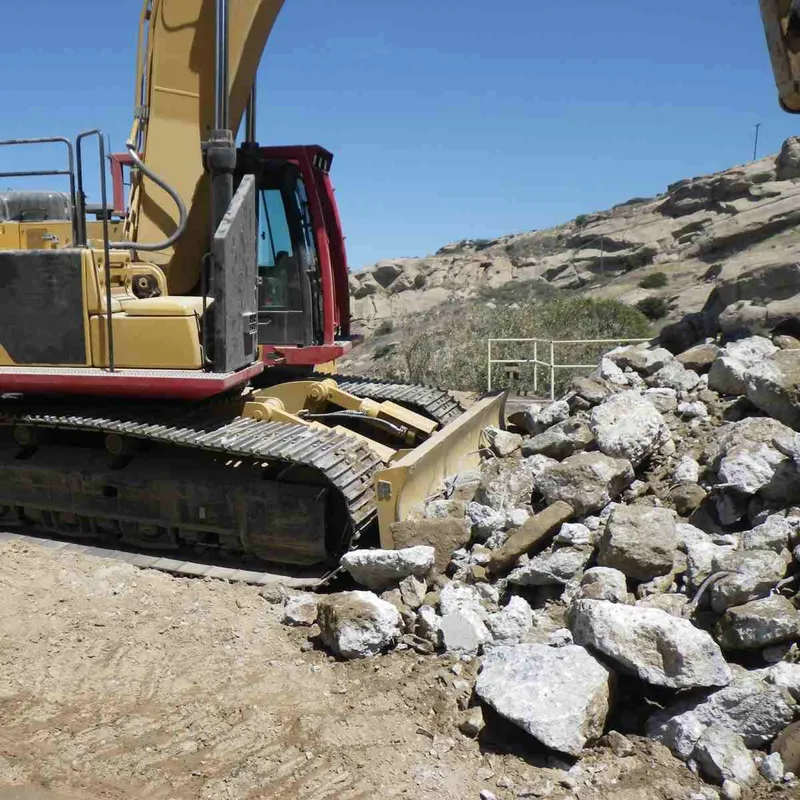

Still, the blade is not designed for long-distance bulk earthmoving. For heavy pushing over large areas, a bulldozer remains the better machine.

3. It Handles Rough Grading Before Final Finishing

A dozer blade also supports rough grading. After excavation, the ground often has loose soil, uneven gravel, disturbed backfill, or raised edges. The blade helps spread this material and create a more usable surface before compaction or final finishing.

This is not precision grading like a motor grader, but it is very useful for early-stage preparation. Operators can use the blade to level access paths, clean around foundations, smooth trench areas, prepare small pads, or spread gravel before compactors arrive.

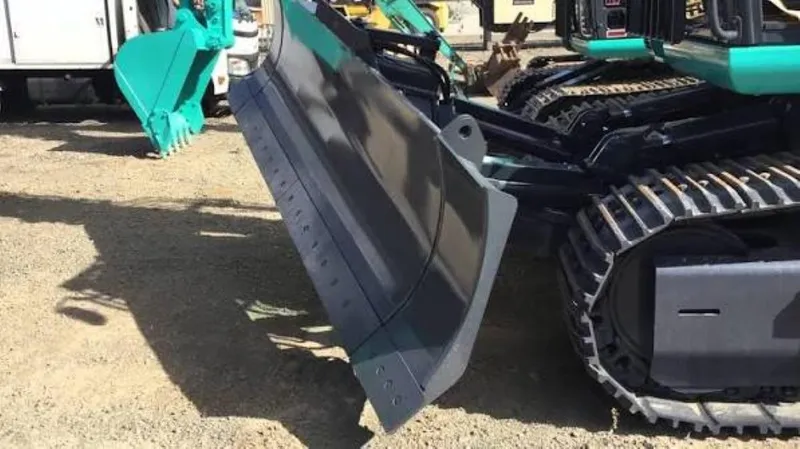

The Kobelco ED160BR-7 Blade Runner gives a good example of blade capability. Its 6-way blade is around 3,260 mm wide and 815 mm high. It can raise approximately 790 mm and lower around 600 mm, giving the operator a practical range for spreading, leveling, and shaping material. The machine also offers around 195 kN of drawbar pulling force for dozing and backfilling in suitable conditions.

Blade width is important. If the blade is narrower than the tracks, it may leave material behind. If it is too wide, maneuvering between walls, curbs, utilities, or trucks becomes harder. For compact jobsites in Dubai and the UAE, blade size can be just as important as bucket size.

4. It Keeps the Work Area Cleaner and Safer

Loose soil around an excavator can slow down the whole site. It can block truck access, reduce visibility, create trip hazards, and make it harder for compactors or loaders to move around. The dozer blade helps keep the work zone cleaner by pushing loose material away from the machine path.

This is useful in road maintenance, utility repair, landscaping, villa construction, and tight urban projects. For example, a Kobelco SK140SRLC excavator, with its compact-radius design, can work efficiently in confined areas where keeping the surrounding space clear is essential. If the excavator is digging beside a curb or trench, the blade can push spoil into a cleaner line. If trucks are entering and leaving the area, the blade can help clear the loading zone and reduce buildup around the tracks.

That is why many contractors inspect blade condition when checking excavators for rent or used excavators. A worn blade edge, leaking cylinder, loose pins, or damaged hoses can reduce performance. These machinery parts may look small, but they affect how smoothly the machine levels, pushes, and stabilizes.

5. It Helps With Light Slope Shaping and Site Preparation

The fifth function is light shaping. On machines with angled or tilting blades, operators can shape small slopes, drainage paths, trench edges, road shoulders, and access ramps. This is useful in projects where water flow and surface levels matter.

For example, if a work area needs a slight fall to direct water away from a foundation, the blade can help create the first rough profile. If a road shoulder needs cleaning after excavation, the blade can push and angle material toward the edge.

A 6-way blade gives the operator the most flexibility because it can angle material sideways and tilt to create a slope. Some blades can angle around 25 to 27 degrees left or right, depending on the model. This helps the excavator side-cast material and work more efficiently along trenches or shoulders.

This also helps when choosing the right machine. A standard excavator may be enough for digging and loading. A mini excavator with a blade may be better for trenching and backfilling. A long reach excavator for rent is better for canals, dredging, deep excavation, and slope trimming where extended reach matters more than blade use.

What to Check Before Using the Blade

Before using the blade, operators should inspect the parts connected to blade movement and stability. A damaged blade system can affect grading quality and machine safety.

Key checks include:

• Blade cutting edge, hydraulic cylinders, hoses, pins, bushings, mounting points, and visible cracks.
• Ground condition, blade response, machine position, working radius, attachment weight, and rated lifting limits.

These checks are simple but important. A loose blade pin can create vibration. A worn cutting edge can make grading uneven. A leaking hydraulic cylinder can reduce blade control. Reliable machinery parts and regular maintenance help keep the excavator productive, especially in rental fleets and high-use construction sites.

Need an Excavator That Does More on Site?

From trenching and backfilling to grading and site cleanup, the right excavator can help your team work faster with fewer support machines. Al Marwan Machinery offers a wide range of excavators for sale and rent in the UAE, including Kobelco excavator models built for demanding construction, infrastructure, and earthmoving projects.

Whether you are comparing excavator price in UAE, looking for an excavator for sale in Dubai, or searching for excavators for rent, our team can help you choose the right machine for your jobsite. We also support your fleet with reliable after-sales service and genuine machinery parts to keep your equipment working efficiently.

Contact Al Marwan Machinery today to explore available excavators and find the right solution for your next project.

FAQ

What is the purpose of a dozer blade on an excavator?

A dozer blade helps stabilize the excavator during digging, especially when working over the front of the machine. It is also used for backfilling trenches, rough grading, clearing loose material, and light site preparation.

Can an excavator dozer blade replace a bulldozer?

No. An excavator dozer blade is useful for light to medium pushing, grading, and cleanup, but it is not designed for heavy bulk earthmoving over long distances. For large-scale pushing and major earthmoving works, a bulldozer is still the better choice.

Does the dozer blade affect excavator price?

Yes, it can. Excavator price depends on many factors, including brand, model, operating weight, year, working hours, hydraulic condition, undercarriage condition, attachments, and blade type. A machine with a well-maintained or advanced blade may offer higher practical value on site.

Is a blade useful on excavators for rent?

Yes. For short-term trenching, utility works, landscaping, and compact site projects, excavators for rent with a dozer blade can improve productivity. The blade helps operators backfill, clean, and level the work area without always needing another support machine.
